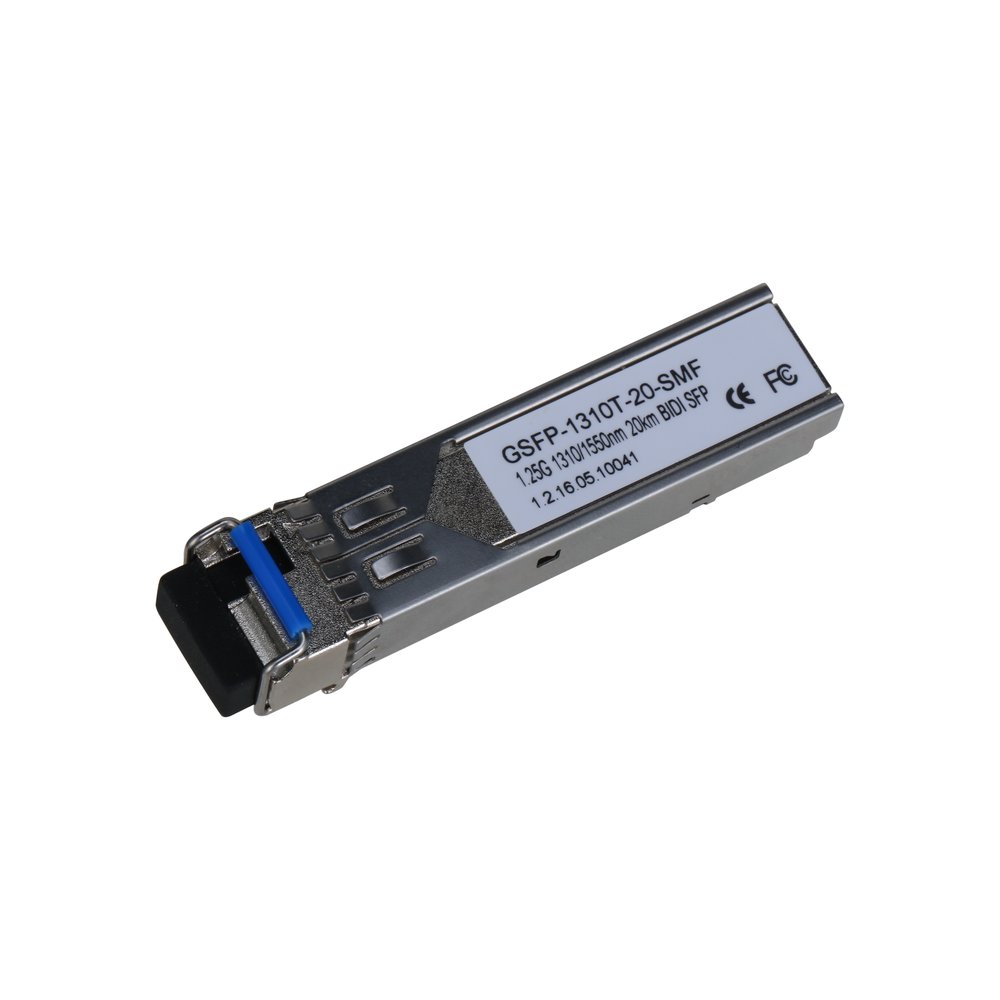

Modulo ottico SFP, velocità 1 Gbps, portata 20 km, trasmissione a 1310 nm, ricezione a 1550 nm, attacco LC
Datasheet
Manuali
| Hardware | |
| Optical Fiber Type | Single mode single fiber |
| Optical Port Type | LC |
| Speed | 1 Gbps |
| Performance | |
| Wavelength | 1310 nm sending; 1550 nm receiving |
| Transmission Distance | 20 km |
| Relative Humidity | 5%–95% |
| Operating Temperature | –40 °C to +85 °C (–40 °F to 185 °F) |
| Storage Temperature | –40–85 °C |
| Max. Speed of Optical Port | 1 Gbps |
| Product Dimensions | 55.5 mm × 13.4 mm × 8.5 mm (2.20" × 0.53" × 0.33") Pictures in the document are for reference only, and the actual product shall prevail. |
| Ordering Information | |
| Type | Model Description Speed 1Gbps Single mode double fiber; GSFP-1310-20-SMF 1310 nm sending, and 1310 nm receiving; Transmission distance up to 20 km Speed 1Gbps GSFP-1310R-20- Single mode single fiber; SMF 1550 nm sending, and 1310 nm receiving; Transmission distance up to 20 km Speed 1Gbps GSFP-1310T-20- Single mode single fiber; SMF 1310 nm sending, and 1550 nm receiving; Transmission distance up to 20 km Speed 100Mbps Single mode single fiber; SFP-1310T-20-SMF 1310 nm sending, and 1550 nm receiving; Transmission distance up to 20 km Speed 100Mbps Single mode single fiber; SFP-1310R-20-SMF 1550 nm sending, and 1310 nm receiving; Transmission distance up to 20 km |
