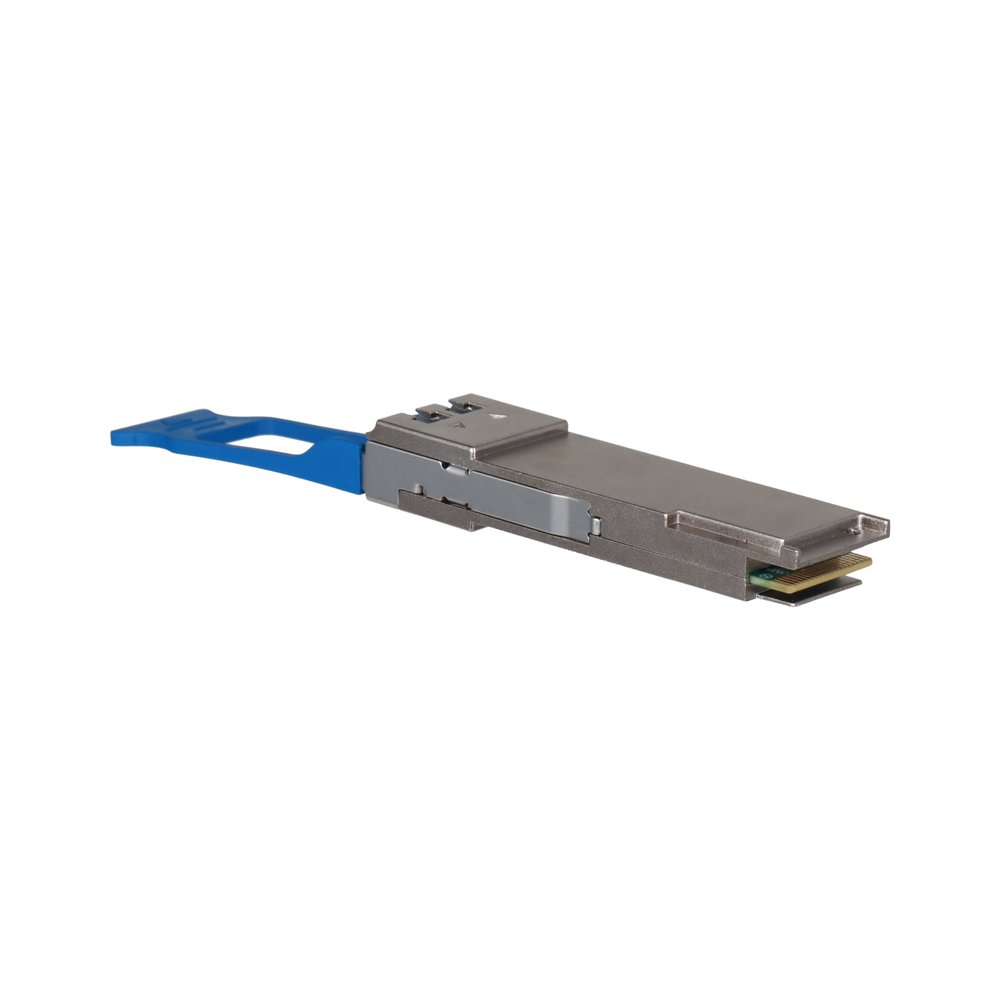

Modulo ottico QSFP a doppia fibra, velocità 40 Gbps, portata 10 km, trasmissione e ricezione a 1310 nm, attacco LC
Datasheet
Manuali
| Hardware | |
| Optical Fiber Type | Single mode double fiber |
| Optical Port Type | LC |
| Speed | 40 Gbps |
| Performance | |
| Wavelength | 1310 nm |
| Transmission Distance | 10 km (6.21 mi) |
| Storage Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Operating Humidity | 0%-85% (RH), non-condensing |
| Operating Temperature | 0 °C to +55 °C (32 °F to +131 °F) |
| Storage Humidity | 0%-85% (RH), non-condensing |
| Product Dimensions | 120 mm × 18.35 mm × 8.5 mm (4.72" × 0.72" × 0.33") |
| Ordering Information | |
| Type | Model Description Speed 1Gbps Single mode double fiber; GSFP-1310-20-SMF 1310 nm sending, and 1310 nm receiving; Transmission distance up to 20 km Speed 1Gbps GSFP-1310R-20- Single mode single fiber; SMF 1550 nm sending, and 1310 nm receiving; Transmission distance up to 20 km Speed 1Gbps Single mode single fiber; GSFP-1310T-20-SMF 1310 nm sending, and 1550 nm receiving; Transmission distance up to 20 km Speed 100Mbps Single mode single fiber; SFP-1310T-20-SMF 1310 nm sending, and 1550 nm receiving; Transmission distance up to 20 km Speed 100Mbps Single mode single fiber; SFP-1310R-20-SMF 1550 nm sending, and 1310 nm receiving; Transmission distance up to 20 km |
| Dimensions (Mm[Inch]) | |
| 120.0 [4.72] | 18.3 [0.72] 8.5 [0.33] |
