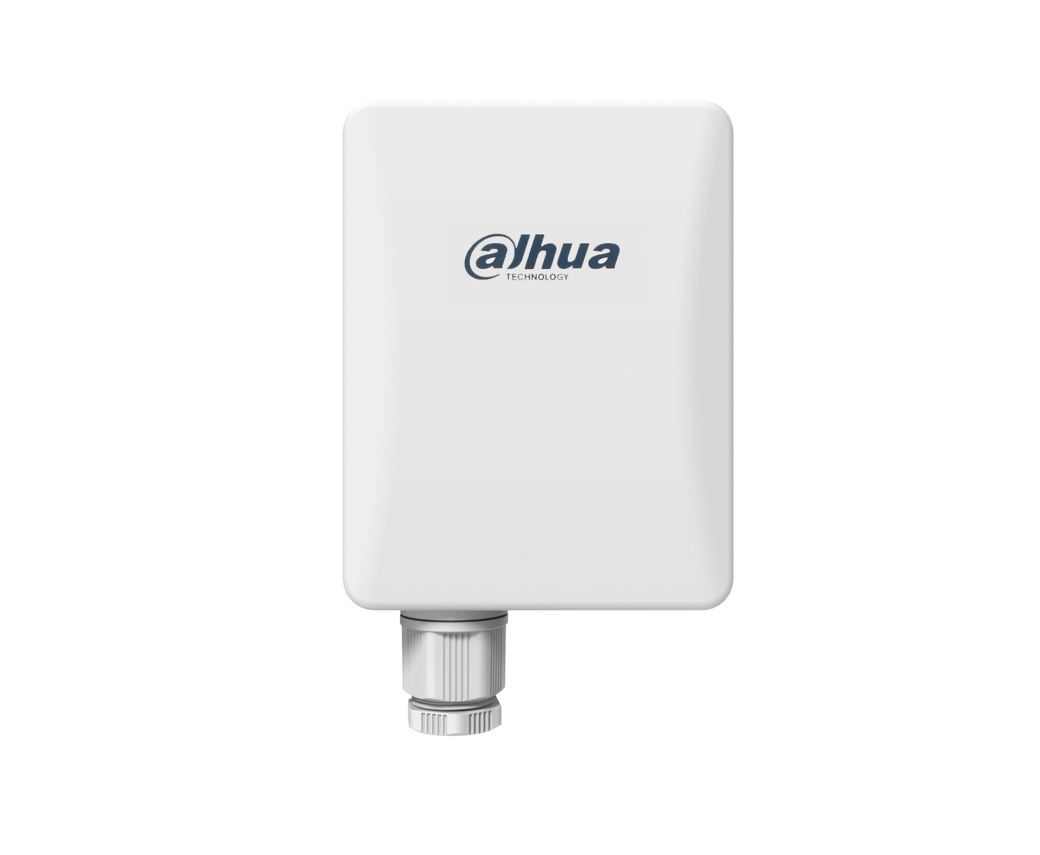

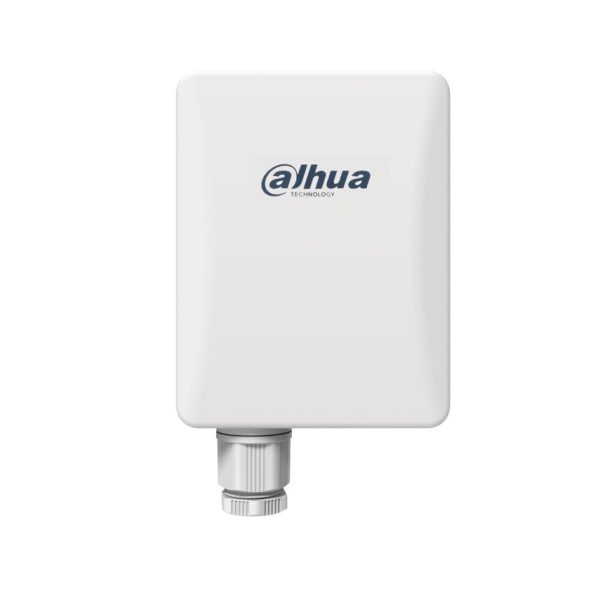

CPE ponte radio Wi-Fi 5G da esterno IP66, portata ottimale 3 km, frequenza operativa 5150~5850 GHz, 867 Mbps, antenna 15 dBi, standard WLAN a/n/ac, 1 porta Gigabit Ethernet, alimentazione da PoE passivo 12/24 Vdc/100~240 Vac <10 W
Datasheet
Manuali
| Hardware | |
| Sold in Pairs | Yes |
| Function Slots | 1 × RJ-45 10/100/1000 Base-T |
| Power Supply | 100 – 240 VAC |
| Power Consumption | Full load: 10 W |
| Memory | DDR 64 MB 1 × PWR light |
| Indicator Light | 1 × LAN light 4 × RSSI LEDS |
| Performance | |
| Wireless Standard | 5 GHz 802.11a/n/ac 5.150 – 5.850 GHz (FCC 5.150 – 5.250 and 5.725 – 5.850 |
| Operating Frequency | GHz) 802.11 ac@40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps; |
| Wireless Transmission Rate | 802.11 ac@80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps |
| Channel Width | 5/10/20/40/80 MHz CE EIRP: ≤23 dBm@5150-5250 MHz; ≤23 dBm@5250-5350 MHz; ≤27 dBm@5470-5725 MHz; ≤14 dBm@5725-5850 MHz |
| Max. Output Power | FCC output power: ≤24 dBm@5150-5250 MHz; ≤24 dBm@5250-5350 MHz; ≤24 dBm@5470-5725 MHz; ≤30 dBm@5725-5850 MHz |
| Antenna Direction Angle | Horizontal: 35°, vertical: 35° |
| Transmission Distance | 3000 m (9842.52 ft) PoE In: 24 V/0.5 A |
| PoE | PoE Out: NA |
| Function | |
| Operating Mode | TDMA2/TDMA4)/Station (ARPNAT) |
| Equipment Management | WEB |
| Protection Mode | WPA/WPA2-Personal; WPA/WPA2-Enterprise |
| Security Mechanism | ACL; user isolation |
| OFDMA | Yes |
| MU-MIMO | 2 × 2 |
| DFS | Yes |
| DHCP | Yes |
| Firmware Update | Web update DHCP server; SNMP server; NTP client; router |
| Software | advertisement daemon; ping watchdog |
| General | |
| Operating Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Storage Temperature | –40 °C to +85 °C (–40 °F to +185 °F) 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
| Operating Humidity | 0%–90% (RH), non-condensing |
| Net Weight | 0.2 kg (0.44 lb) |
| Gross Weight | 0.4 kg (0.88 lb) 130 mm × 97 mm × 37 mm (5.11" × 3.81" × 1.45") (L × |
| Product Dimensions | W × H) 174 mm × 135 mm × 80 mm (6.85" × 5.31" × 3.14") (L × |
| Packaging Dimensions | W × H) |
| Protection | IP65 |
| Installation | Bracket mount |
| Certifications | |
| Packing List | 1 × Power Cord; 1 × 24 V PoE Power Adapter; 1 × Quick Start Guide |
| Ordering Information | |
| Type | Model Description |
| Wireless Transmission | V-Radio Outdoor 11ac 5G DH-PFWB5-30ac |
| Device | Wireless Bridge (CPE) |
