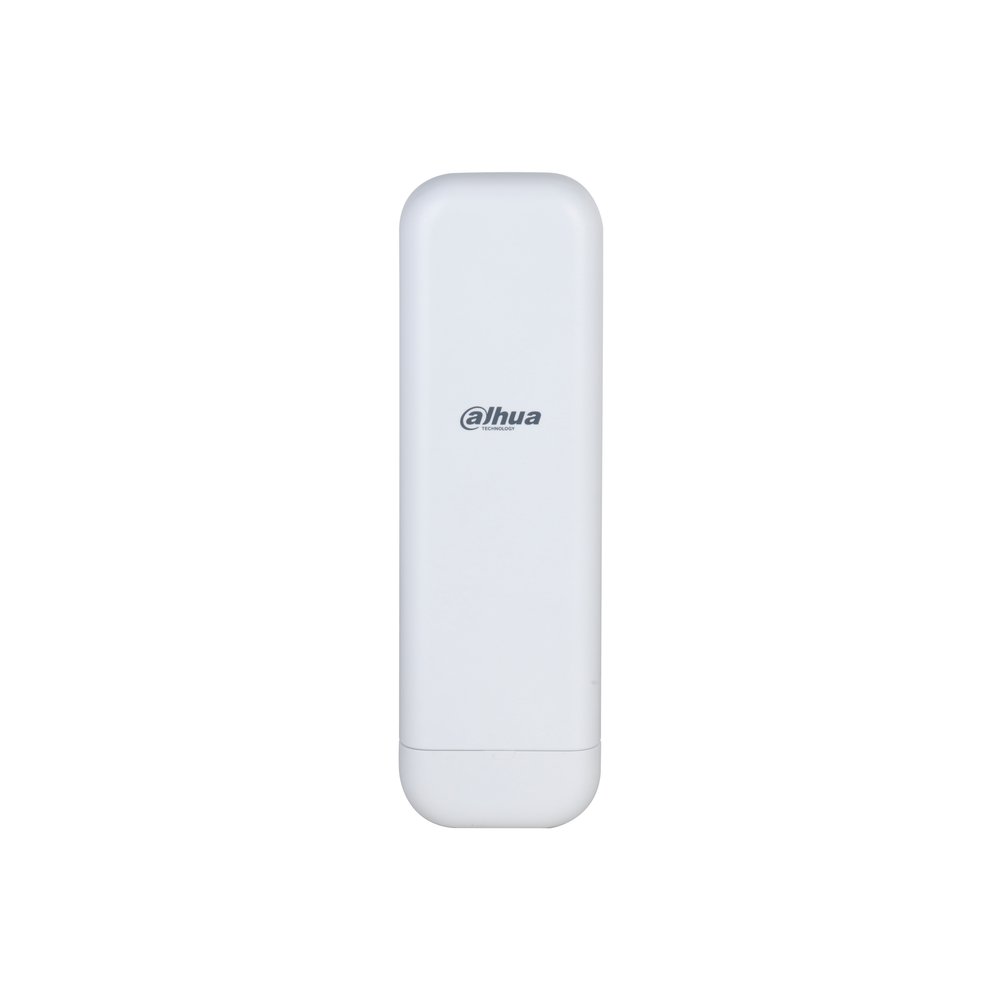

Coppia di ponti radio Wi-Fi 2.4/5G IP65, portata ottimale 3 km, max banda 867 Mbps, 802.11a/b/g/n/ac, 1 porta Gigabit 10/100/1000 Mbps PoE IN, 1 porta 10/100 Mbps PoE OUT, alimentazione PoE
Datasheet
Manuali
| Hardware | |
| Sold in Pairs | Yes LAN 2: 1 × RJ-45 10/100/1000 Mbps(PoE In); |
| Function Slots | LAN 1: 1 × RJ-45 10/100 Mbps(PoE Out) |
| Power Supply | PoE(802.3 af/at) |
| Power Consumption | < 30 W |
| Antenna | IPEX |
| Memory | DDR 128 MB 1 × Power indicator; 2 × LAN port indicators; |
| Indicator Light | 1 × PoE indicator; 3 × Wireless signal strength indicators 2 × RJ–45; |
| External Port | 1 × Reset |
| Performance | |
| Wireless Standard | 5 GHz: 802.11a/n/ac |
| Recommended Video | 10-ch 4-MP IPC |
| Channels | 2.4 GHz: 2.412 GHz–2.472 GHz; |
| Operating Frequency | 5 GHz: 5.15 GHz–5.25 GHz; 5.735 GHz–5.835 GHz 2.4 GHz:300 Mbps; |
| Wireless Transmission Rate | 5 GHz:867 Mbps |
| Channel Width | 20/40/80 MHz |
| Max. Output Power | 21 dBm + 12dBi |
| Antenna Direction Angle | Horizontal: 45°, vertical: 20° |
| Receiver Sensitivity | –96 dBm@11a_20M_6M |
| Polarization | Vertical/horizontal |
| Transmission Distance | 3 km (9,842.52 ft) |
| Connected Wireless | 8 |
| Terminals | PoE In: 802.3af/at(15W/30W); |
| PoE | PoE Out: 802.3af(15W) |
| Function | |
| Operating Mode | AP; STA Web management; |
| Equipment Management | App management |
| Network Protocol | HTTPS;IPv4;UDP;NTP;DHCP;TCP |
| Protection Mode | WPA-PSK/AES/TKIP |
| Security Mechanism | WPA/WPA2; hidden SSID |
| DHCP | Yes |
| Firmware Update | Web update;ConfigTool;App update Device Management: wireless bridge configuration on the app through WLAN; local web management; cloud |
| Software | management (cloud web and app); quick configuration guide; scanning code to add; Wi-Fi hotspot access cloud; |
| Software | management; working mode selection (access point/ client); hide SSID (only access point); wireless output power adjustment; channel selection and channel width configuration; Protection mode configuration (non- encrypted and WPA2-PSK; wireless frame segmentation and aggregation |
| General | |
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Storage Temperature | –40 °C to +80 °C (–40 °F to +176 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Net Weight | 0.74 kg (1.63 lb) |
| Gross Weight | 2.095 kg (4.62 lb) 268 mm × 82 mm × 35 mm (10.55" × 3.23" × 1.38") (L × |
| Product Dimensions | W × H) 312 mm × 205 mm × 136 mm (12.28" × 8.07" × 5.35") |
| Packaging Dimensions | (L × W × H) |
| Protection | IP65 Air discharge: 15 kV; |
| Statics Protection | Contact discharge: 8 kV Common mode: 6 kV; |
| Lightning Protection | Differential mode: 4 kV |
| Installation | Pole mount |
| Certifications | |
| Packing List | 2 × Antenna adjustment bracket; 2 × Mounting bracket; 1 × Quick start guide; 1 × Legal and regulatory information |
| Ordering Information | |
| Type | Model Description |
| WirelessBridge | DH-WBK5-45AC-03P Wireless Bridge |
