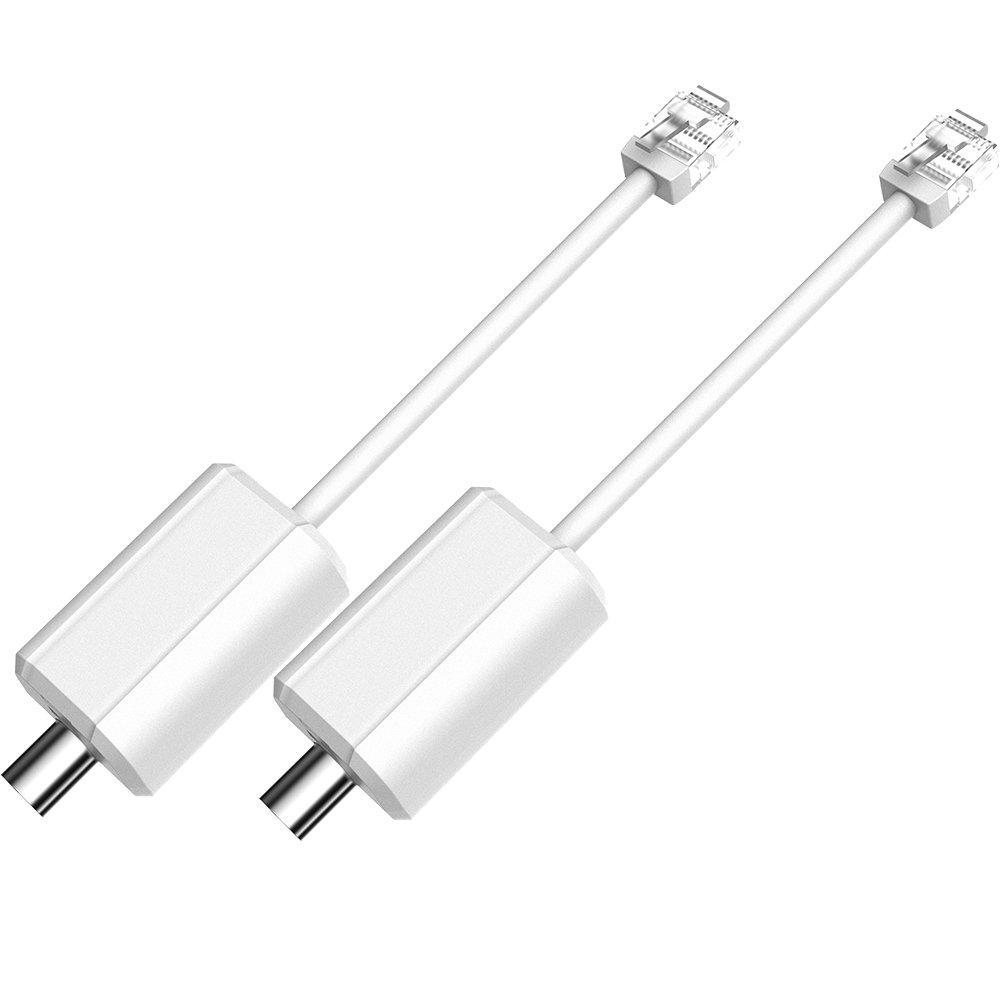

Coppia di Extender Ethernet over Coax (trasmettitore e ricevitore), 1 porta RJ-45 10/100 Mbps e 1 porta BNC (cad.)
Datasheet
Manuali
| Model | LR1002 1*10/100 Mbps Base-TX |
| Function Port | 1*BNC |
| Power Consumption | <1W RG59 coaxial cable: |
| Transmission Bandwidth | 400m/100Mbps, 1000m/10Mbps – |
| PoE Protocol | (Based on the power input from the ePoE switch) |
| Network Standard | IEEE802.3, IEEE802.3u Common Mode 6KV |
| Lightning Protection | Differential Mode 2KV |
| Operating Temperature | -40°C-60°C |
| Operating Humidity | 0%~95% |
| Weight | 28.3g |
| Dimension (W×D×H) | 56mm×27mm×21mm |
| Diagram | |
| ePoE Switch | ePoE IPC |
| Network | |
| Cable Length (m) | Load Capacity |
| Operating | |
| 100 | 100 25.5 50 IEEE/E100 |
| 200 | 100 25.5 30 E100 |
| 300 | 100 18 18 E100 |
| 400 | 100 15 15 E100 |
| 500 | 10 12 12 E10 |
| 800 | 10 6 6 E10 |
| 1000 | 10 5 5 E10 |
| 100 | 100 25.5 52 IEEE/E100 |
| 200 | 100 25.5 48 E100 |
| 300 | 100 25.5 30 E100 |
| 400 | 100 20 23 E100 |
| 500 | 10 16 16 E10 |
| 800 | 10 10 10 E10 |
| 1000 | 10 8 8 E10 |
