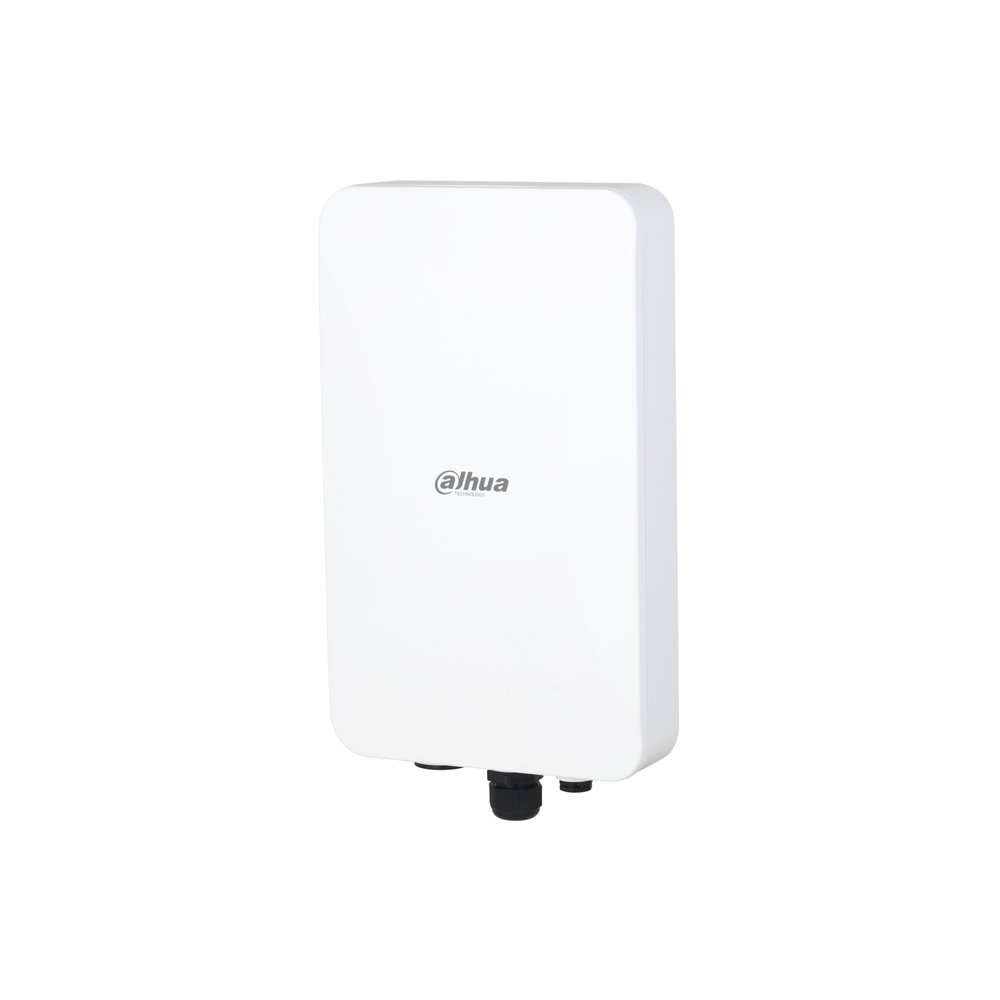

Access point wireless 6th gen dual band 2.4/5 G da esterno IP67, velocità 3000 Mbps, 1 porta Gigabit 10/100/1000 Mbps (LAN) 10/100/1000/2500 Mbps (WAN, PoE in) <16 W, tecnologia MU-MIMO, guadagno antenna 6 dBi, alimentazione PoE, installazione a palo (consigliata) / parete
Datasheet
Manuali
| Basic | |
| Device Type | AP |
| Hardware | |
| WAN Port | 1 × RJ-45 10/100/1000/2500 Mbps (PoE In) |
| LAN Port | 1 × RJ-45 10/100/1000 Mbps 802.3 af PoE |
| Power Supply | 802.3 at PoE |
| Antenna Type | Omnidirectional 2.4 GHz: 2 × 3.5 dBi |
| Built-in Antenna | 5 GHz: 2 × 6 dBi |
| Memory | DDR: 512 MB 1 × PWR 1 × SYS |
| Indicator Light | 4 × WAN 1 × 2.4G 1 × 5G |
| External Port | 1 × Console |
| Performance | |
| Wireless Standard | 5 GHz: IEEE 802.11a/n/ac/ax 2.4 GHz: 574 Mbps |
| Wireless Transmission Rate | 5 GHz: 2402 Mbps 2.4 GHz–2.484 GHz |
| Operating Frequency | 5.150 GHz–5.850 GHz 2.4 GHz: 20/40/80 MHz |
| Channel Width | 5 GHz: 20/40/80/160 MHz |
| 2.4 GHz Antenna Gain | 3.5 dBi |
| 5 GHz Antenna Gain | 6 dBi CE EIRP: ≤20 dBm@2400-2483.5 MHz ≤23 dBm@5150-5250 MHz |
| Max. Output Power | ≤23 dBm@5250-5350 MHz ≤27 dBm@5470-5725 MHz ≤14 dBm@5725-5850 MHz |
| 2.4 GHz Max Power Output | 26 dBm |
| 5 GHz Max Power Output | 25 dBm 11ac VHT20_MCS0:-88 dBm 11ac VHT20_MCS8:-67 dBm 11ac VHT40_MCS0:-88 dBm 11ac VHT40_MCS7:-64 dBm |
| Receiver Sensitivity | 11ax HE20_MCS0:-88 dBm 11ax HE20_MCS11:-61 dBm 11ax HE40_MCS0:-88 dBm 11ax HE40_MCS11:-58 dBm |
| Max. Transmission Distance | 100 m (328.08 ft) |
| Optimal Transmission | 80 m (262.47 ft) |
| Distance | 2.4 GHz: 4 |
| SSID Number | 5 GHz: 4 |
| Connected Wireless | 2.4 GHz: 64 |
| Terminals | 5 GHz: 64 |
| PoE | PoE In: 802.3af/at (15 W/30 W) |
| Function | |
| Equipment Management | Web; platform; app TCP/IP;IPv4;UDP;NTP;DHCP;DNS;QoS;ICMP;ARP;IP |
| Network Protocol | Filter;TCP;SMB;NFS;MQTT;802.11k;802.11v;802.11e;W MM;IGMP V3 FIT AP |
| Operating Mode | FAT AP Gateway mode No Encryption |
| Encryption Mode | WPA/WPA2PSK; WPA2/WPA3PSK |
| Firmware Update | Web update;Cloud update |
| Security Mechanism | IP address filtering; MAC address filtering |
| OFDMA | Yes |
| MU-MIMO | Yes |
| Beamforming | Yes |
| TWT | No |
| DHCP | Yes (under gateway mode) |
| NAT | Yes (under gateway mode) |
| QoS | Yes |
| DDNS | No |
| Wireless Repeater | No |
| MESH | No Device Management: setup wizard; network connection method; back up/restore configuration; restore factory defaults; schedule restart; system logs; change password; firmware upgrade; system time; fat/fit mode self-adaptation; cloud platform configuration |
| Software | AP Management: SSID configuration; VLAN ID configuration; frequency configuration; country/region configuration; 5G-Prior access configuration; scheduled Wi-Fi shutdown Client Management: MAC ACL; user isolation; limit users that can access |
| General | |
| Power Consumption | Idling: 5.6 W |
| Operating Temperature | –20 °C to +55 °C (–4 °F to +131 °F) |
| Storage Temperature | –40 °C to +70 °C (-40 °F to +158 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Net Weight | 1.06 kg (2.34 lb) |
| Gross Weight | 1.62 kg (3.57 lb) 304 mm × 230 mm × 107 mm (11.97" × 9.06" × 4.01") |
| Product Dimensions | (L × W × H) 380 mm × 230 mm × 107 mm (14.96" × 9.06" × 4.01") |
| Packaging Dimensions | (L × W × H) |
| Protection | IP65 Air discharge: 8 kV |
| Statics Protection | Contact discharge: 6 kV |
| Lightning Protection | Differential mode: 2 kV Pole mount (recommended) |
| Installation | Wall mount (might affect signal coverage) |
| Certifications | |
| Packing List | 1 × PoE Adapter 1 × Quick Start Guide 1 × Legal and Regulatory Information 1 × Bracket |
| Ordering Information | |
| Type | Model Description |
| Wireless Access Point | DH-EAP6230-O Wireless Access Point |
