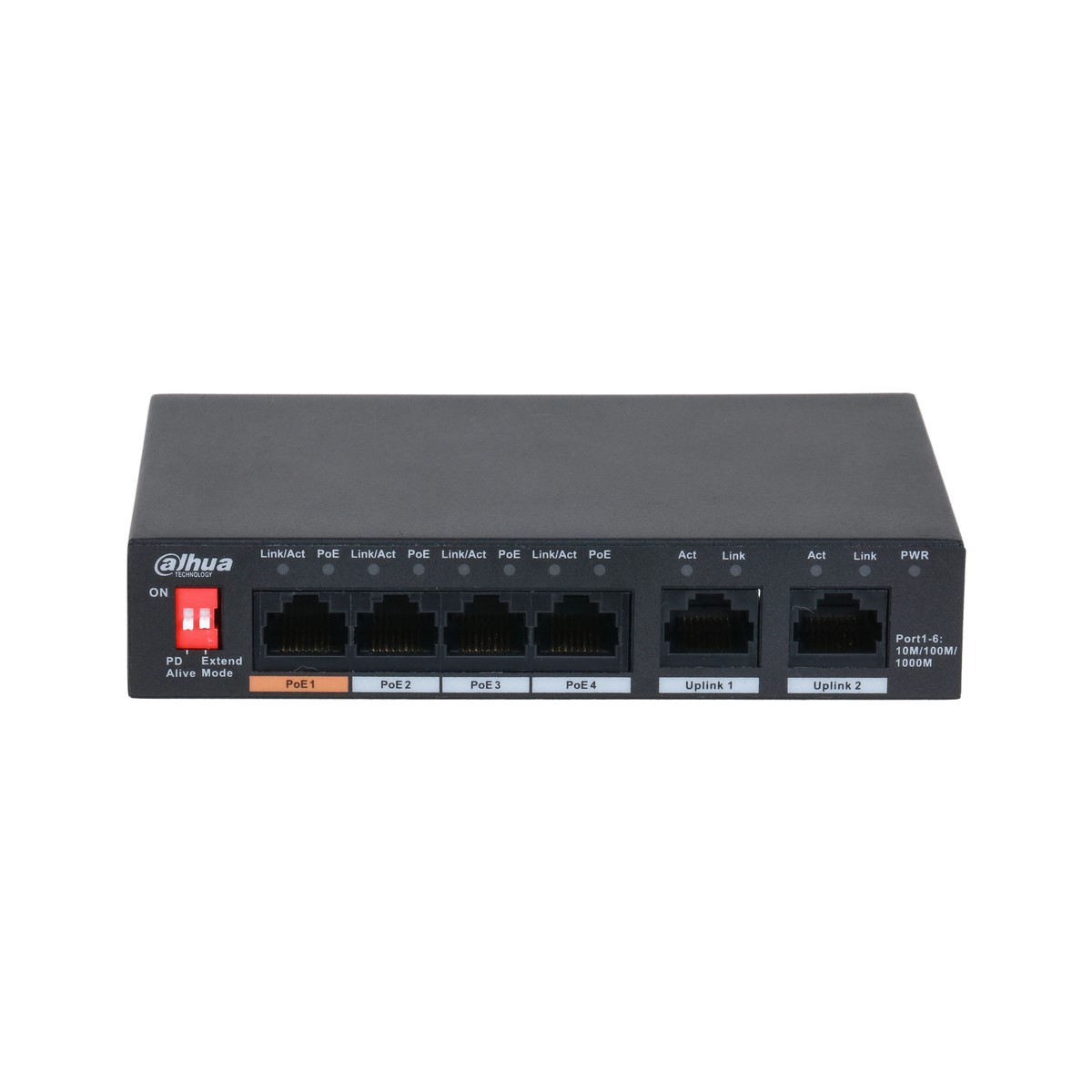

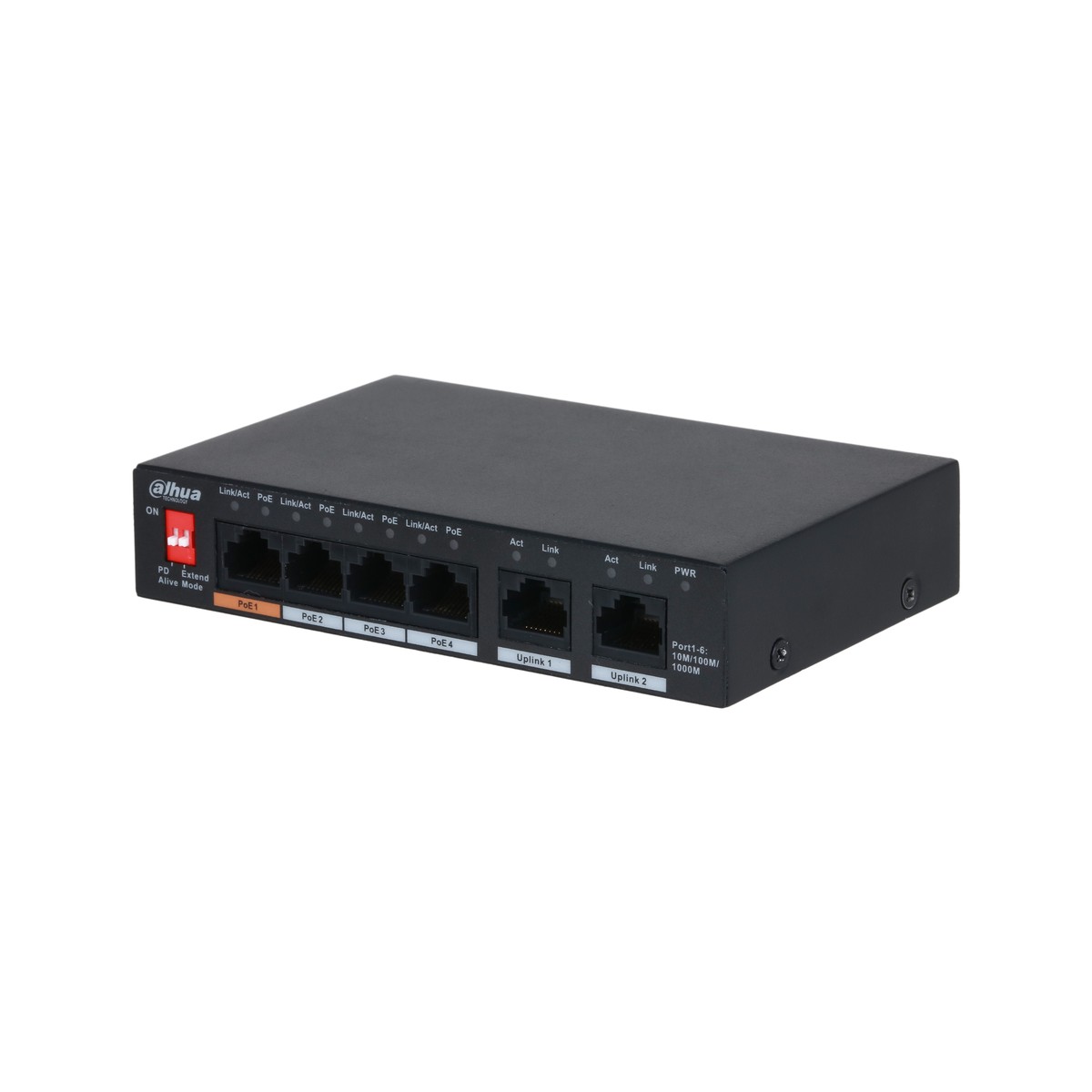

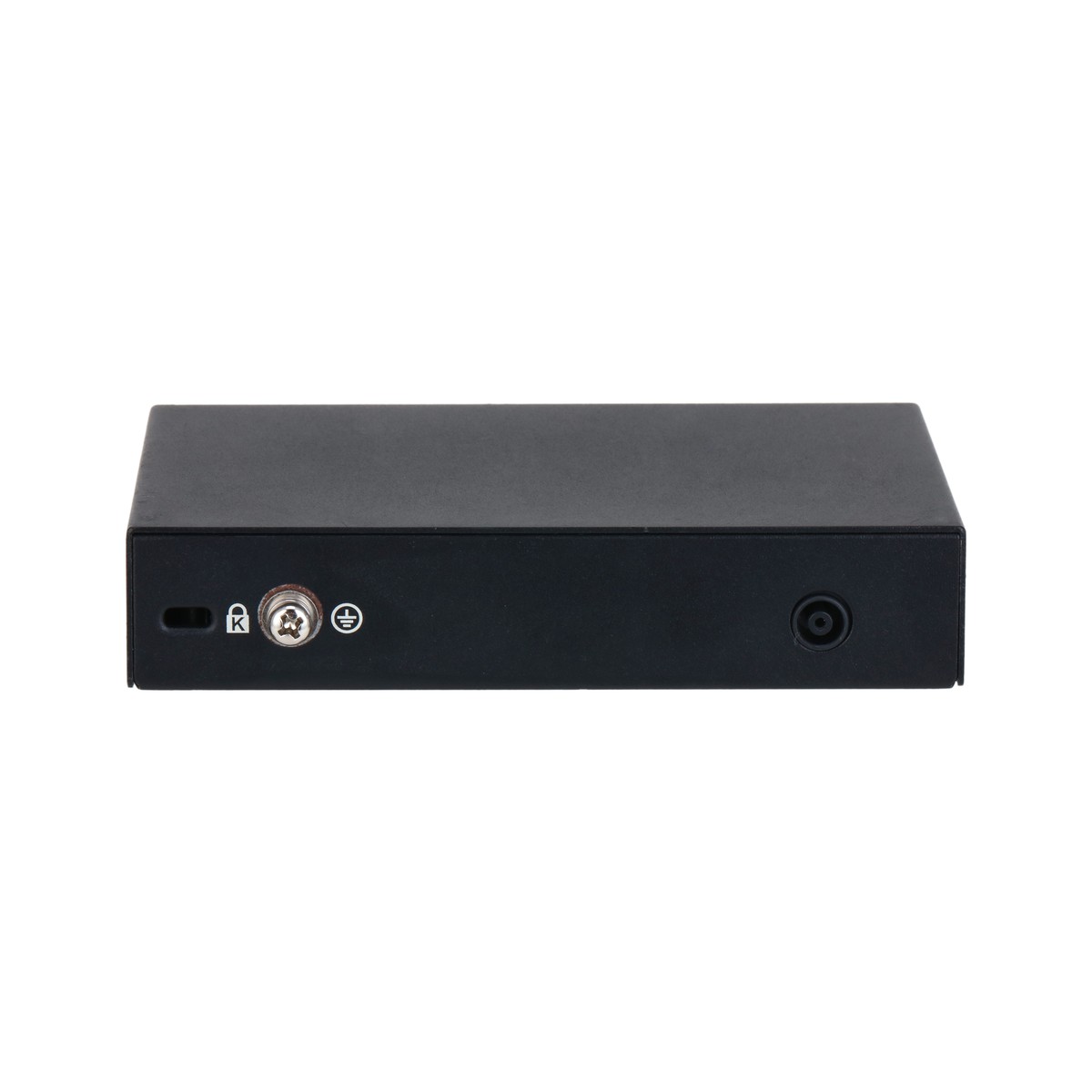

Switch unmanaged desktop 6 porte Gigabit con 4 porte PoE, PoE intelligente IEEE 802.3af/at e Hi-PoE, porta arancione Hi-PoE fino a 60 W, PoE a lunga distanza fino a 250 m, PoE watchdog, gestione della potenza PoE, capacità di commutazione 14 Gbps, buffer 1 Mbit, tabella MAC 2K, controllo di flusso, alimentazione 48~57 Vdc, protezione fulmini 4 kV (modo comune) e 2 kV (modo differenziale), ESD 8 kV in aria e 6 kV a contatto, installabile a parete, foro per blocco antifurto, temperatura di esercizio -10~+55 °C, 130x85x26 mm, 0.30 kg
Datasheet
Manuali
| Poe | |
| PoE Protocol | IEEE802.3af/ IEEE802.3at/ Hi-PoE |
| Power Supply Pin | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance | 250 m long distance PoE transmission |
| PoE Power Management | Yes |
| PoE Watchdog | Yes |
| Performance | |
| Switching Capacity | 14 Gbps |
| Packet Forwarding Rate | 8.928 Mbps |
| Packet Buffer Memory | 1 Mbit |
| MAC Address Table | 2 K |
| Flow Control | Enable by default |
| Working Temperature | –10 °C to 55 °C (+14°F to +131°F) |
| Application Humidity | 5%–95% (RH) |
| General | |
| Power Input | 48 V – 57 V DC Common mode: 4 kV |
| Lighting Protection | Differential mode: 2 kV Air discharge: 8 kV |
| ESD Protection | Contact discharge: 6 kV |
| Wall-mount Installation | Yes |
| Anti-theft Lock Hole | Yes |
| Weight | 0.30 kg 0.64 lb) ( |
| Dimension | 130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02") Pictures in the document are for reference only, and the actual product shall prevail. |
| Transmission Performance: | |
| CAT5E/CAT6. Max. DC resistance < 10Ω/100m | Load Capacity(W) Bandwidth(Mbps) |
| 100 | 71.3 100 |
| 150 | 62 10 |
| 200 | 51 10 |
| 250 | 40 10 |
| 100 | 53 100 |
| 150 | 50 10 |
| 200 | 47 10 |
| 250 | 37 10 |
| Ieee802.3At 30W | |
| 100 | 25.5 100 |
| 150 | 25.5 10 |
| 200 | 25.5 10 |
| 250 | 25.5 10 |
