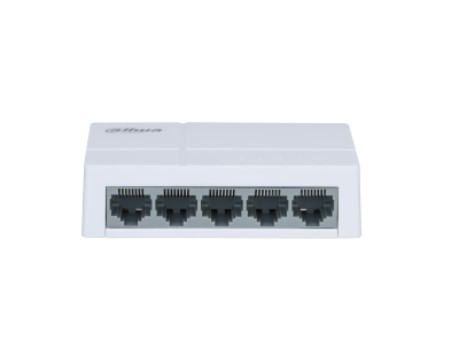

Switch unmanaged con 5 porte 10/100 Mbps, capacità switching 1 Gbps, rate inoltro pacchetti 0.744 Mpps, 5 Vdc, alimentatore incluso, case in plastica
Datasheet
Manuali
| Hardware | |
| Included Power Adapter | Yes |
| Ethernet Port | 5 |
| Ethernet Port Speed | 100 Mbps |
| Description of Function | Port 1–5: 5 × 10/100 Base-T |
| Power Supply | 5 VDC; 1 A |
| Operating Temperature | 0 °C to +45 °C (+32 °F to +113 °F) |
| Operating Humidity | 5%–95% (RH) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH) Idling: 0.1 W; |
| Power Consumption | Full load: 0.5 W |
| Performance | |
| MTBF | 952.50 years |
| Switching Capacity | 1 Gbit |
| Packet Forwarding Rate | 0.744 Mpps |
| Packet Buffer Size | 768 kbit |
| MAC Table Size | 2K |
| General | |
| Statics Protection | Contact discharge: 4 kV |
| Lighting Protection | Common mode: 2 kV |
| Net Weight | 0.12 kg (0.26 lb) |
| Gross Weight | 0.23 kg (0.51 lb) 86.4 mm × 52.0 mm × 23.0 mm |
| Product Dimensions | (3.40" × 2.05" × 0.91") 94.0 mm × 111.0 mm × 67.0 mm |
| Packaging Dimensions | (3.70" × 4.37" × 2.64") |
| Casing Material | Plastic |
| Installation | Desktop mount |
