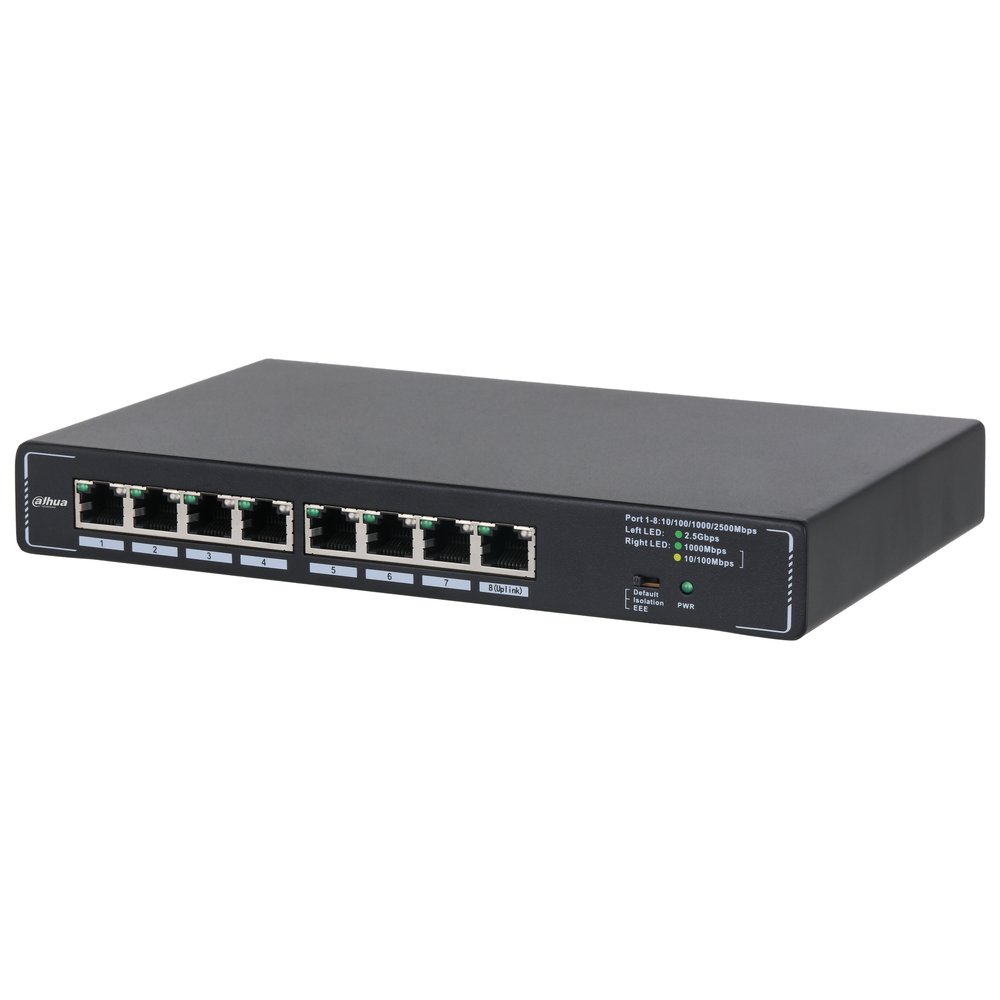

Switch Multi-Giga unmanaged con 8 porte 10/100/1000/2500 Mbps, capacità switching 40 Gbps, rate inoltro pacchetti 29.76 Mpps, 12 Vdc, alimentatore incluso
Datasheet
Manuali
| Basic | |
| Layer | Unmanaged |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.76 Mpps |
| Description of Function | Port 1-8: 8 × RJ-45 10/100/1000/2500 Mbps |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | External power supply: 12 VDC, max 2 A Idling: 1.9 W; |
| Power Consumption | Full load: 8.09 W Air discharge: 8 kV; |
| Statics Protection | Contact discharge: 6 kV Common mode: 4 kV; |
| Lightning Protection | Differential mode: 2 kV |
| Net Weight | 0.73 kg (1.61 lb) |
| Gross Weight | 0.942 kg (2.07 lb) 220 mm × 141 mm × 30 mm (8.66" × 5.55" × 1.18") (L × |
| Product Dimensions | W × H) 297 mm × 163 mm × 71 mm (11.69" × 6.41" × 2.79") (L |
| Packaging Dimensions | × W × H) |
| Casing Material | Metal |
| Installation | Desktop mount; wall mount |
| Poe | |
| PoE | No |
| Hardware | |
| DIP Switch | uplink ports 8. These uplink ports can also send their traffic to 1-7. EEE: Energy Efficient Ethernet (EEE) function . |
| Performance | |
| Packet Buffer Size | 8 Mbit |
| Jumbo Frame | 12K Byte |
| MAC Table Size | 4K IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE |
| Communication Standard | 802.3z; IEEE 802.3az; IEEE 802.3ad; IEEE 802.3ae |
| General | |
| Packing List | 1 × Power Adapter; 1 × Mounting Kit; |
| Ordering Information | |
| Type | Model Description 8-Port Unmanaged Desktop |
| Ethernet Switch | DH-SMG1008 Switch with 8-Port 2.5G |
