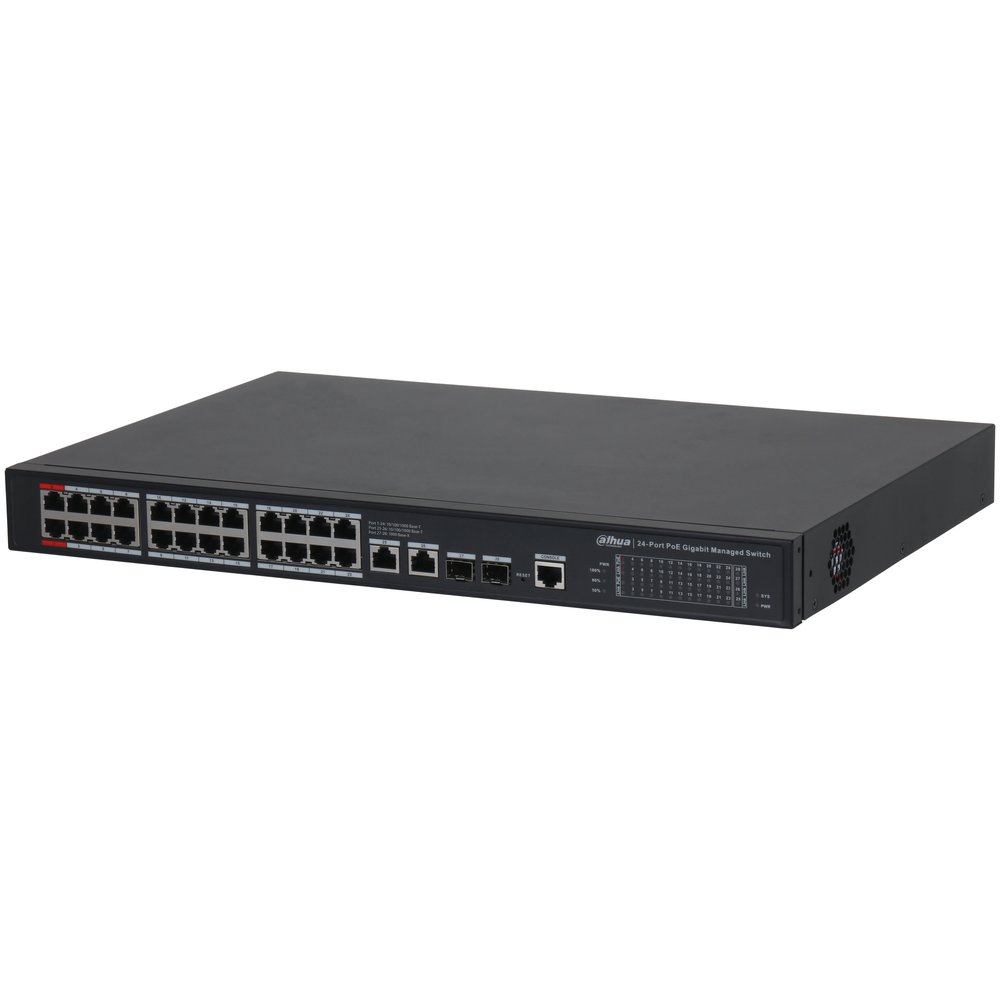

Switch managed (anche tramite Cloud) con 28 porte Gigabit (24 10/100/1000 Mbps PoE <240 W + 2 10/100/1000 Mbps + 2 SFP 1000 Mbps), capacità switching 56 Gbps, rate inoltro pacchetti 41.664 Mpps, 2 red port 90 W, PoE watchdog, trasmissione PoE fino a 250 m, 100~240 Vac, alimentatore incluso
Datasheet
Manuali
| Hardware | |
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 26 |
| Optical Port | 2 |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Optical Port Speed | 1000 Mbps Port 1-24: 24 × RJ45 10/100/1000 Mbps(PoE) |
| Description of Function | Port 25-26: 2 × RJ45 10/100/1000 Mbps |
| Slots | Port 27-28: 2 × SFP 1000 Mbps |
| Debugging | Console × 1 |
| Reset Button | 1 |
| Power Supply | 100-240 VAC, 50/60 Hz, 3.5 A |
| Operating Temperature | –10°C to 55°C (+14°F to +131°F) |
| Operating Humidity | 5%–95% (RH) Idling load: ≤ 20 W; |
| Power Consumption | Full load: 240 W |
| Performance | |
| Management Type | Yes |
| MTBF | 467125.73 hours |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.664 Mpps |
| Packet Buffer Size | 4.1 Mbit |
| Jumbo Frame | 10K Byte |
| MAC Table Size | 8K |
| VLAN Number | 4K |
| VLAN Interface | 10 |
| Dynamic ARP | 512 IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE |
| Communication Standard | 802.3z, IEEE 802.3ad |
| Feature | |
| PoE Protocol | IEEE802.3bt (PoE++) Port 1-2: ≤ 90 W |
| PoE Power | Port 3-24: ≤ 30 W Total: ≤ 240 W |
| PoE Power Consumption | Yes |
| PoE Pin Assignment | 1,2,4,5 (V+),3,6,7,8 (V-) |
| Long Distance PoE | Yes |
| Spanning Tree Protocol | STP; RSTP |
| VLAN Function | Yes |
| Link Aggregation | Static link aggregation; LACP |
| IEEE 802.3x Flow Control | IEEE 802.3X-based flow control (full-duplex) |
| Multicast | IGMP Snooping DHCP client |
| DHCP Function | DHCP-Server DHCP-Snooping IEEE 802.1x |
| Security | ACL WEB(http and https) |
| Equipment Management | SNMP V1/V2C/V3 |
| General | |
| Statics Protection | Contact discharge: 6 kV Common mode: 4 kV; |
| Lighting Protection | Differential mode: 2 kV |
| Net Weight | 3.405 kg (7.51 lb) |
| Gross Weight | 4.51 kg (9.94 lb) |
| Product Dimensions | 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73") |
| Packaging Dimensions | 525 mm × 410 mm × 110 mm (20.67" × 16.14" × 4.33") |
| Transmission Performance: | |
| CAT5E/CAT6. Max. DC resistance < 10Ω/100m | Load Capacity(W) Bandwidth(Mbps) |
| 100 | 71.3 1000 |
| 150 | 62 10 |
| 200 | 51 10 |
| 250 | 40 10 |
| 100 | 53 1000 |
| 150 | 50 10 |
| 200 | 47 10 |
| 250 | 37 10 |
| Ieee802.3At 30W | |
| 100 | 25.5 1000 |
| 150 | 25.5 10 |
| 200 | 25.5 10 |
| 250 | 25.5 10 |
| Ordering Information | |
| Type | Model Description GSFP-1310T-20-SMF 1.25G 1310/1550nm,20km,LC, Single-mode GSFP-1310R-20-SMF 1.25G 1550/1310nm,20km,LC, Single-mode |
| SFP module | GSFP-1310-20-SMF 1.25G 1310nm,20km,LC, Single-mode GSFP-850-MMF 1.25G 850nm,550m,LC, Multi-mode |
| Dimensions (Mm[Inch]) | |
| [0.17] | 4.3 [0.17] 440.0 [17.32] |
| [0.04] | 1.0 [0.04] [1.73] 1.0 44.0 [0.04] [11.99] [11.81] 304.6 300.0 The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
