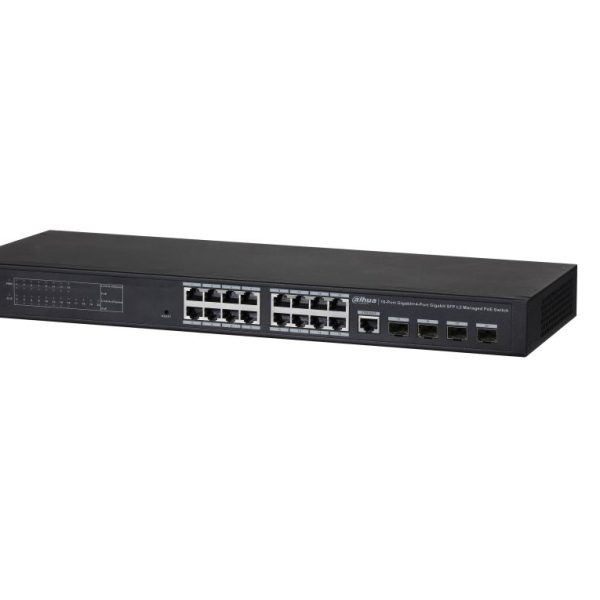

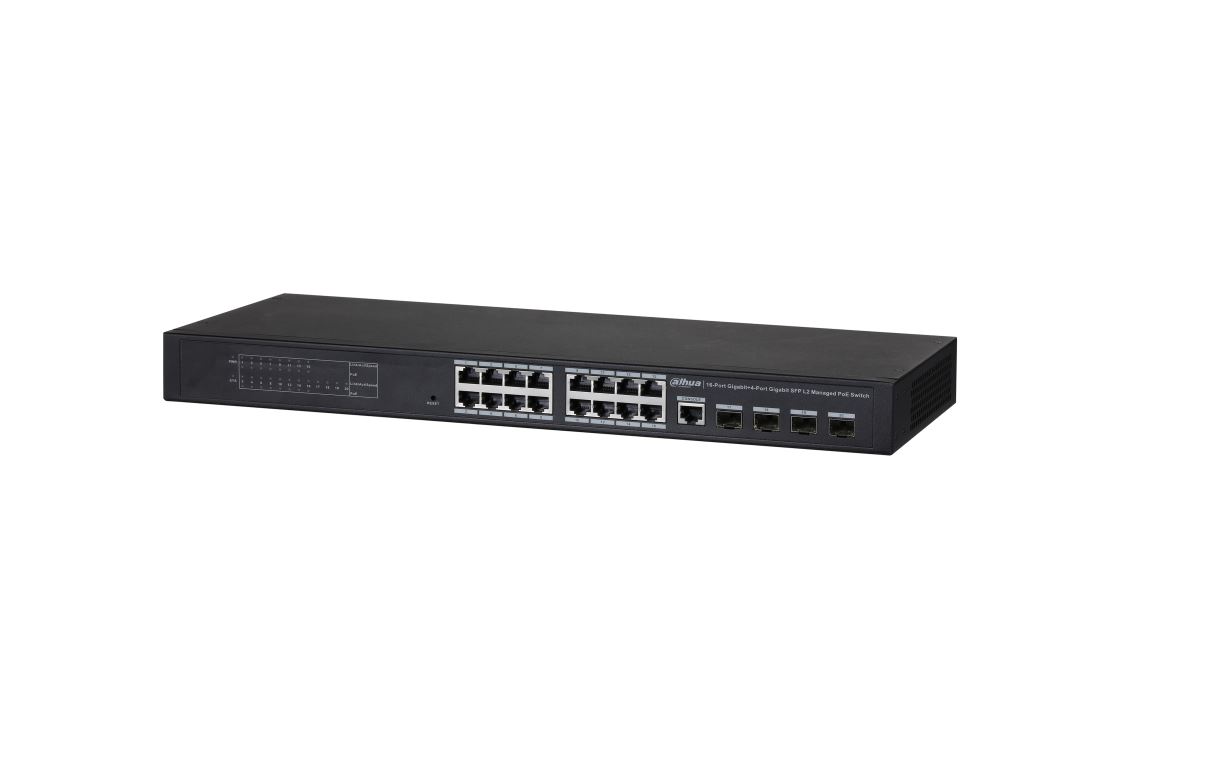

Switch managed con 20 porte Gigabit (16 10/100/1000 Mbps PoE <240 W + 4 Base-X 1000 Mbps), capacità switching 40 Gbps, rate inoltro pacchetti 29.76 Mpps, 100~240 Vac, alimentatore incluso
Datasheet
Manuali
| Model | DH-PFS4420-16GT-240 16*10/100/1000 Base-T (PoE power supply) |
| Ethernet Port | 4*1000 Base-X |
| PoE Power Consumption | Port1-16 ≤30W, Total≤240W |
| PoE Protocol | IEEE802.3af, IEEE802.3at |
| Switching Capacity | 40Gbps |
| Packet Forwarding Rate | 29.76Mpps |
| Packet Buffer Memory | 4.1Mb |
| Application Humidity | 10%~90% |
| Power | |
| Lightning Protection | Common Mode 2KV |
| Working Temperature | 0°C~45°C |
| Weight | 2.69kg |
| Dimension(W×D×H) | 440mm x330mm x44mm |
| Accessories | |
| PFT3950 | 1.25G 850nm,500m,LC, Multi-mode |
| PFT3960 | 1.25G 1310/1550nm,20km,LC, Single-mode |
| PFT3970 | 1.25G 1550/1310nm,20km,LC, Single-mode |
| System | |
| PoE Budget | Total≤240W |
| MAC Table | 8K |
| SNTP | Support Support DHCP client/Relay |
| DHCP | Support DHCP snooping |
| VLAN | 802.1Q Standard VLAN |
| Port Aggregation | Manual aggregation/LACP |
| Mirroring | Many-to-one port mirroring Half-duplex based on back pressure type control; |
| Flow Control | Full duplex based on PAUSE frame |
| Multicast | IGMP Snooping v2/v3 Broadcast / Uncast / Multicast Storm Control, IEEE |
| Security Features | 802.1x, DHCP Snooping(IP, MAC, Port) |
| Spanning tree | Support STP/RSTP/MSTP |
| LLDP | Support |
| MAC Table | Support MAC address table configuration WRR (Weighted Round Robin) Port based QoS IEEE 802.1p Class of Service |
| QoS | DSCP-based QoS QoS basic mode QoS advanced mode (Policy based) Support the configuration file upload/download |
| System Maintenance | Support the updated packet upload System log |
| Network Management | WEB, Telnet, SSH, SNMP |
