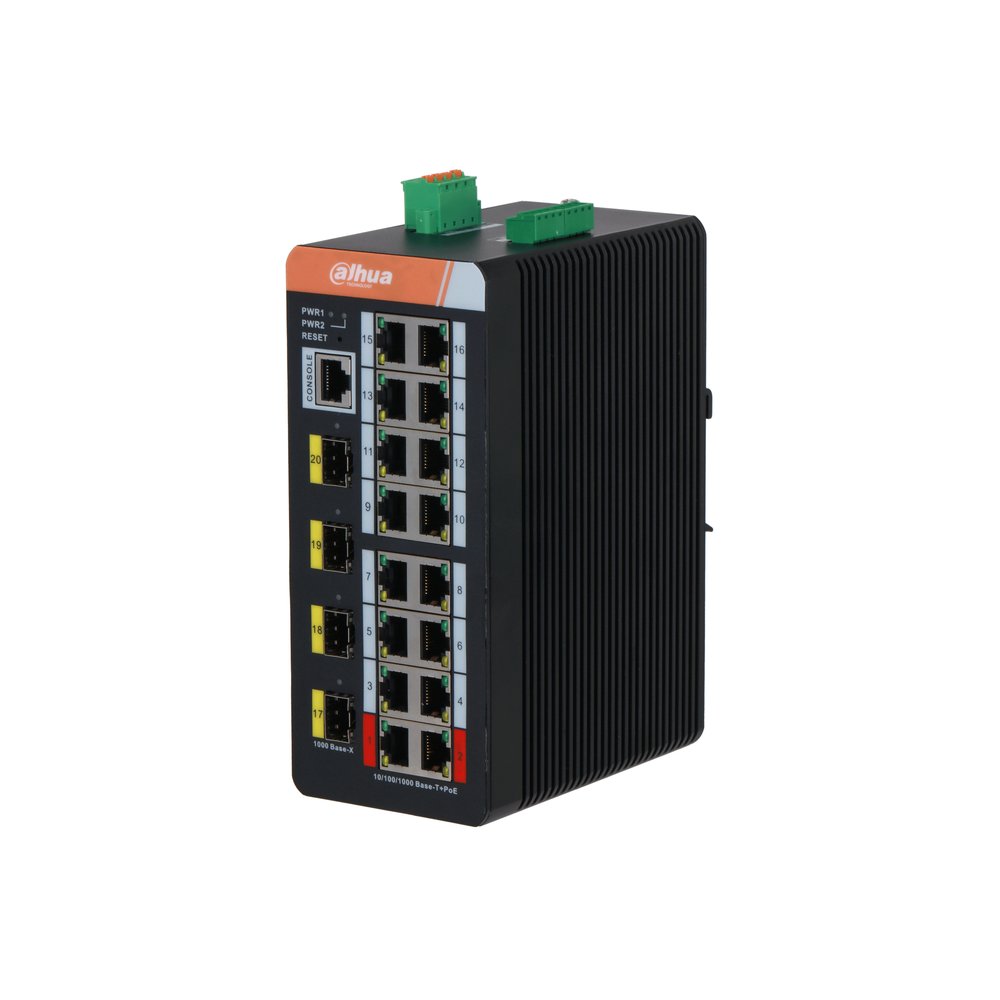

Switch Industrial managed (anche tramite Cloud) con 20 porte Gigabit (16 10/100/1000 Mbps PoE <240 W + 4 SFP 1000 Mbps), capacità switching 56 Gbps, rate inoltro pacchetti 29.76 Mpps, PoE watchdog, 2 red port 90 W, trasmissione PoE fino a 250 m, 53 Vdc, Din Rail, alimentatore NON incluso
Datasheet
Manuali
| Hardware | |
| Included Power Adapter | No |
| PoE | Yes |
| Ethernet Port | 16 |
| Optical Port | 4 |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Optical Port Speed | 1000 Mbps Port1-16: 16 × RJ45 10/100/1000 Mbps |
| Description of Function Slots | Port17-20: 4 × SFP 1000 Mbps |
| Debugging | 1 × console port |
| Reset Button | 1 |
| Power Supply | 53 VDC |
| Operating Temperature | –40 °C to +75 °C (–40 °F to +167 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing Idling: ≤ 6 W |
| Power Consumption | Full load: 240 W |
| Performance | |
| Layer | L2 |
| Management Type | Yes |
| MTBF | 467,125.73 hours |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 29.76 Mpps |
| Packet Buffer Size | 4.1 Mbit |
| Jumbo Frame | 10 kByte |
| MAC Table Size | 8K |
| VLAN Number | 4K |
| VLAN Interface | 10 |
| Dynamic ARP | 512 IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, |
| Communication Standard | IEEE 802.3z, IEEE 802.3ad |
| Feature | |
| PoE Protocol | IEEE802.3bt Port 1-2 ≤90 W |
| PoE Power | Port 3-16 ≤30 W Full load ≤240W |
| PoE Power Consumption | Yes |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance PoE | Yes |
| Spanning Tree Protocol | STP, RSTP, ERPS |
| VLAN Function | Yes |
| Link Aggregation | Static link aggregation; LACP |
| IEEE 802.3x Flow Control | IEEE 802.3X-based flow control (full-duplex) |
| Multicast | IGMP Snooping DHCP Client |
| DHCP Function | DHCP-Server DHCP-Snooping IEEE 802.1× |
| Security | ACL ERPS WEB (http and https) |
| Equipment Management | SNMP V1/V2C/V3 |
| General | |
| Statics Protection | Contact discharge: 6 kV Common mode: 6 kV |
| Lightning Protection | Differential mode: 4 kV |
| Net Weight | 1.35 kg (2.98 lb) |
| Gross Weight | 1.75 kg (3.86 lb) 125.4 mm × 75.0 mm × 175.0 mm (4.94" × 2.95" × |
| Product Dimensions | 6.89") (L × W × H) 325 mm × 190 mm × 125 mm (12.80" × 7.48" × 4.92") |
| Packaging Dimensions | (L × W × H) |
| Transmission Performance: | |
| CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m | Load Capacity(W) Bandwidth(Mbps) |
| 100 | 71.3 1000 |
| 150 | 62 10 |
| 200 | 51 10 |
| 250 | 40 10 |
| 100 | 53 1000 |
| 150 | 50 10 |
| 200 | 47 10 |
| 250 | 37 10 |
| 100 | 25.5 1000 |
| 150 | 25.5 10 |
| 200 | 25.5 10 |
| 250 | 25.5 10 |
| Ordering Information | |
| Type | Model 1.25G 1310/1550 nm, 20 km, LC, Single- GSFP-1310T-20-SMF mode 1.25G 1550/1310 nm, 20 km, LC, Single- GSFP-1310R-20-SMF mode |
| SFP module | 1.25G 1310 nm, 20 km, LC, Single-mode GSFP-1310-20-SMF 1.25G 850 nm, 550 m, LC, Multi-mode GSFP-850-MMF |
| DIN-Rail | 240 W, 100 VAC~240 VAC-48V 5A EDF-240-48 |
| Dimensions (Mm[Inch]) | |
| The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. | |
