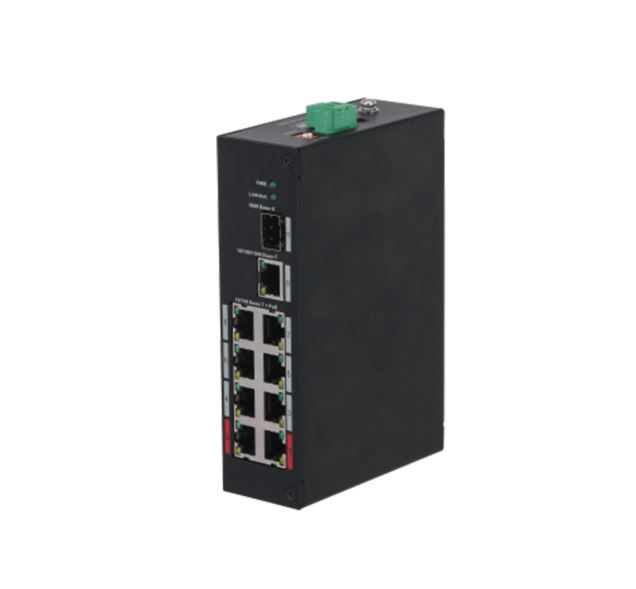

Switch hardened unmanaged con 10 porte (8 PoE 10/100 Mbps <96 W + 1 10/100/1000 Mbps uplink + 1 SFP 1000 Mbps uplink), capacità switching 7.6 Gbps, rate inoltro pacchetti 4.17 Mbps, red port 90 W, PoE watchdog, trasmissione PoE fino a 250 m, 48-57 Vdc, alimentatore incluso
Datasheet
Manuali
| Hardware | |
| Data Transmission Port | Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink) Port 10: 1 × SFP 1000 Mbps (uplink) |
| Power Supply | 48 V–57 V DC |
| Operaing Temperature | –30 °C to +65 °C (-22 °F to +149 °F) |
| Operating Humidity | 5% – 95% (RH) Idling: 3 W |
| Power Consumption | Full load: 96 W |
| Performance | |
| Capacity | 7.6 Gbps |
| Packet Forwarding Rate | 4.17 Mbps |
| Packet Buffer Memory | 1 Mbit |
| MAC Table Size | 8K IEEE802.3/IEEE802.3u/IEEE802.3X/IEEE 802.3ab/IEEE |
| Communication Standard | 802.3z |
| Poe | |
| PoE Standard | IEEE802.3af/ IEEE802.3at/ Hi-PoE/ IEEE802.3bt |
| PoE Power | Port 1-2 ≤ 90 W, Port 3-8 ≤ 30W, total≤ 96 W |
| Power Consumption | Yes |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance PoE | 250 m (820.21 ft) long distance PoE transmission |
| General | |
| Lightning Protection | Differental mode: 2 kV Air discharge: 8 kV |
| ESD Protection | Contact discharge: 6 kV |
| Net Weight | 0.54 kg (1.03 lb) |
| Product Dimensions | 150 mm × 100 mm × 42 mm (5.91" × 3.94" × 1.65") |
| Transmission Performance: | |
| CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m | Load Capacity(W) Bandwidth(Mbps) |
| 100 | 71.3 100 |
| 150 | 62 10 |
| 200 | 51 10 |
| 250 | 40 10 |
| 100 | 53 100 |
| 150 | 50 10 |
| 200 | 47 10 |
| 250 | 37 10 |
| 100 | 25.5 100 |
| 150 | 25.5 10 |
| 200 | 25.5 10 |
| 250 | 25.5 10 |
| Dimensions (Mm[Inch]) | |
| 42.0 | 100.0 [3.94] |
| Ordering Information | |
| SFP module | GSFP-1310-20-SMF 1.25G 1310nm,20km,LC, Single-mode GSFP-850-MMF 1.25G 850nm,550m,LC, Multi-mode The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
