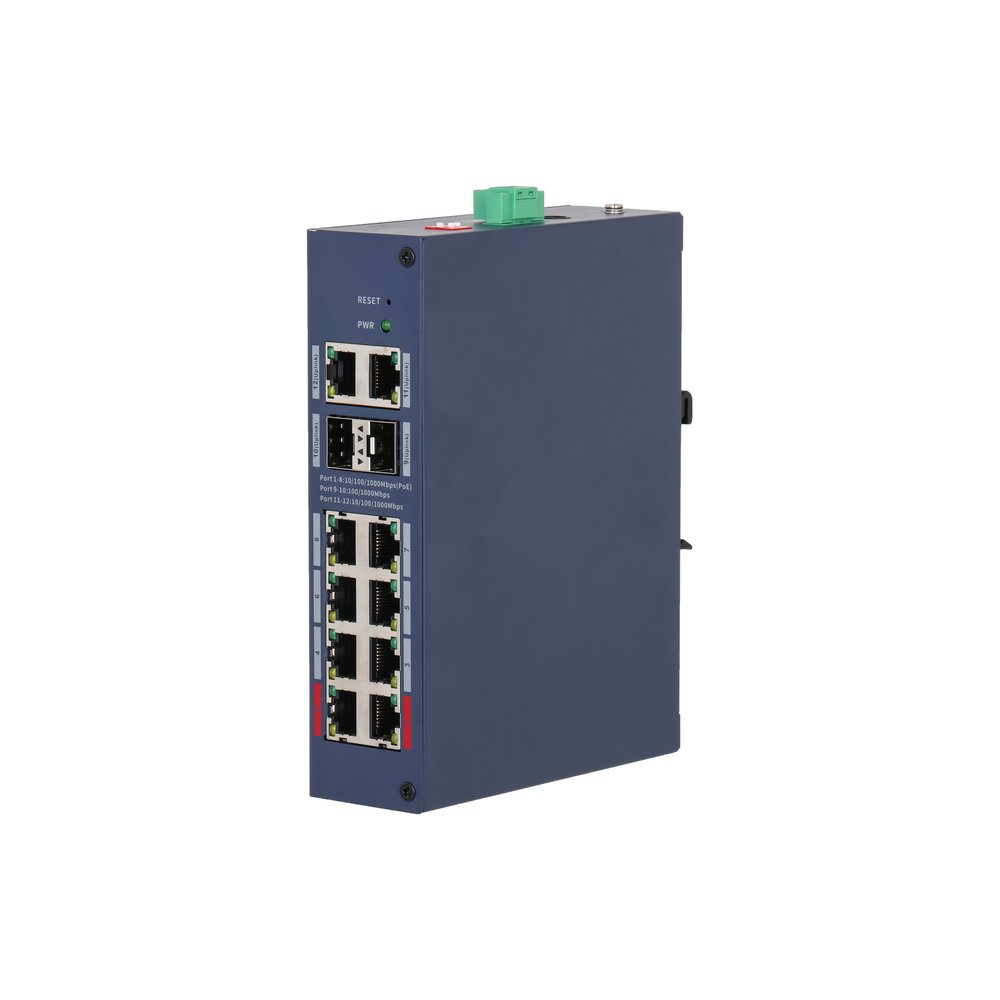

Switch hardened IP30 IK06 Cloud Managed con 12 porte Gigabit (8 RJ-45 10/100/1000 Mbps PoE <110 W + 2 SFP 100/1000 Mbps uplink + 2 RJ-45 10/100/1000 Mbps uplink), capacità switching 24 Gbps, rate inoltro pacchetti 17.856 Mpps, 2 red port BT 90 W, PoE watchdog, trasmissione PoE fino a 250 m, 48-57 Vdc, alimentatore incluso
Datasheet
Manuali
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 24 Gbps |
| Packet Forwarding Rate | 17.856 Mpps Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE) |
| Description of Function | Port 9-10: 2 × SFP 100/1000 Mbps (uplink) |
| Slots | Port 11-12: 2 × RJ-45 10/100/1000 Mbps (uplink) |
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Protection | IP30; IK06 |
| Storage Temperature | –40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing External dual power supply (terminal block and DC): |
| Power Supply | 48–57 VDC, 2.5–2.1 A Idling: 2 W |
| Power Consumption | Full load: 117.2 W Air discharge: 8 kV |
| Statics Protection | Contact discharge: 6 kV Common mode: 4 kV |
| Lightning Protection | Differential mode: 2 kV |
| Net Weight | 0.66 kg (1.46 lb) |
| Gross Weight | 1.6 kg (3.53 lb) 171.8 mm × 139.4 mm × 42 mm (6.76" × 5.49" × 1.65") |
| Product Dimensions | (L × W × H) 314.5 mm × 253.5 mm × 130.5 mm (12.38" × 9.98" × |
| Packaging Dimensions | 5.14") (L × W × H) |
| Casing Material | Iron |
| Installation | DIN rail mount; desktop mount |
| Poe | |
| PoE | Yes |
| PoE Power | Port 3-8≤30 W, port 1–2≤90 W, total≤110 W |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt |
| PoE Power Consumption | PoE power consumption management; PoE power on/ |
| Management | off; turns off PoE if overload is detected; Green PoE |
| PoE Pin Assignment | 1,2,4,5 (V+),3,6,7,8 (V-) |
| Long Distance PoE | Yes |
| Hardware | |
| DIP Switch | reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps. PoE Watchdog: Monitors the flow of data traffic for ports 1–8. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted. |
| Reset Button | 1 |
| Performance | |
| MTBF | 810,020 hours |
| Packet Buffer Size | 8.4 Mbit |
| Jumbo Frame | 12288 Byte |
| MAC Table Size | 8K IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE |
| Communication Standard | 802.3z; IEEE 802.3az; IEEE 802.3ad |
| VLAN Number | 32 |
| Dynamic ARP | 10 |
| Feature | |
| Ethernet Loop Protection | STP; RSTP |
| VLAN Function | Port-based VLAN |
| Link Aggregation | Static Aggregation IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control |
| Port Feature | Broadcast Storm Control MAC+PORT Binding Port Self-loop Detection Ports Self-loop Detection |
| Mirror | Local Port Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client Port Isolation |
| Security | IP/Port/MAC Binding Web Management Cloud Management |
| Equipment Management | Logs System Logs Fault Alarm |
| General | |
| Packing List | 1 × Power Cord 1 × Power Adapter 1 × Terminal Block |
| Ordering Information | |
| Type | Model Description 1.25G 1310/1550nm,20km,LC, Single- GSFP-1310T-20-SMF mode 1.25G 1550/1310nm,20km,LC, Single- GSFP-1310R-20-SMF mode |
| SFP module | GSFP-1310-20-SMF 1.25G 1310nm,20km,LC, Single-mode GSFP-850-MMF 1.25G 850nm,550m,LC, Multi-mode |
