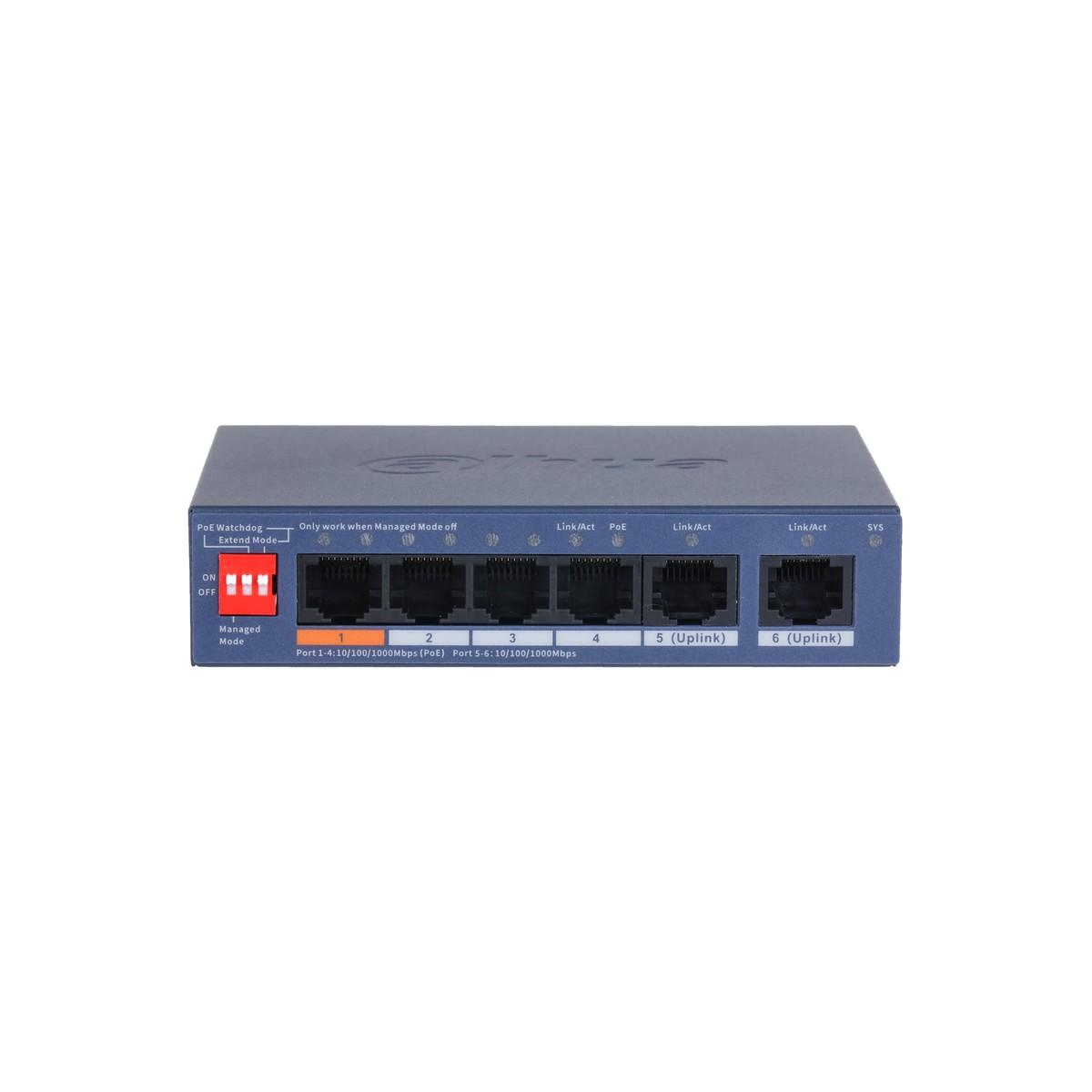

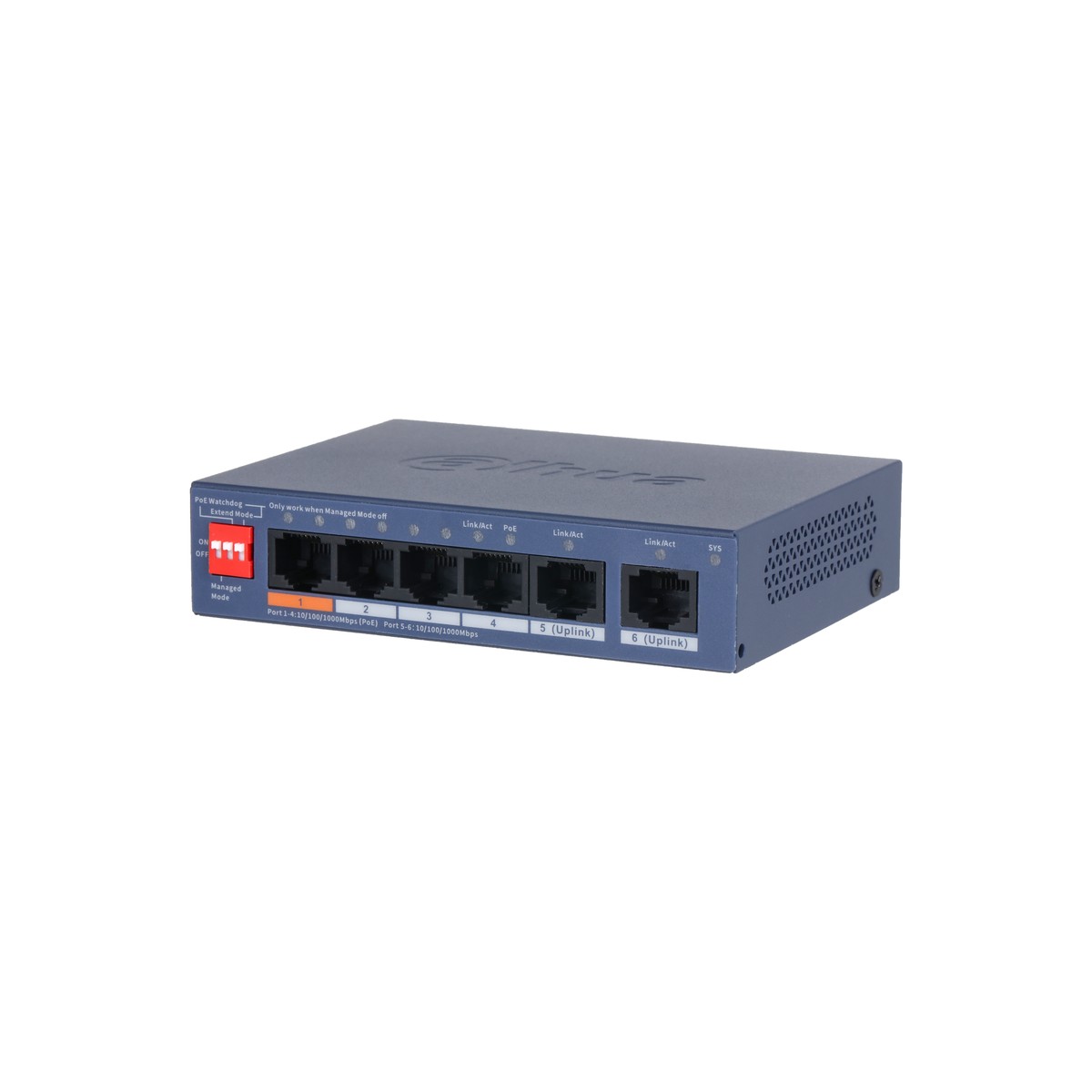

Switch desktop Cloud managed Layer 2 con 4 porte RJ45 10/100/1000 Mbps PoE e 2 porte RJ45 10/100/1000 Mbps uplink, budget PoE totale 60 W (IEEE 802.3af/at su tutte le porte PoE e Hi-PoE sulla porta arancione, porta 1 fino a 60 W, porte 2-4 fino a 30 W), DIP switch per modalità Cloud managed, PoE Watchdog e PoE a lunga distanza (fino a 250 m a 10 Mbps), VLAN e protezione loop, gestione web e cloud tramite app DoLynk, capacità di switching 12 Gbps, case in lamiera metallica, installazione da tavolo o a parete, temperatura di esercizio -10 °C ~ +55 °C, alimentatore esterno 53 Vdc
Datasheet
Manuali
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.9 Mpps |
| Description of Function | Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) |
| Slots | Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | External power supply: 53 VDC, 0.8 A Idling: ≤3 W |
| Power Consumption | Full load: 65 W Air discharge: 8 kV |
| Statics Protection | Contact discharge: 6 kV |
| Lightning Protection | Common mode: 6 kV |
| Net Weight | 0.2 kg (0.44 lb) |
| Gross Weight | 0.76 kg (1.68 lb) 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × |
| Product Dimensions | W × H) 195 mm × 114 mm × 83 mm (7.68" × 4.49" × 3.27") (L × |
| Packaging Dimensions | W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; wall mount |
| Poe | |
| PoE | Yes |
| PoE Power | Port 2-4≤30 W, port 1≤60 W, total≤60 W |
| PoE Protocol | IEEE802.3af ; IEEE802.3at ; Hi-PoE |
| PoE Power Consumption | PoE power consumption management; PoE power on/ |
| Management | off; turns off PoE if overload is detected （ ） （ ） |
| PoE Pin Assignment | 1, 2, 4, 5 V+ , 3, 6, 7, 8 V- |
| Long Distance PoE | Yes |
| Hardware | |
| DIP Switch | works when Managed Mode is Off) Extend Mode: Ports 1-4; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off) |

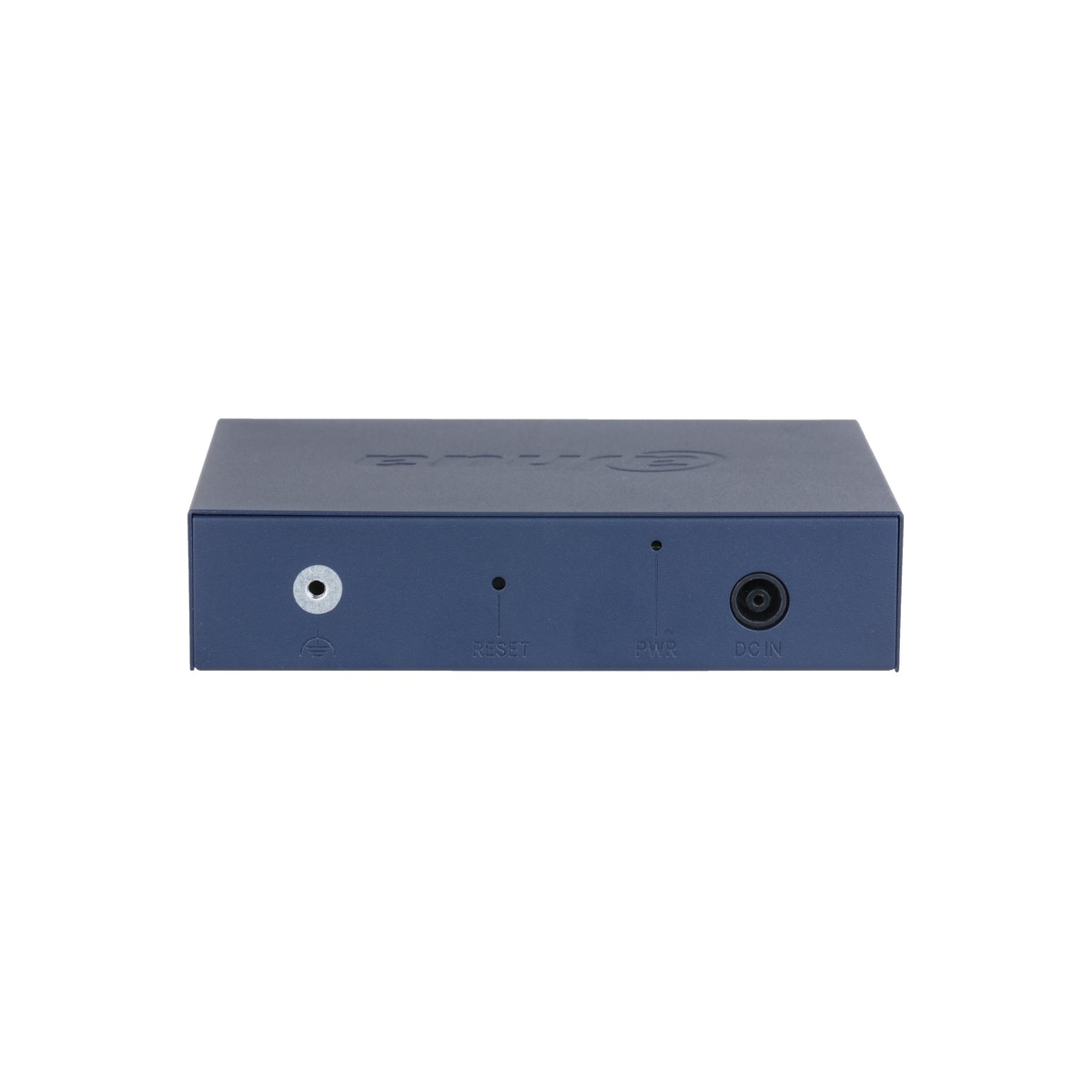

| Reset Button | 1 |
| Performance | |
| MTBF | 232.62 years |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 2K IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE |
| Communication Standard | 802.3az |
| VLAN Number | 32 |
| Feature | |
| VLAN Function | IEEE 802.1Q VLAN IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control |
| Port Feature | Broadcast Storm Control MAC+Port Binding Loop Prevention N:1 Mirroring; |
| Mirror | Local Port Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation Web Management Cloud Management |
| Equipment Management | Logs Fault Alarm |
| General | |
| Packing List | 1 × Power Adapter 1 × Power Cord |
| Transmission Performance | |
| Cable(m) | Load Capacity(W) Bandwidth(Mbps) |
| Ieee802.3Bt 90W | |
| 100 | 71.3 1000 |
| 150 | 62 10 |
| 200 | 51 10 |
| 250 | 40 10 |
| Hi-Poe 60W | |
| 100 | 46 1000 |
| 150 | 42 10 |
| 200 | 37 10 |
| 250 | 32 10 |
| Ieee802.3At 30W | |
| 100 | 25.5 1000 |
| 150 | 25.5 10 |
| 200 | 25.5 10 |
| 250 | 24 10 |
| Ordering Information | |
| Type | Model Description 6-Port Cloud Managed |
| PoE Switch | DH-CS4006-4GT-60 Desktop Gigabit Switch with 4-Port PoE |
