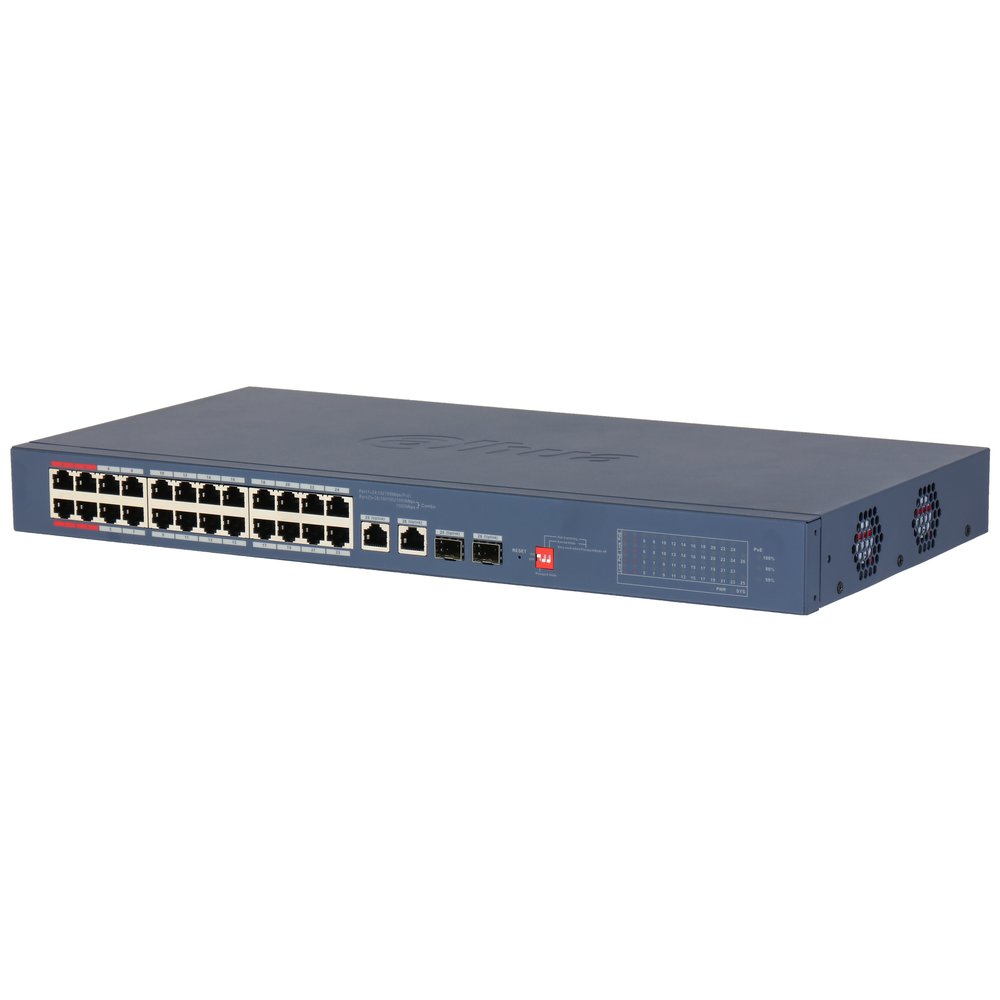

Switch Cloud managed con 26 porte (24 PoE 10/100 Mbps <375 W + 2 Gigabit (10/100/1000 Mbps) combo / 2 SFP Gigabit (1000 Mbps) combo), capacità switching 8.8 Gbps, rate inoltro pacchetti 6.55 Mpps, 4 red port 90 W, PoE watchdog, trasmissione PoE fino a 250 m, 100-240 Vac, alimentatore incluso
Datasheet
Manuali
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.55 Mpps Port 1-24: 24 × RJ45 10/100 Mbps (PoE) |
| Description of Function | Port 25-26: 2 × RJ45 10/100/1000 Mbps (Combo) |
| Slots | Port 25-26: 2 × SFP 1000 Mbps (Combo) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | Built-in power supply: 100–240 VAC, 47–63 Hz, max 7 A Idling: 3 W |
| Power Consumption | Full load: 382.5 W Air discharge: 8 kV |
| Statics Protection | Contact discharge: 6 kV Common mode: 6 kV |
| Lightning Protection | Differential mode: 1 kV |
| Net Weight | 2.7 kg (5.95 lb) |
| Gross Weight | 3.5 kg (7.72 lb) 440 mm × 228.81 mm × 43.65 mm ( × 9.01" × 1.72") (L |
| Product Dimensions | × W × H) 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L |
| Packaging Dimensions | × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; rack mount |
| Poe | |
| PoE | Yes |
| PoE Power | Port 5-24≤30 W, port 1-4≤90 W, total≤375 W |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt PoE power consumption management |
| PoE Power Consumption | PoE power on/off |
| Management | turns off PoE if overload is detected Port 1-4: 1, 2, 4, 5 (V+) , 3, 6, 7, 8 (V-) |
| PoE Pin Assignment | Port 5-24: 1, 2, (V+), 3, 6, (V-) |
| Long Distance PoE | Yes |
| Hardware | |
| DIP Switch | when Managed Mode is Off) Extend Mode: Ports 1-24; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off) |
| Reset Button | 1 |
| Performance | |
| MTBF | 1298465 h |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 8K IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE |
| Communication Standard | 802.3z, IEEE 802.3az |
| VLAN Number | 32 |
| Feature | |
| VLAN Function | IEEE 802.1Q VLAN IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control |
| Port Feature | Broadcast Storm Control MAC+Port Binding Loop Prevention Local Port Mirroring |
| Mirror | N:1 Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation Web Management Cloud Management |
| Equipment Management | Logs Fault Alarm |
| General | |
| Packing List | 1 × Power Cord 1 × Rack-mounting Kit |
| Ordering Information | |
| Type | Model Description 1.25G 1310/1550nm,20km,LC, GSFP-1310T-20-SMF Single-mode 1.25G 1550/1310nm,20km,LC, GSFP-1310R-20-SMF Single-mode |
| SFP module | 1.25G 1310nm,20km,LC, Single- GSFP-1310-20-SMF mode 1.25G 850nm,550m,LC, Multi- GSFP-850-MMF mode |
| Transmission Performance: | |
| CAT6. Max. DC resistance < 8 Ω/100 m | Load Capacity(W) Bandwidth(Mbps) |
| 100 | 71.3 100 |
| 150 | 62 10 |
| 200 | 51 10 |
| 250 | 40 10 |
| 100 | 46 100 |
| 150 | 42 10 |
| 200 | 37 10 |
| 250 | 32 10 |
| Ieee802.3At 30W | |
| 100 | 25.5 100 |
| 150 | 25.5 10 |
| 200 | 25.5 10 |
| 250 | 24 10 |
| devices or the cable type and status. | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
