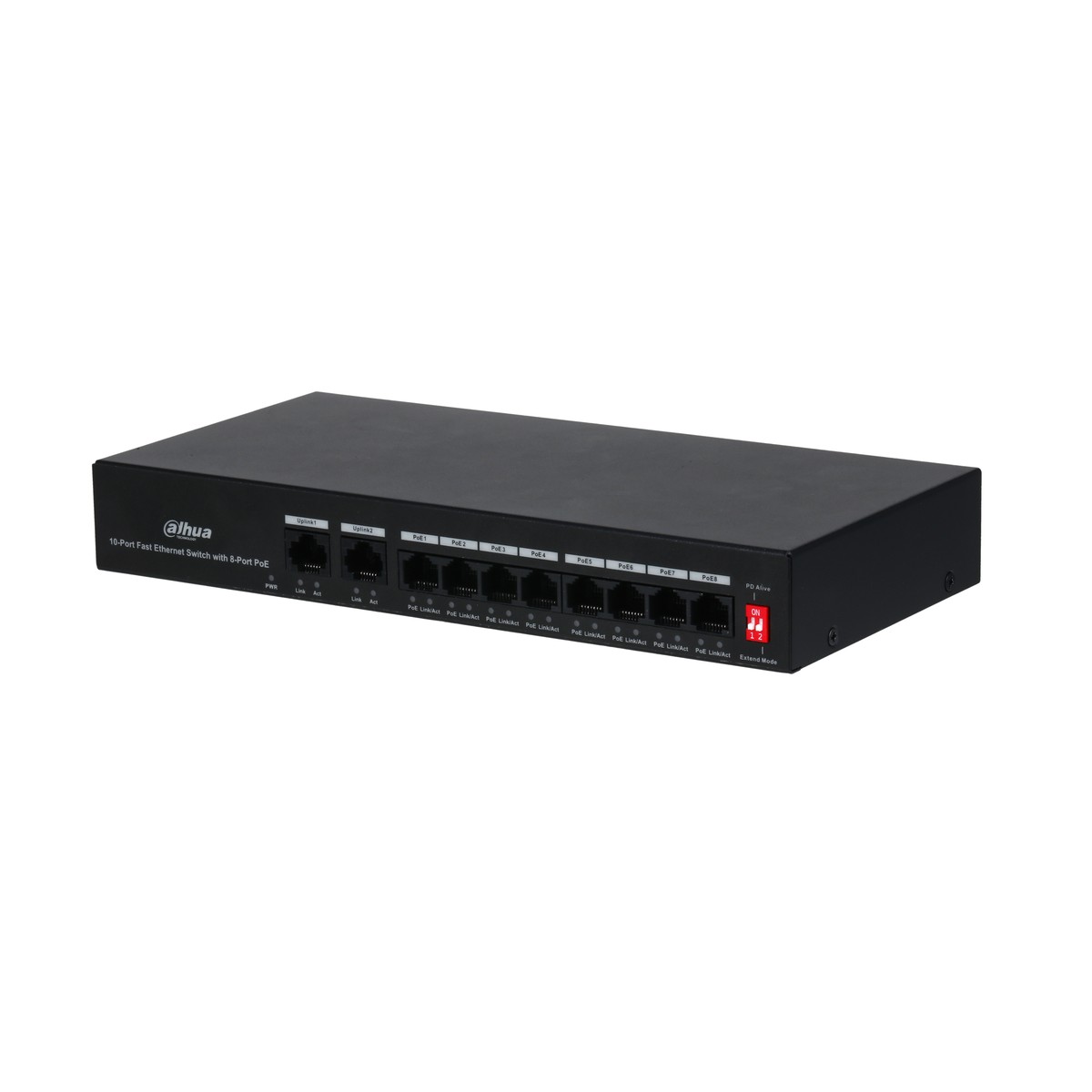

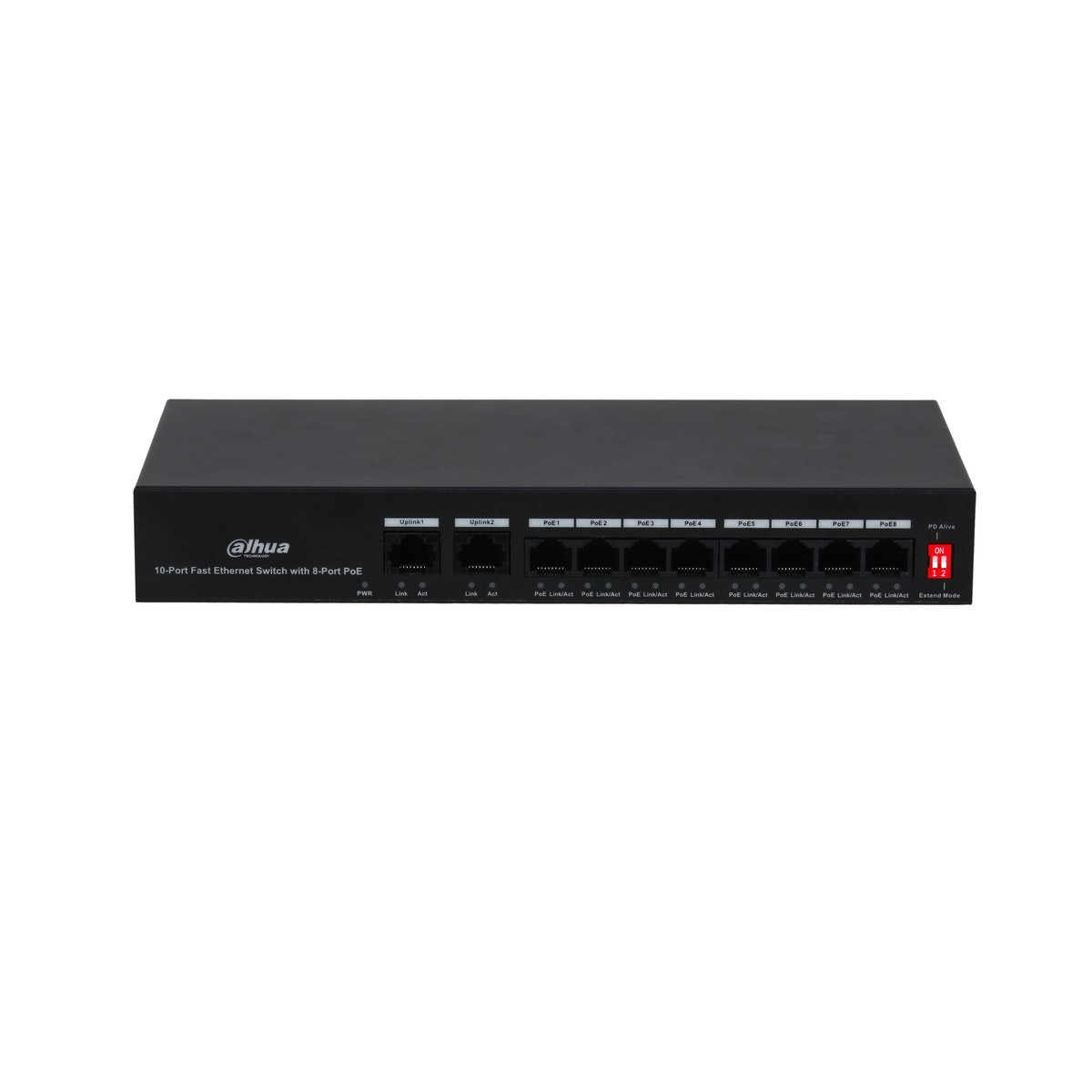

Switch 10 porte Fast Ethernet con 8 porte PoE 10/100 Mbps e 2 porte uplink 10/100 Mbps, potenza PoE 65 W, standard IEEE 802.3af/at, PoE a lunga distanza fino a 250 m, PoE watchdog, temperatura di esercizio -10~+55 °C
Datasheet
Manuali
| Hardware | |
| Data Transmission Port | 8 PoE ports 10/100 Mbps Base-TX; 2 uplink ports 10/100 Mbps Base-TX |
| Power Supply | 100–240 VAC |
| Power Consumption | Idling: 1.0 W; Full load: 65 W |
| PoE | |
| PoE Budget | Port 1–8 ≤ 30 W; whole PoE budget ≤ 65 W |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Pin Assignment | 1, 2, 4, 5 (V+); 3, 6, 7, 8 (V-) |
| Long Distance Transmission | DIP switch with bandwidth limit (100 Mbps/10 Mbps): up to 250 m PoE transmission after speed limitation |
| PoE Watchdog | Yes |
| Performance | |
| Switching Capacity | 2.0 Gbps |
| Packet Forwarding Rate | 1.49 Mpps |
| MAC Table Size | 2K |
| Jumbo Frame | 2048 byte |
| Communication Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Protection | |
| ESD | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lightning Protection | Common mode: 6 kV; Differential mode: 4 kV |
| Environment | |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH) |
| Structure | |
| Product Dimensions | 242.5 mm × 122.9 mm × 35.0 mm (9.55" × 4.84" × 1.38") (W × L × H) |
| Packaging Dimensions | 303 mm × 262 mm × 72 mm (11.92" × 10.31" × 2.83") |
| Net Weight | 0.76 kg (1.68 lb) |
| Gross Weight | 1.3 kg (2.87 lb) |
| Certifications | |
| Certifications | CE: EN 60950; FCC |
