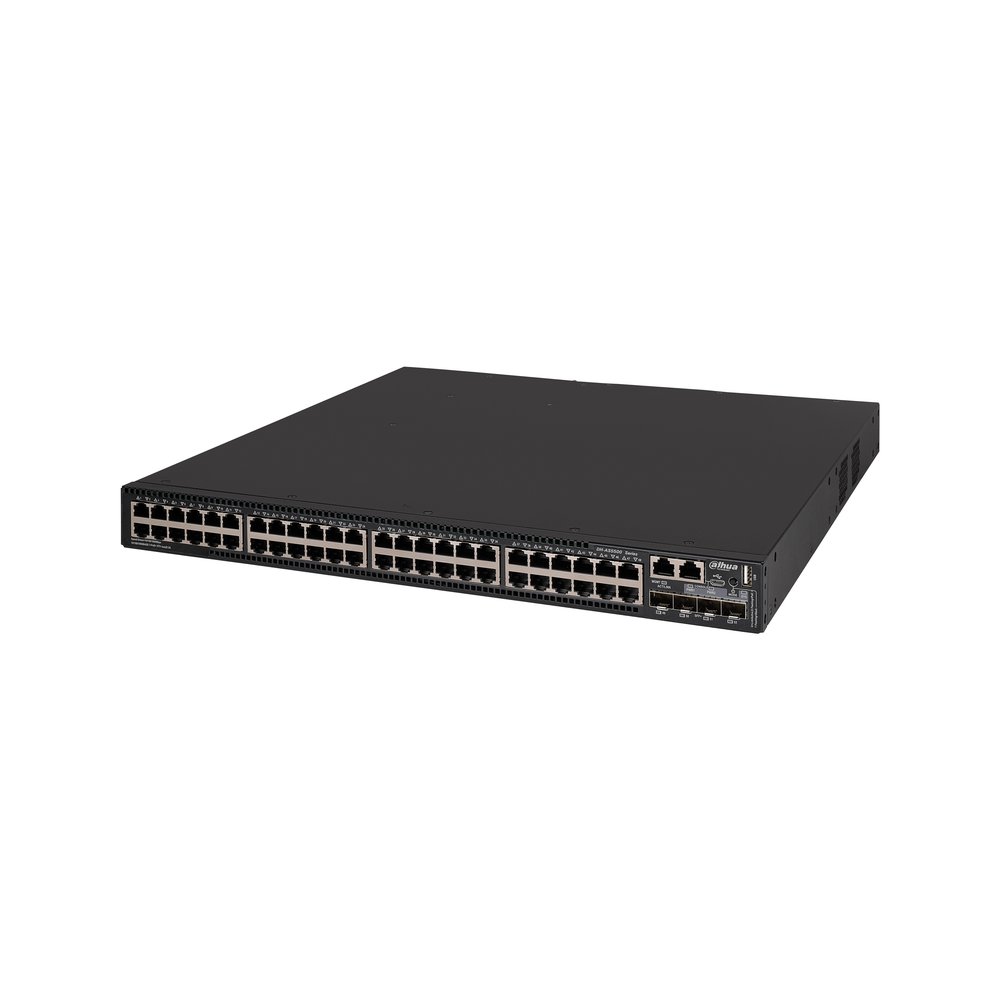

Aggregation switch PoE L3 managed con 48 porte Ethernet Gigabit (budget PoE <600 W) + 4 SFP 10 Gbps, capacità switching 176 Gbps, rate inoltro pacchetti 130.952 Mpps, IRF2, alimentazione integrata 100~240 Vac, necessario cavo seriale R-1.2.50.05.0293 (non incluso nella confezione)
Datasheet
Manuali
| Hardware | |
| Included Power Adapter | No |
| PoE | Yes |
| Ethernet Port | 48 × RJ-45 10/100/1000 Mbps |
| Optical Port | 4 × SFP+ 1/10 Gbps |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Optical Port Uplink Speed | 1/10 Gbps Port 1-48: 48 × RJ-45 10/100/1000 Mbps; |
| Description of Function Slots | Port 49-52: 4 × SFP+ 1/10 Gbps 1 × Micro-USB port 1 × Console port |
| Management port | 1 × MGT port 1 × USB port |
| Hot Plug | Yes Built-in dual power supplies: 100–240 VAC, 50/60 |
| Power Supply | Hz, 6 A |
| Operating Temperature | –5 °C to +45 °C (+23 °F to +113 °F) |
| Operating Humidity | 5%–95% (RH) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH) |
| Fanless Design | No Idling: 37 W Full load: 354 W (Single Power) |
| Power Consumption | Idling: 37 W Full load: 685 W (Dual Power) |
| Performance | |
| Layer | L3 |
| Management Type | Yes |
| MTBF | 50.24 years Box switching capacity:336 Gbps |
| Switching Capacity | Port switching capacity:176 Gbps |
| Packet Forwarding Rate | 130.952 Mpps |
| Packet Buffer Size | 24 Mbit |
| Jumbo Frame | 10K Byte |
| MAC Table Size | 16K |
| VLAN Number | 4K |
| VLAN Interface | 512 |
| IPv4 Routes | 1K |
| Dynamic ARP | 1K IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab; |
| Communication Standard | IEEE 802.3z; IEEE 802.3ad; IEEE 802.3ae |
| Poe | |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at |
| PoE Power | Port 1-48 ≤ 30 W, total power ≤ 600 W |
| PoE Power Consumption | Power consumption management; power on and |
| Management | power off; power down for overload; green PoE |
| PoE Pin Assignment | 1, 2 (V+), 3, 6 (V-) |
| Features | |
| Ring Network Protocol | RRPP ERPS Static routing IPV6 policied routing |
| Routing | RIPv1/v2/ng OSPFv2/v3 Policy based routing Port-based VLAN MAC-based VLAN Protocol-based VLAN Subnet-based VLAN |
| VLAN Function | QinQ, flexible QinQ VLAN Mapping Voice VLAN MVRP Static link aggregation Dynamic link aggregation |
| Link Aggregation | Cross-device link aggregation Gigabit Ethernet port aggregation 10 Gigabit Ethernet port aggregation |
| IEEE 802.3x Flow Control | Yes IGMP Snooping v1/v2/v3 PIM Snooping |
| Multicast | Multicast VLAN IGMP v1/v2/v3 |
| Reliability | IRF; VRRP; DLDP; LLDP; VCT ARP source suppression Dynamic ARP source detection |
| ARP | ARP anti-attack ARP detection ARP rate limit DHCP Client DHCP Snooping DHCP Relay DHCP Server |
| DHCP Function | DHCP Snooping option 82 DHCP Relay option 82 DHCP Snooping Trust DHCP Snooping entry backup |
| Security | Port isolation HWTACACS IP/Port/MAC binding IP Source Guard HTTPS Triple 802.1p/DSCP priority tag Packet filtering SP/WRR/SP+WRR queue scheduling |
| QoS/ACL | Port-based rate limit Traffic-based redirection Time range ICMPv6 Traceroute v6 Telnet v6 SSH2 v6 ND/ND snooping/ND proxy/ND detection SAVI IPv6 Portal DNS Client for IPv6 |
| IPv6 | SNMP for IPv6 RIPNG and OSPFv3 IPv6 policy routing MLD Snooping v1/v2 VRRP V3 DHCPv6 snooping/DHCPv6 client/DHCPv6 relay/ DHCPv6 server IPv6 port binding Load update files and update using Xmodem/FTP/ TFTP Configure through CLI, Telnet, and Console port SNMPv1/v2/v3 Web network management RMON alarm, RMON event, and RMON history System logs, multi-level alarms, and debug information |
| Equipment Management | HGMPv2 NTP Ping and Tracert VCT DLDP Port loopback detection Power supply, fan, and temperature alarms BFD |
| General | |
| Statics Protection | Contact discharge: 6 kV Common mode: 1 kV |
| Lighting Protection | Differential mode: 0.5 kV |
| Net Weight | ≤ 9.5 kg (20.93 lb) 440 mm × 460 mm × 43.6 mm |
| Product Dimensions | (17.32" × 18.11" × 1.72") (L × W × H) 608 mm × 576 mm × 180 mm |
| Packaging Dimensions | (23.94" × 22.68" × 7.09") (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; rack mount |
