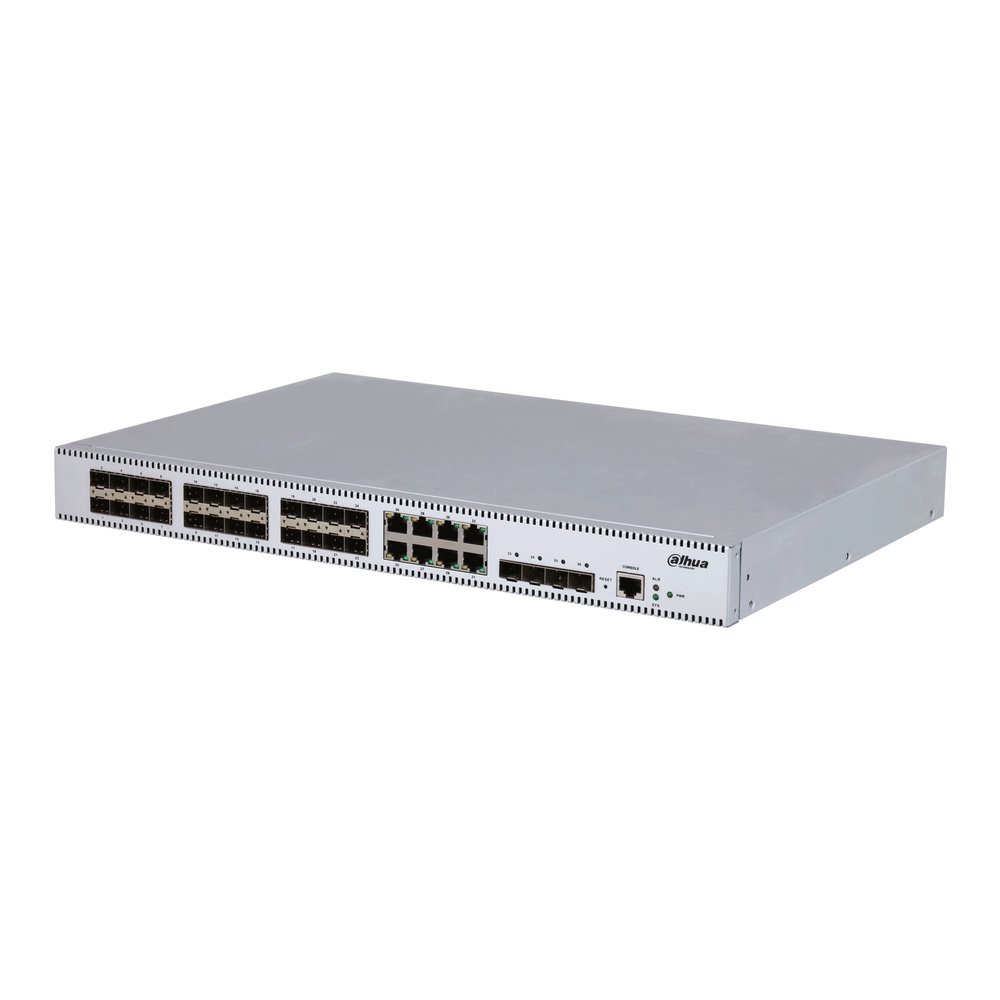

Aggregation switch managed (anche tramite Cloud) L2+ con 36 porte Gigabit (8 RJ-45 10/10/100 Mbps + 24 SFP 10/100/1000 Mbps + 4 SFP+ 1/10 Gbps), capacità switching 144 Gbps, rate inoltro pacchetti 107.136 Mpps, 100~240 Vac, alimentatore incluso
Datasheet
Manuali
| Basic | |
| Layer | 144 Gbps |
| Switching Capacity | 107.136 Mpps |
| Packet Forwarding Rate | Port 1-24: 24 × SFP 100/1000 Mbps Port 25-32: 8 × RJ-45 10/100/1000 Mbps |
| Description of Function Slots | Port 33-36: 4 × SFP+ 1/10 Gbps –20 °C to +55 °C (–4 °F to +131 °F) |
| Operating Temperature | 5%–95% (RH), non-condensing |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Humidity | 2 built-in power supplies: 100–240 VAC, 50/60 Hz, |
| Power Supply | 2.5 A Max Idling load: 23.8 W |
| Power Consumption | Full load: ≤ 100 W Air discharge: 8 kV; |
| Statics Protection | Contact discharge: 6 kV Common mode: 4 kV; |
| Lightning Protection | Differential mode: 2 kV 3.8 kg (8.38 lb) |
| Net Weight | 5.3 kg (11.68 lb) |
| Gross Weight | 440 mm × 308.3 mm × 44.0 mm (17.32" × 12.14" × |
| Product Dimensions | 1.73") (L × W × H) 528 mm × 412 mm × 112 mm (20.79" × 16.22" × 4.41") |
| Packaging Dimensions | (L × W × H) Rack mount; desktop mount |
| Hardware | |
| Debugging | 1 × Console port |
| Reset Button | 1 |
| Performance | |
| Packet Buffer Size | 16 Mbit |
| Jumbo Frame | 12288 Byte |
| MAC Table Size | 32K IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; |
| Communication Standard | IEEE 802.3z; IEEE 802.3ad |
| VLAN Number | 4094 |
| VLAN Interface | 10 |
| Feature | |
| Ethernet Loop Protection | STP/RSTP/ERPS |
| VLAN Function | Port-based VLAN LACP |
| Link Aggregation | Static link aggregation Dynamic link aggregation IEEE 802.3x flow control Unknown unicast suppression |
| Port Feature | Multicast storm control Broadcast storm control |
| IEEE 802.3x Flow Control | IGMP Snooping |
| Multicast | LLDP |
| Reliability | Static routing |
| Routing | DHCP Client |
| DHCP Function | 802.1X Port isolation |
| Security | Radius HTTPS SP/WRR queue scheduling |
| QoS/ACL | 802.1p and DSCP priority mapping Port speed limit Cloud management Web SNMP V1/V2C/V3 |
| Equipment Management | NTP Logs Ping |
| General | |
| Packing List | 1 × List of Hazardous Substances 1 × Power Cord 1 × Rack-mounting Kit |
| Ordering Information | |
| Type | Model Description GSFP-RJ45 Gigabit RJ45 SFP Module GSFP-1310T-20-SMF Gigabit 1310/1550nm,20km,LC, Single-mode GSFP-1310R-20-SMF Gigabit 1550/1310nm,20km,LC, Single-mode GSFP-1310-20-SMF Gigabit 1310nm,20km,LC, Single-mode GSFP-850-MMF Gigabit 850nm,550m,LC, Multi-mode |
| SFP module | TSFP-1270T-20-SMF 10G 1270/1330nm,20km,LC, Single-mode TSFP-1270R-20-SMF 10G 1330/1270nm,20km,LC, Single-mode TSFP-1310-20-SMF 10G 1310nm,20km,LC, Single-mode TSFP-1550-40-SMF 10G 1550nm,40km,LC, Single-mode TSFP-850-MMF 10G 850nm,300m,LC, Multi-mode |
| Dimensions (Mm[Inch]) | |
| [1.73] | 440.0 [17.32] |
