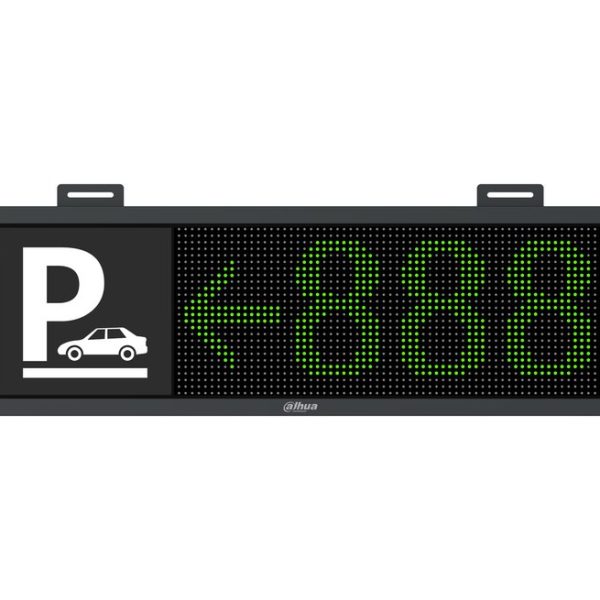

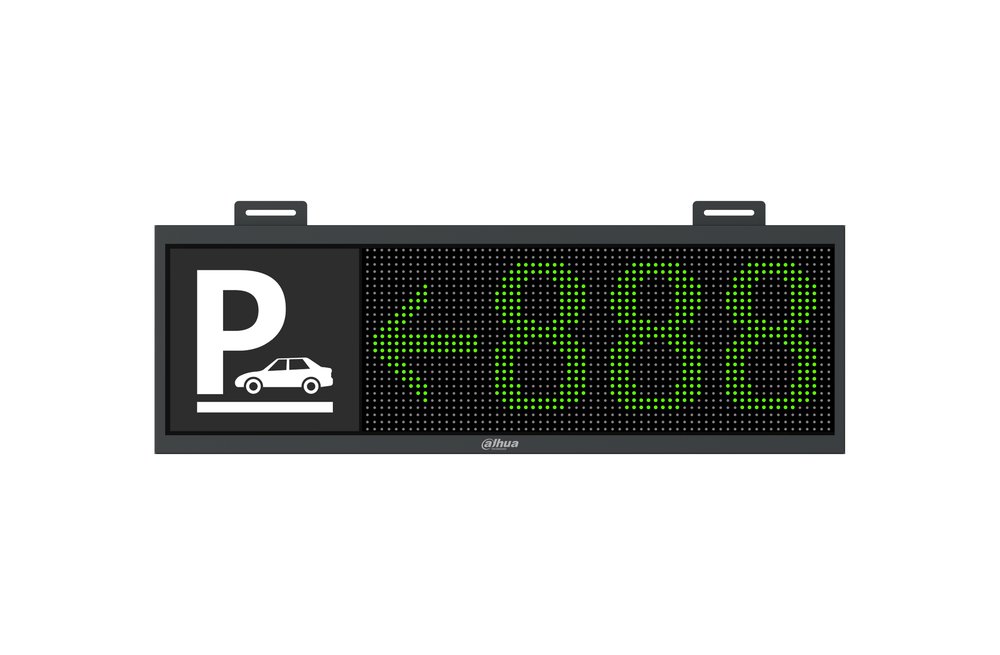

Pannello LED parking spot mono direzione da interno IP50 per indicazione posti auto disponibili, 2048 dot, luminosità 1000 nit, 1 freccia (avanti, sinistra, destra) + 3 cifre, LED rossi, verdi e gialli, 1 porta LAN 10/100 Mbps, installazione a soffitto, alimentazione 100~240 Vac <35 W
| Basic | |
| Display Screen | LED (display in red, green and yellow) |
| Display Screen Dimensions | 488 mm × 244 mm (17.64" × 9.61") (L × W) |
| Display Contents | English letters, Chinese characters, numbers and arrows |
| Pixels Configuration | 1R1PG 2,048 dots (64 × 32, 4 English letters per line), dot |
| Screen Resolution | splicing: 7.62 mm (0.3") |
| Display Screen Lifespan | 100,000 h |
| Brightness | 1000 cd/ ㎡ |
| Port | |
| Network Port | 1× 100 Mbps RJ-45 Ethernet port |
| General | |
| Power Supply | 100–240 VAC |
| Power Consumption | <35 W |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Storage Temperature | –35 °C to +60 °C (–31 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Humidity | 10%–90%, non-condensing |
| Protection | IP50 757 mm × 65 mm × 277 mm (29.80" × 2.56" × 10.91") (L |
| Product Dimensions | × W × H) 880 mm × 370 mm × 195 mm (34.65" × 14.57" × 7.68") |
| Packaging Dimensions | (L × W × H) |
| Net Weight | 5.5 kg (12.13 lb) |
| Gross Weight | 6.5 kg (14.33 lb) |
| Installation | Ceiling mount |
