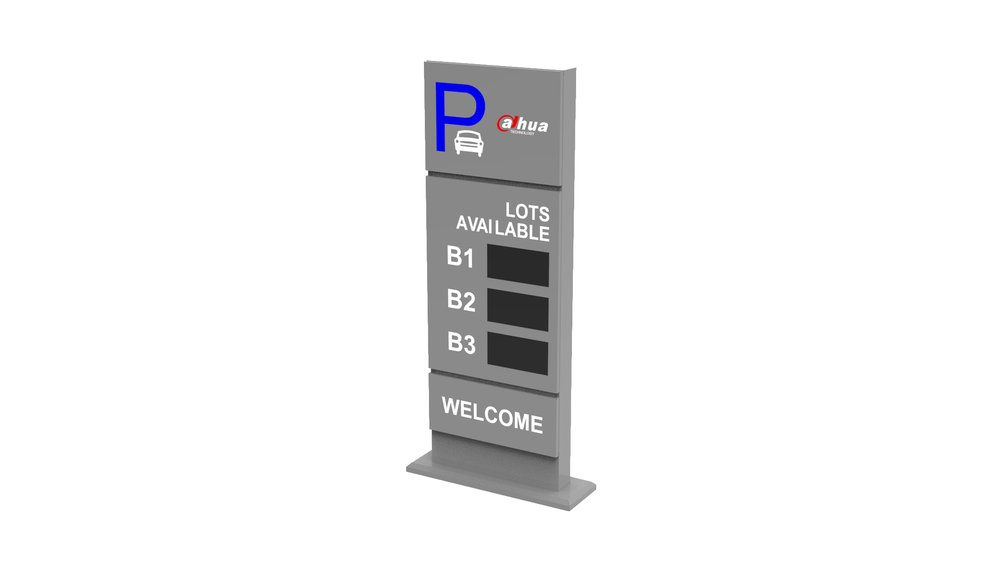

Pannello LED parking spot da esterno IP54 con indicazione numero parcheggi per piano, 3 layer da 4 cifre (12 totali), 3 porte RJ45, alimentazione 100~240 Vac <90 W
Datasheet
Manuali
| Basic | |
| Display Screen Type | LED |
| Display Color | Display in red, green, and yellow |
| Display Screen Dimensions | × × × 320 mm 480 mm (12.60" 18.90") (L W) |
| Display Contents | Displays the available number of parking spaces |
| Pixels Configuration | 1R1PG |
| Screen Resolution | × 1536 dots (32 48); 3 lines; pixel pitch: 10 mm (0.39") |
| Display Screen Lifespan | 100,000 h |
| Brightness | 6000 cd/ ㎡ |
| Port | |
| Network Port | 3 ports, 100 Mbps Ethernet port (RJ-45) |
| General | |
| Power Supply | – 100 240 VAC |
| Power Consumption | 90 W |
| Operating Temperature | – ° ° – ° ° 30 C to +60 C ( 22 F to +140 F) |
| Operating Humidity | – 10% 90% (RH), non-condensing |
| Protection | IP54 × × × × 2,000 mm 700 mm 140 mm (78.74" 27.56" |
| Product Dimensions | × × 5.51") (L W H) |
| Ordering Information | |
| Type | Part Number Description |
| Information Display | DHI-IPMPGI-231AB Outdoor LED Screen |
