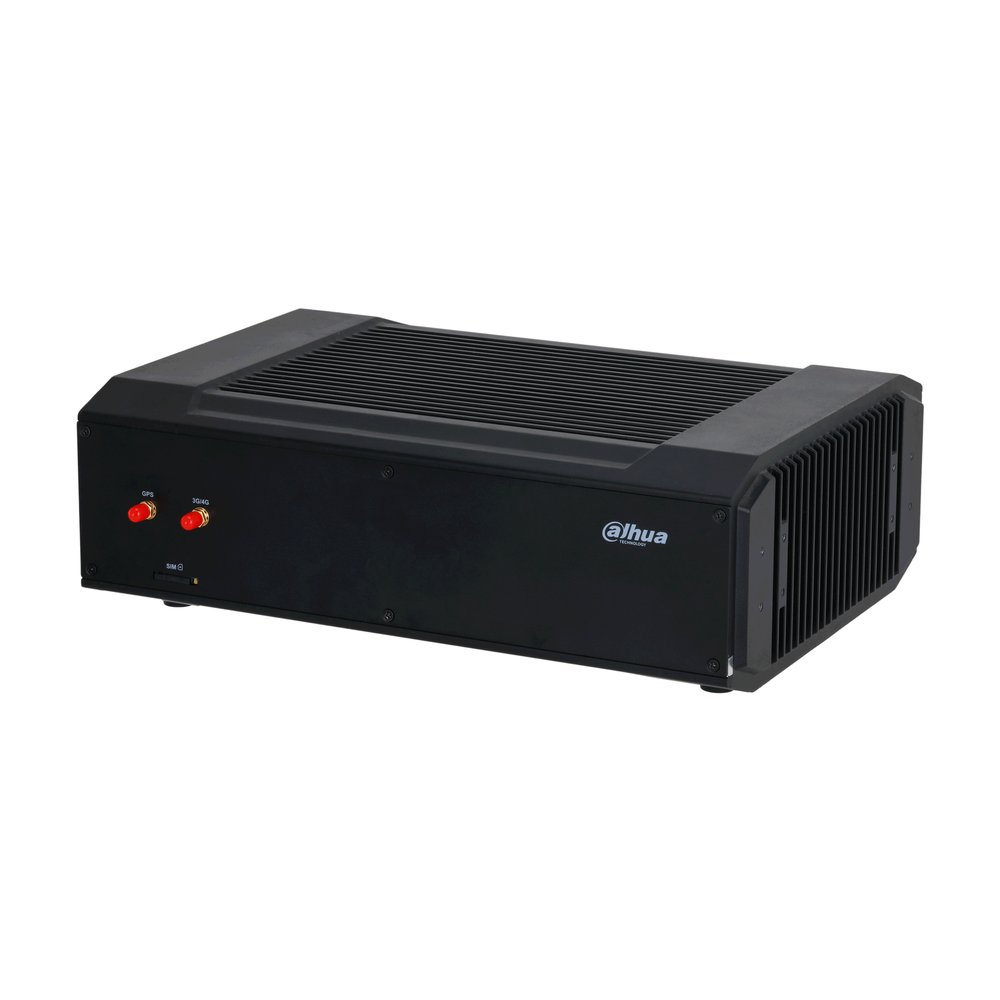

Edge storage 16/12 ch HD/ANPR 4 HDD
Edge storage 16 ch HD/12 ch ANPR (composite), memoria 2 GB, 4 HDD (4 TB cad.), 2 porte RS232, 4 porte RS485, 2 porte USB 3.0, 18 porte LAN (2 Gigabit), 2 porte ottiche, 1 slot SIM, 4 ingressi e 4 uscite (optoaccoppiatori) allarme, 1 ingresso e 1 uscita audio, 4G, GPS/BDS, Dual NICs, alimentazione 12 Vdc <40 W
Datasheet
| Basic | |
| Operating System | Linux |
| Operating Interface | Web client TCP/IP; HTTP; HTTPS; SFTP; FTP; DNS; RTP; RTSP; RTC; |
| Network Protocol | NTP; DHCP; IEEE 802.1X |
| Image Encoding Format | JPEG |
| Main Processor | High-performance embedded processor |
| Memory | 2 GB |
| Power Switch | 1 power switch 1 × on/off status; 1 × operation status; 1 × alarm |
| Indicator Light | indicator; 1 × disk read/write indicator |
| Storage | |
| OSD Overlay | type, seatbelt status, call, GPS information, remote device GPS, section information and code, section distance and speed limit, entry and exit time, entry and exit lane, and more. |
| Positioning | GPS; BDS Supports combining 1 to 6 source images into a composite image by using normal and related composition functions. Related channels can be set to match target images across channels, so that a composite image can be developed providing an overall impression of the target. |
| Composite Image | Supports 3 strategies for matching: ID matching, plate matching, and a combination of matching the ID first, and then the plate. Supports fuzzy match by vehicle type, vehicle lane, plate color, and vehicle color. Customize the order that images are merged in and the close-up image number. |
| Automatic Network | Platform and FTP; manual upload |
| Auto Registration | Yes Yes. Import and export allowlist and blocklist files and |
| Restricted List/Trusted List | perform fuzzy search of vehicles on the list by plate number. |
| Anti-deletion | Yes. Videos and images cannot be directly deleted. Search by time, channel, plate, speed, lane, target type, plate color, vehicle color, and violation type such as not |
| Vehicle Search | wearing seatbelt and calling while driving. Fuzzy search is supported. Export results in CSV and EXCEL format. Storage full, external alarm, license plate blocklist, illegal |
| Alarm Event | access, and security fault alarm. |
| Built-in Software | Edge Storage Device Software 4G_LTE FDD: B1/B3/B5/B7/B8/B20/B28 |
| Mobile Network | 4G_LTE TDD: B38/B40/B41 |
| Frequency Band | 3G_WCDMA: B1/B5/B8 2G_GSM: B3/B5/B8 |
| Port | |
| HDD Interface | 4× 4 TB disk (included); supports max. 4 SATA 3.5" disks. |
| RS-232 | 2, one of them is for debugging data from the serial port. |
| RS-485 | 4 |
| USB | 2 USB 3.0 Ports 18 (2 × RJ-45 Ethernet port 10/100/1000 M network |
| Network Port | transmission and 16 × RJ-45 Ethernet port 10/100 M network transmission) 2, 1000 M SFP fiber port. Dual NICs G1/G2 on the same |
| Optical Fiber | network segment. |
| SIM Card | 1 |
| Antenna | 2 |
| Audio Input | 1 × 3.5 mm port |
| Audio Output | 1 × 3.5 mm port Supports 16-ch HD video input in video access mode and |
| Video Input | 12-ch input in ANPR Composite mode. |
| Alarm Input | 4 |
| Alarm Output | 4 (optocoupler) |
| Power Output | 1, 12 VDC |
| General | |
| Power Supply | 12 VDC |
| Power Consumption | <40 W |
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing 355.0 mm × 267.5 mm × 118.5 mm (13.98" × 10.53" × |
| Product Dimensions | 4.67") (L × W × H) |
| Net Weight | 7.5 kg (16.53 lb) |
| Gross Weight | 10.5 kg (23.15 lb) |
| Installation | Rack mount; desktop mount |
| Ordering Information | |
| Type | Model Description DHI-ITSE1200- Edge Storage Terminal, total HDD capacity 2 TA-G02 T, supports 4G DHI-ITSE1200- Edge Storage Terminal, total HDD capacity 4 TA-G04 T, supports 4G DHI-ITSE1200- Edge Storage Terminal, total HDD capacity 8 TA-G08 T, supports 4G DHI-ITSE1200- Edge Storage Terminal, total HDD capacity TA-G16 16 T, supports 4G |
| Terminal | DHI-ITSE1200- Edge Storage Terminal, total HDD capacity TA-N02 2 T DHI-ITSE1200- Edge Storage Terminal, total HDD capacity TA-N04 4 T DHI-ITSE1200- Edge Storage Terminal, total HDD capacity TA-N08 8 T DHI-ITSE1200- Edge Storage Terminal, total HDD capacity TA-N16 16 T |
