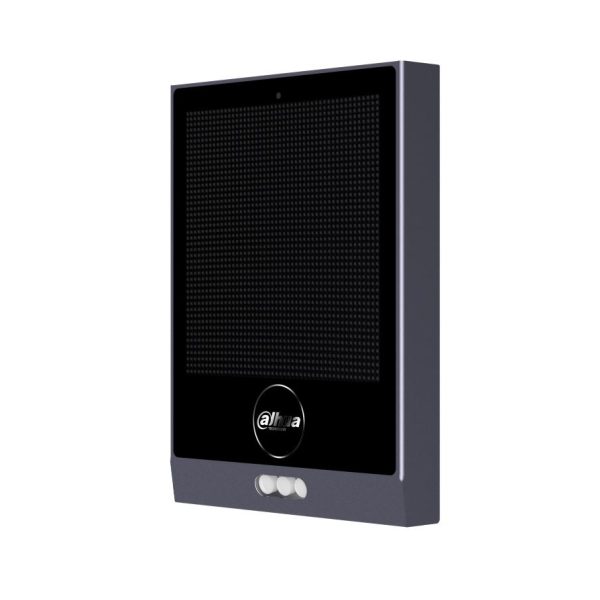

Display LED entrance & exit IP54, risoluzione 64×64 pixel, 4096 dot, luminosità 1500 nit, 3 LED rossi verdi e gialli, 1 porta RS485, 1 ingresso audio, installazione a palo, alimentazione 100~240 Vac <40 W
Datasheet
Manuali
| Basic | |
| Monitor | LED (displays in red, green and yellow) |
| Dimensions | 304 mm × 304 mm (11.97" × 11.97") (L × W) Displays license plate information, time, charge information, remaining parking space, custom |
| Display Content | information, etc. |
| Pixels Configuration | 1R1PG 4,096 dots (64 × 64); 4 lines; pixel pitch: 4.75 mm |
| Resolution | ( 0.19") |
| Service Life | 100,000 hours |
| Screen Brightness | 1,500 cd/m (adjustable) 2 |
| Number of LED | 3 |
| Function | |
| Screen Bad Pixel Detection | Yes |
| External Port | |
| RS-485 | 1 |
| Audio Input | 1 channel |
| General | |
| Power Supply | 100 V–240 V AC |
| Power Consumption | < 40 W |
| Operating Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Operating Humidity | 10%–90% (non-condensing) |
| IP Rating | IP54 364 mm × 484 mm × 60 mm (14.33" × 19.06" × |
| Product Dimensions | 2.36") (L × W × H) |
| Net Weight | 7 kg (15.43 lb) |
| Gross Weight | 8 kg (17.64 lb) |
| Installation | Pole mount (bracket) |
| Ordering Information | |
| Type | Model Description |
| LED Display | DHI-ITSXS-1201-44 Industrial entrance and exit LED display |
| Installation | |
| Four-core signal cord | Corrugated pipe joint AD18.5-M20 x 1.5 |
| Pole mount bracket | Corrugated pipe |
| combination screw | . Pictures in the document are for reference only, and the actual product shall prevail. |
