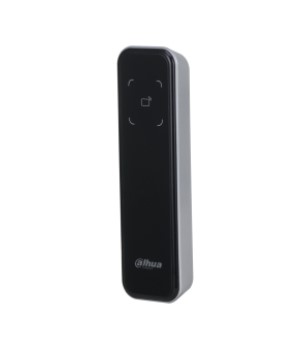

Lettore per controllo accessi slim IP66, sblocco tramite card Mifare da 13.56 MHz, RS485 e Wiegand 26 (opzionale) / 34, tamper, alimentazione 12 Vdc
Datasheet
Manuali
| Basic | |
| Product Type | Slim Card Reader |
| Buzzer | Yes |
| Casing | Tempered glass/PC |
| Function | |
| Unlock Mode | Card swiping |
| Card Type | IC card |
| Modulation Type | AM |
| Frequency Range | 13.56 MHz |
| Max Transmission Power | 42 dBuA/m @10 m |
| Performance | |
| Response Time | 0.1 s |
| Card Reading Distance | 0 cm–5 cm (0"–1.97") |
| Port | |
| RS-485 | 1 channel |
| Wiegand | 1 output channel |
| Alarm | |
| Tamper Alarm | Yes |
| Tamper Alarm | Yes |
| General | |
| Power Supply | 12V 0.5A DC |
| Protection | IP66 (silicon sealant is needed, see the manual) |
| Power Consumption | Standby ≤ 0.9W, working ≤ 1.7W 135 mm × 40 mm × 15 mm (5.31" × 1.57" × 0.59") (L × |
| Product Dimensions | W× H) 195 mm × 75 mm × 52 mm (7.68" × 2.95 × 2.05") (L × W× H, 1 in inner carton) |
| Packaging Dimensions | 415 mm × 400 mm × 230 mm (16.34" × 15.75" × 9.06") (L × W × H, carton) |
| Operating Temperature | –30°C to +70°C (–22°F to +158°F) |
| Operating Humidity | 5%RH–95% (non-condensing) |
| Operating Environment | Indoor; outdoor |
| Gross Weight | 0.16 kg (0.35 lb) |
| Installation | Surface mount |
| Ordering Information | |
| Type | Model Description |
| Access | DHI-ASR2200A Outdoor Waterproof DHI-ASR2200A |
| Reader | IC Card Reader Slim Model |
| Application | |
| Management | Switch |
| Platform | Access Controller |
| Lock | Exit Button Card Reader Alarm Light |
