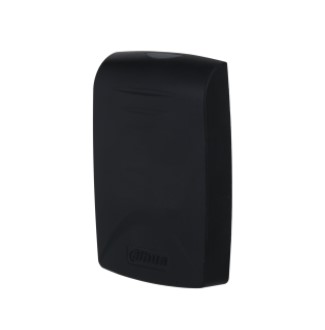

Lettore per controllo accessi IP67, sblocco tramite card 125 kHz, RS485 e Wiegand, allarme antimanomissione, alimentazione 9~15 Vdc
| Basic | |
| Product Type | Card reader |
| Buzzer | Yes |
| Casing Material | PC + ABS |
| Card | |
| Card Type | ID card |
| Performance | |
| Response Time | 0.1 s |
| Card Reading Distance | – – 0 cm 3 cm (0" 1.18") |
| Port | |
| RS-485 | Yes |
| Wiegand | Yes |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Power Supply | – 9 15 VDC, 100 mA |
| Protection | IP67 (silicon surface treatment needed, see the manual) |
| Power Consumption | ≤ ≤ 0.9 W (standby), 1 W (working) × × × × × 102 mm 72 mm 18 mm (4.02" 2.83" 0.71") (W |
| Product Dimensions | × H D ） × × × × 168 mm 120 mm 52 mm (6.61" 4.72" 2.05") |
| Packaging Dimensions | × × (W H D ） |
| Operating Temperature | ° ° ° ° -30 C to +60 C (-22 F to 140 F) Pictures in the document are for reference only, and the actual product shall prevail. |
| Operating Humidity | – 0% 95% (RH), non-condensing |
| Operating Environment | Indoor/outdoor |
| Gross Weight | 0.17 kg (0.37 lb) |
| Installation | Surface Mount |
| Ordering Information | |
| Type | Part Number Description Dahua Card Swiping Access |
| Access Reader | DHI-ASR1100B-D-V1 Reader |
