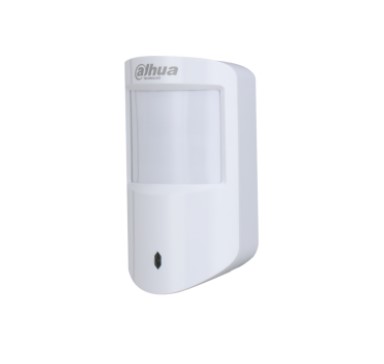

Sensore di movimento dual-tech (PIR/microonda 24G) wireless, 1 indicatore di stato luminoso, allarme antimanomissione, update remoto tramite cloud, segnalazione batteria scarica, pet immunity (<18 kg, <50 cm), comunicazione bidirezionale, crittografia AES128, frequenza portante 868~868.6 MHz, batteria CR123A <615 mW (durata 3 anni)
| Function | |
| Indicator Light | 1 × green alarm indicator |
| Button | 1 × power switch |
| Remote Update | Cloud update |
| Low Battery Detection | Yes |
| Tamper | Yes |
| Measuring Range | Indoor: –15 °C to +65 °C (+5 °F to +149 °F) |
| Measuring Accuracy | ±1 °C (±1.8 °F) |
| Technical | |
| Sensor | sensor |
| Detection Mode | PIR + Microwave |
| Sensitivity | 3 levels adjustable 12 m (39.37 ft) (90°) with installation height of 2.2 |
| Detection Range | m (7.21 ft) |
| Detection Speed | 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s) |
| Microwave Frequency | 24 G |
| Pet Immunity Level | ≤ 18 kg (39.68 lb), height < 50 cm (19.68 ft) |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Transmitter Power (EIRP) | Limit 25 mW |
| Communication Mechanism | Two-way Up to 1,600 m (5,249.34 ft) in an |
| Communication Distance | open space |
| Encryption Mode | AES128 |
| Frequency Hopping | Yes |
| General | |
| Power Supply | CR123A × 1 3 years (If triggered 10 times a day with a battery |
| Battery Life | efficiency of 70%) |
| Power Consumption | Max. 615 mW Indoor: –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Temperature | Certified temperature: –10 °C to +40 °C (+14 °F to +104 °F) |
| Operating Humidity | 10%–90% (RH) 104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × |
| Product Dimensions | 1.97") 135.0 mm × 98.5 mm × 56.8 mm (5.31" × 3.88" × |
| Packaging Dimensions | 2.24") |
| Net Weight | 106 g (0.23 lb) |
| Gross Weight | 184 g (0.41 lb) |
| Installation | Wall mount, Ceiling mount (With the bracket ARA33) |
| Casing Material | PC + ABS CE EN 50131-1:2006+A1:2009+A2:2017+A3:2020 EN 50131-6:2017+A1:2021 |
| Ordering Information | |
| Type | Part Number |
| Wireless | DHI- Wireless Dual-Tech Detector |
| Dual-Tech | ARD2231-W2(868) |
