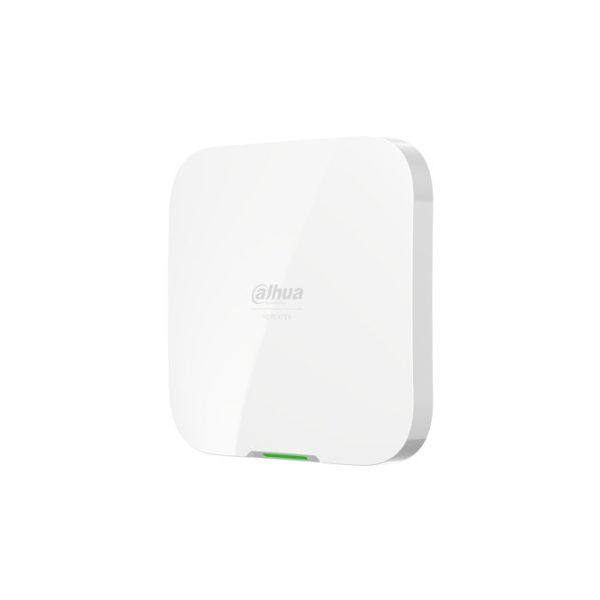

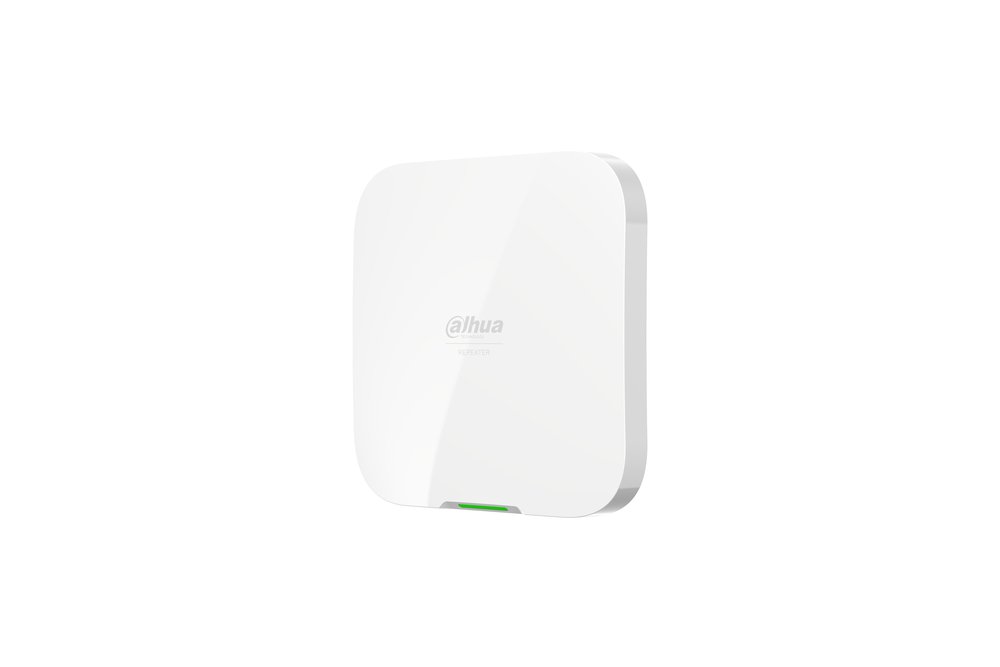

Ripetitore allarme Pro wireless, 128 periferiche collegabili, 1 porta RJ-45 10/100 Mbps, 1 indicatore luminoso, tasto accensione, reset e AP switch, allarme antimanomissione, update remoto tramite cloud, segnalazione batteria scarica, frequenza portante 868~868.6 MHz, comunicazione bidirezionale, crittografia AES128, salto di frequenza, alimentazione 100-240 Vac, batteria ausiliaria al litio
Datasheet
Disegni
| Port | |
| Wireless Peripheral | 128 wireless peripherals |
| Network Mode | Ethernet and Wi-Fi |
| Network Port | 1 RJ-45, 10 Mbps/100 Mbps Ethernet port |
| Storage Battery | One built-in 4,750 mah rechargeable lithium battery |
| Function | |
| Indicator Light | 1 indicator for indicating pairing and working status Includes a reset button, power button and AP switch |
| Button | button |
| Remote Update | Cloud update |
| Low Battery Detection | Yes |
| Tamper | Yes |
| Pairing Mode | Auto/Manual |
| Technical | |
| Operating Current | 220 VAC, 8.6 mA (standby) |
| Wireless | |
| Carrier Frequency | RF-HD (normal speed): 865-868 MHz RF-HD (high speed): 2400-2483.5 MHz |
| Encryption Mode | AES128 |
| Frequency Hopping | Yes |
| General | |
| Power Supply | 100–240 VAC, 50/60 Hz 35 hours(only connected to the Hub through Airfly and normal speed RH-HD) |
| Standby Time | 18 hours(connected to the Hub through Ethernet, Wi-Fi or high speed RF-HD) |
| Power Consumption | 22 W (max) 1.9 W (standby) When battery is not charging: –10 °C to +50 °C (+14 °F |
| Operating Temperature | to +122 °F) When battery is charging : 0 °C to +45 °C (+32°F to +113 °F) |
| Operating Humidity | 10%–90% (RH) 174.8 mm × 174.8 mm × 38.3 mm (6.88" × 6.88" × |
| Product Dimensions | 1.51") (L × W × H) |
| Net Weight | 510 g (1.12 lb) |
| Gross Weight | 860 g (1.90 lb) |
| Installation | Supports wall mount and desktop mount installation |
| Casing Material | PC + ABS |
| Certifications | |
| Storage Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Humidity | 10%–90% (RH) |
| Packaging Dimensions | 524 mm × 508 mm × 442 mm (20.63" × 20.00" × 17.40") (L × W × H), protective case |
| Wi-Fi | |
| Wi-Fi Standard | IEEE 802.11b/g/n/ax |
| Wi-Fi Frequency Range | 2400-2483.5 MHz |
| Wi-Fi Power Transmission | ≤20 dBm@2400-2483.5 MHz |
| Ordering Information | |
| Type | Model Description Alarm Repeater Pro(Only |
| Alarm Repeater Pro | DHI-ARA46-N-W2(868) compatible with ARC3800H series) |
