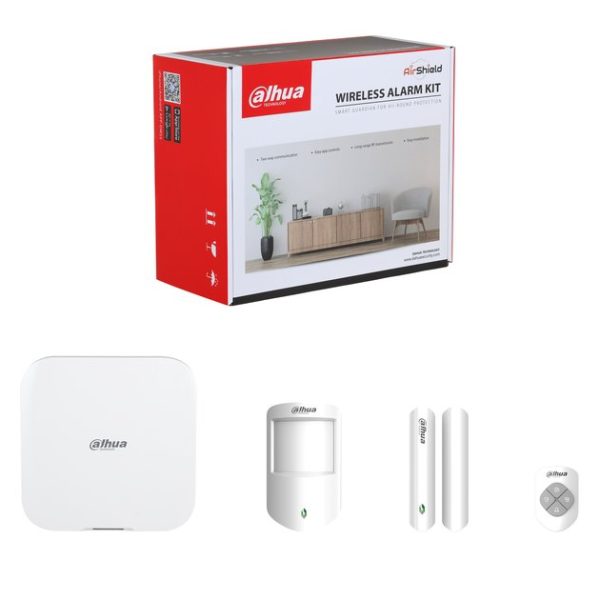

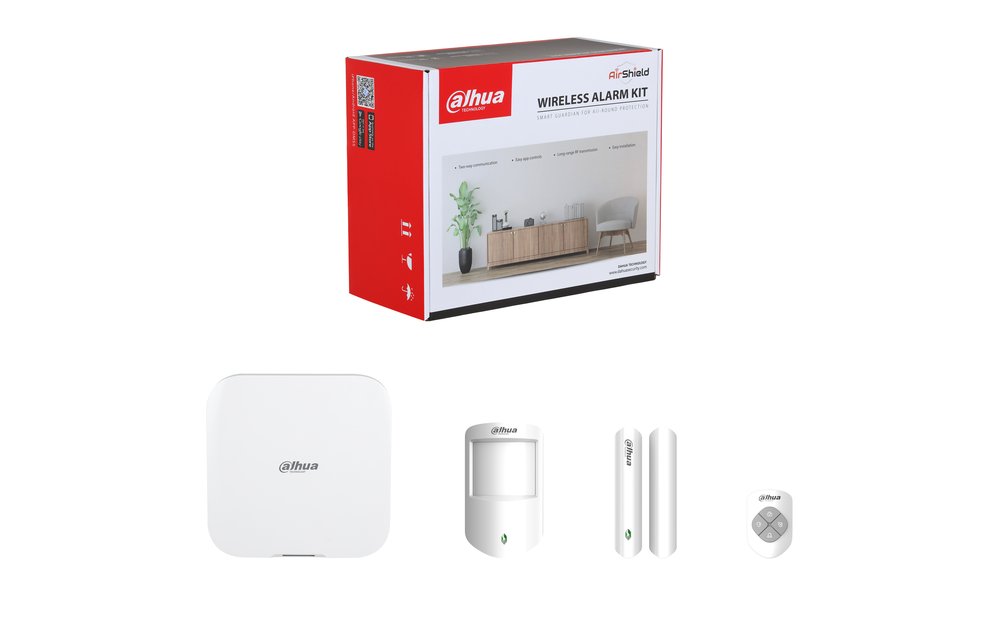

KIT Allarme Wireless Dahua
Codice produttore: DHI-ART-ARC3800H-03-FW2(868)
Datasheet
Disegni
| Port | |
| Wireless Zone | cameras(only 8 indoor PIR cameras), 64 keyfobs, 8 keypads and 4 repeaters) Hub:Ethernet, Wi-Fi and Cellular network(Supports |
| Network Mode | installation of dual SIM cards. Only one card can be enabled at a time) |
| Network Port | Hub: 1 RJ-45, 10 Mbps/100 Mbps Ethernet port. Hub: One built-in 4,750 mAh rechargeable lithium |
| Storage Battery | battery. |
| Video & Audio | |
| Video Input | videos. |
| Audio Output | Hub: 1 channel |
| Volume Control | Hub: Yes |
| Voice Broadcast | Hub: Telephone and local speaker |
| Button | Keyfob: 4 (Home, Away, Disarm, and SOS) Door Detector: 1 power switch PIR Detector: 1 power switch |
| SMS | Hub: Yes (up to 5 phone numbers) |
| Phone Call | Hub: Yes (up to 5 phone numbers) |
| Video Linkage | Hub: Yes |
| Offline Cache | Hub: Stores up to 50 alarm messages. Hub: App, Keypad, remote control, card, scheduled |
| Arm and Disarm | arming and disarming. |
| Remote Update | All: Cloud update |
| Low Battery Detection | All: Yes Hub: Yes Door Detector: Yes PIR Detector: Yes Hub: Yes |
| Tamper | Door Detector: Yes PIR Detector: Yes |
| User Management | installer) and 32 keypad users |
| Logs | Hub: Up to 5, 000 entries Door Detector: –15 °C to +65 °C (+5 °F to +149 °F) |
| Measuring Range | (indoor) |
| (Temperature) | PIR Detector: –15 °C to +65 °C (+5°F to +149 °F) (indoor) |
| Transmission Protocol | Hub: SIA, SoftGuard |
| Technical | |
| Sensor | PIR Detector: Dual elements low-noise PIR sensor |
| Detection Mode | PIR Detector: PIR |
| Sensitivity | PIR Detector: 3 levels adjustable PIR Detector: 12 m (39.37 ft) (90°) with installation |
| Detection Range | height of 2.2 m (7.21 ft) |
| Detection Speed | PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s) |
| Movement Distance | Door Detector: < 40 mm (1.57") |
| Pet Immunity Level | PIR Detector: ≤ 18 kg (39.68 lb) |
| White Light Resistance | PIR Detector: 6500 lx |
| Two-way Digital | PIR Detector: Yes, no attenuation of detection distance in high temperature. |
| Scenario | Door Detector: Non-metal doors |
| Wireless | |
| Carrier Frequency | All: 868.0 MHz–868.6 MHz |
| Transmitter Power (EIRP) | All: Limit 25 mW |
| Communication Mechanism | All: Two-way Hub: Up to 2,000 m (6561.68 ft) in an open space. Keyfob: Up to 900 m (2952.76 ft) in an open space. Door Detector: Up to 1,200 m (3937.01 ft) in an open |
| Communication Distance | space. PIR Detector: Up to 1,600 m (5249.34 ft) in an open space. |
| Encryption Mode | All: AES128 |
| Frequency Hopping | All: Yes |
| General | |
| Language | and Danish. It is set as English by default. The alarm voice message feature and local speaker support English and Italian. Hub: 100-240 VAC, 50/60 HZ Keyfob: CR2032 battery |
| Power Supply | Door Detector: CR123A battery PIR Detector: CR123A battery Hub:The battery lasts up to 12 hours when it is fully charged and is within the following conditions: It is connected to the Wi-Fi, its ID is connected to the alarm receiving center, the heartbeat interval is 1,800 |
| Standby Time | seconds, and it is connected to 8 peripherals and the cloud. Keyfob: 3 years Door Detector: 4 years PIR Detector: 4 years |
| Power Consumption | Keyfob: 40 mA(Max), 0.5 uA (Standby) Door Detector: 42 mA(Max), 29 uA (Standby) PIR Detector: 44 mA(Max), 34 uA (Standby) |
| Operating Temperature | All: –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | All: 10%–90% (RH) Hub: 174.8 mm × 174.8 mm × 38.3 mm (6.88” × 6.88” × 1.51”) (L × W × H) Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (2.36" × 1.56" × 0.59") (L × W × H) |
| Product Dimensions | Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80") (L × W × H) PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H) Hub: 510 g (1.12 lb) Keyfob: 20 g (0.04 lb) |
| Net Weight | Door Detector: 70 g (0.15 lb) PIR Detector: 100 g (0.22 lb) |
| Gross Weight | Kit: 1.46 kg (3.22 lb) Hub: Wall mount; Desktop mount |
| Installation | Door Detector: Bracket mount PIR Detector: Wall mount |
| Casing Material | All: PC + ABS Hub: CE EN 50131-1:2006+A1:2009+A2:2017+A3:2020 EN 50131-3:2009 EN 50131-6:2017+A1:2021 EN 50131-5-3:2017 EN 50131-10: 2014 EN 50136-2: 2013+A1:2023 Security Grade 2 Environmental Class II ATS category: SP2/DP2 Keyfob: CE EN 50131-1:2006+A1:2009+A2:2017+A3:2020 EN 50131-6:2017 EN 50131-5-3:2017 EN 50131-3:2009 |
| Certifications | |
| Anti-corrosion Level | Basic Protection |
| Storage Temperature | All: –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Humidity | All: 10%–90% (RH) Kit: 270 mm × 218 mm × 122 mm (10.63" × 8.58" × |
| Packaging Dimensions | 4.80") (L × W × H) |
| Wi-Fi | |
| Wi-Fi Standard | Hub:IEEE 802.11b/g/n |
| Wi-Fi Frequency Range | Hub:2400-2483.5 MHz |
| Wi-Fi Power Transmission | Hub:≤20 dBm@2400-2483.5 MHz |
| Cellular Network | |
| Transmitter Power (EIRP) | （ ） 2G: Power class0: 30 dBm±3dB GSM900 （ ） Power class5: 33 dBm±3dB GSM1800 |
| Cellular Network Standard | Hub:GSM/WCDMA/LTE Hub: RU: ： 4G FDD-LTE: B1/B3/B7/B8/B20/B28; TDD-LTE: B38/B40/B41; ： 3G WCDMA: B1/B5/B8; ： 2G GSM: 1,800/900MHz; |
| Frequency Range | Hub: EU: ： 4G FDD-LTE: B1/B3/B7/B8/B20/B28A; TDD-LTE: B38/B40/B41; ： 3G WCDMA: B1/B8; ： 2G GSM: 1,800/900MHz; |
| Ordering Information | |
| Type | Model Description DHI-ART-ARC3800H-03- |
| Alarm KIT | Dahua Wireless Alarm KIT FW2(868) |
| Application | |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
