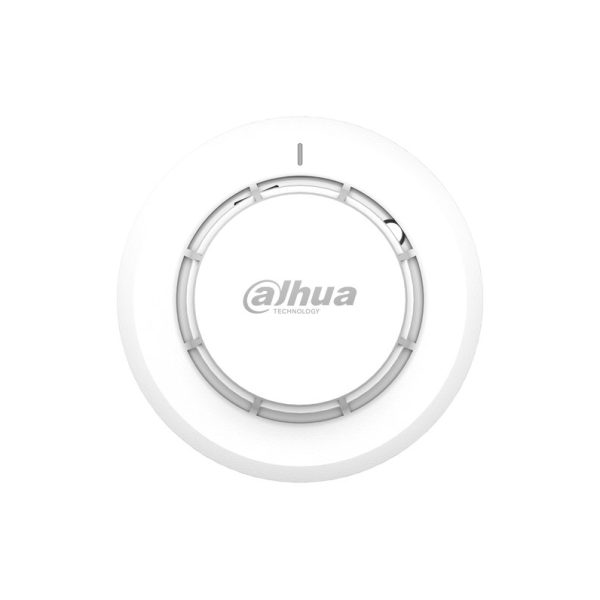

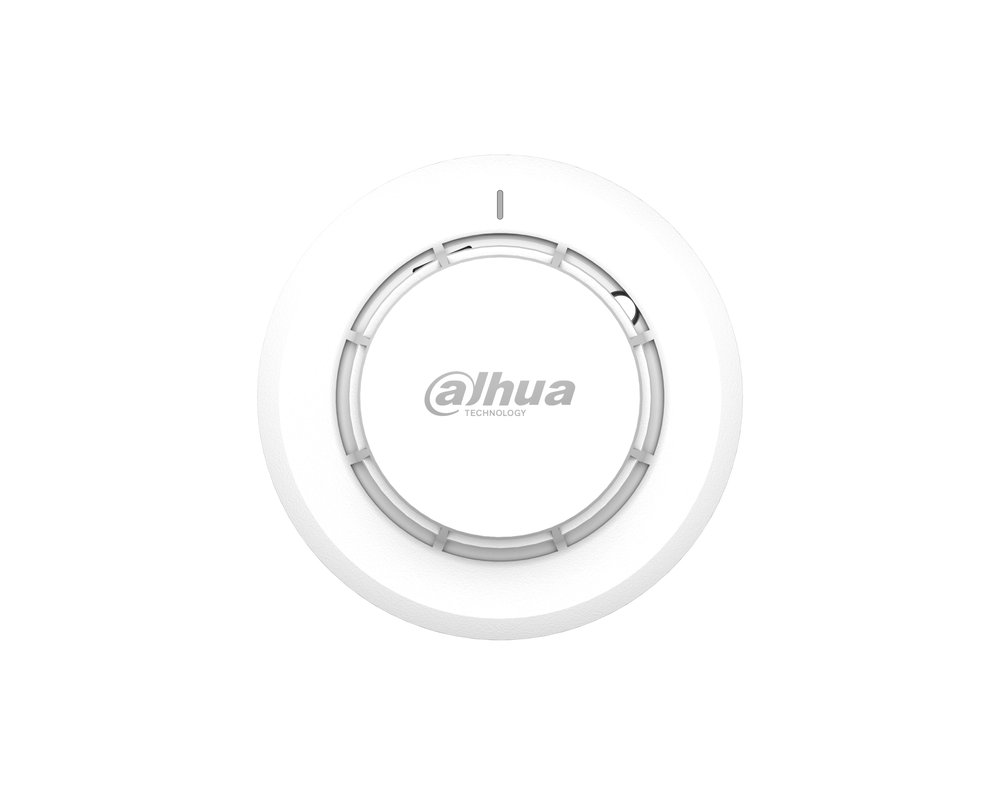

Rivelatore di fumo indirizzabile a 4 fili con relè integrato (senza base), 24 Vdc, conforme alla norma EN 54-7
| Scene | |
| Surveillance Area | For installation heights between 4 m and 12 m, the coverage area is 80 m² |
| Relay Out | Yes |
| Working Principle | Smoke detection |
| Alarm mode | Indicator light alarm |
| Operating Voltage | DC 24V Static current: ≤ 300μA |
| Operating Current | Alarm current: ≤ 6.5mA |
| Operating Temperature | –10°C to +50°C (14°F to 122°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Dimensions | (with base) Φ100 mm × 46.3 mm (Φ 3.94" × 1.82") |
| (with base) | 96 g (0.21 lb) |
| Installation | Ceiling Mount |
| Compliance Standard | EN 54-7 |
| Ordering Information | |
| Type | Model Description |
| Addressable Smoke Detector | DHI-HY-2301-RE Addressable Smoke Detector Pictures in the document are for reference only, and the actual product shall prevail. |
