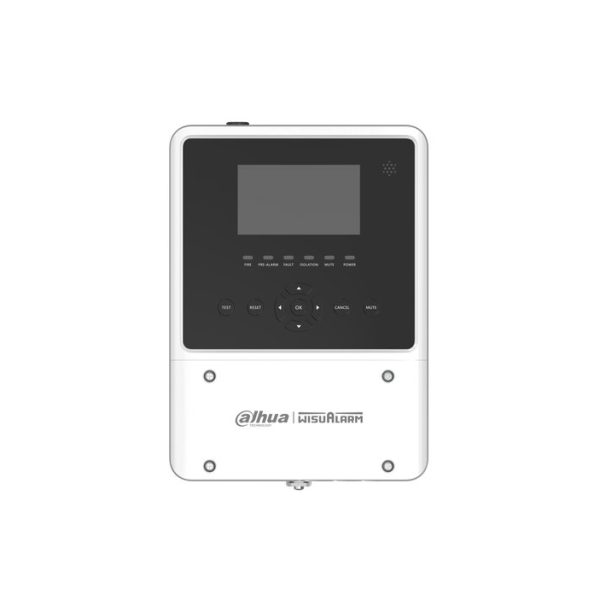

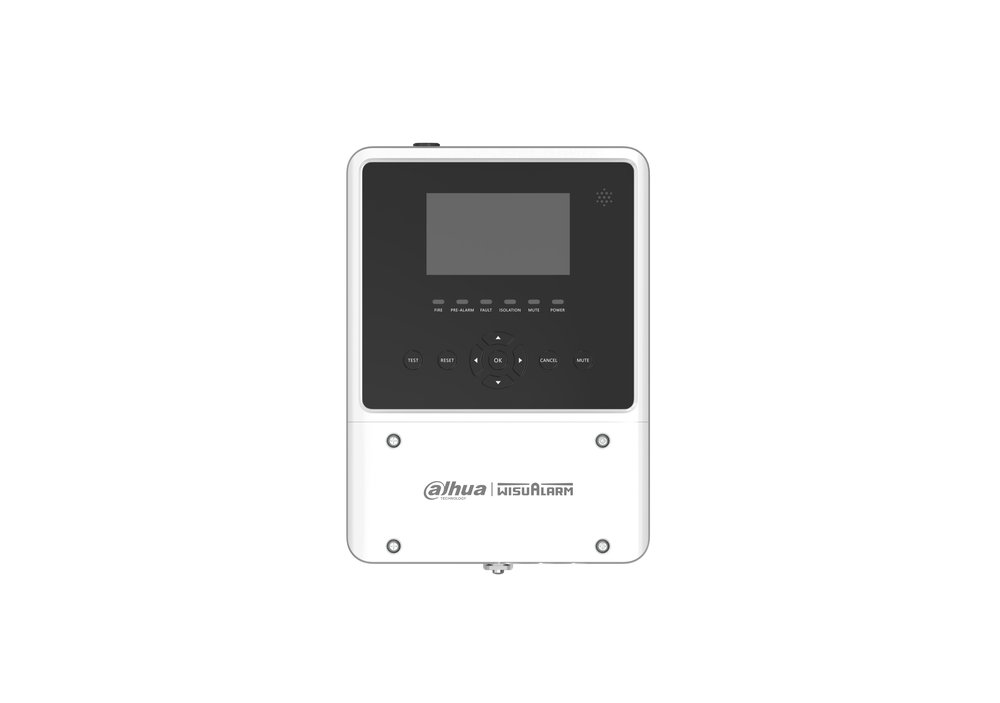

Rivelatore di fumo ad aspirazione a 1 tubazione IP66, 24 Vdc, display LCD 4.3″, 2 RS485, 1 Ethernet, 1 USB, 5 relè, conforme alla norma EN 54-20:2006 + AC:2008 classi A, B, C, certificazioni VdS 2344:2022-10 e VdS 2543:2021-03
| Scene | |
| Detection Sensitivity | 0.001% to 3% obs/m |
| Pipe Number | 1 |
| Maximum Length of Each Pipe | 79 m (259 ft) |
| Maximum Number of Sampling | 16 |
| Holes | Outer diameter: 25mm (1.0") |
| Sampling Pipe | Inner diameter: 21mm (0.8") |
| Maximum Monitoring Area | 711 Warning, Action, Fire Alarm 1, Fire Alarm 2, |
| Alarm Levels | Fire Alarm 3 Sound and light alarm |
| Aspirator | 1 suction pump |
| Airflow Sensor | 1 4.3" LCD |
| Display | |
| Event Records | 100,000 2 x RS485 1 x Ethernet |
| Output Port | 1 x USB 5 x relay Contacts rated 5A at 30 VDC |
| Operating Voltage | 24 VDC (12 VDC to 32 VDC) |
| Max. Current | 2 A |
| Power Consumption | < 17 W |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | -20°C to +70°C (-4°F to +158°F) |
| Operating Humidity | ≤ 95% RH (non condensing) |
| Protection | IP66 |
| Casing Material | PC 287 mm × 203.5 mm × 98.3 mm (11.3" × |
| Dimensions | 8" × 3.9") |
| Weight | 2.1 kg (4.6 lb) VdS 2344:2022-10 |
| Standards | VdS 2543:2021-03 EN 54-20:2006 + AC:2008 Class A, B, C |
| Ordering Information | |
| Type | Model Description |
| Aspirating | DHI-HY-ASD610B-P 1 Pipe Aspirating Smoke Detector |
| Smoke Detector | DH-HY-FSG010-00 Built-in Filter DH-HY-FSG010-00 In-Line Filter DH-HY-DN25-CYG/ABS ABS Pipe DH-HY-DN25-ZT Socket DH-HY-DN25-WG 90° Bend DH-HY-DN25-DT End Cap |
| Accessories | |
| (Optional) | DH-HY-DN25-GK Pipe Clip DH-HY-DN25-FJCCYK Socket with Anti-dust Sampling Hole DH-HY-DN25-MXGTJ Capillary Sampling Point Kit DH-HY-DN25-SZCYTJ Cane Sampling Kit DH-HY-DN25-LSQ In-Line Water Trap DH-HY-DN25-ST Equal Tee |
| Accessories | |
| Socket with Anti-dust Sampling Hole | In-Line Water Trap |
| Cane Sampling Kit | Equal Tee www.wisualarm.com |
