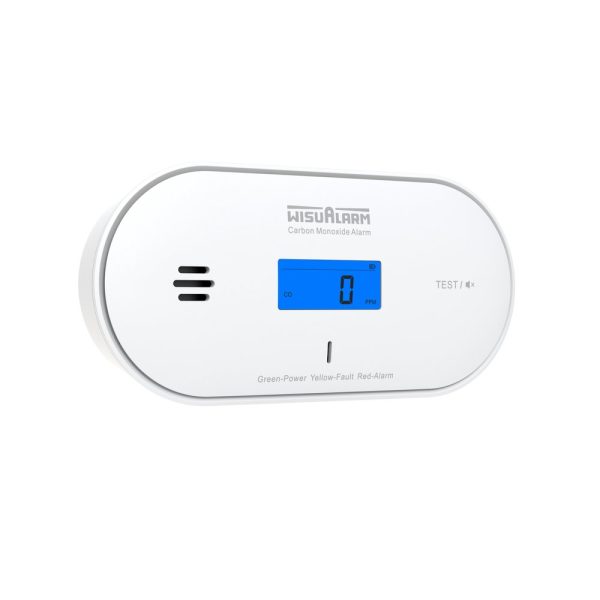

Sensore monossido di carbonio (CO) standalone da interno, sensore elettrochimico, display LCD, indicatore LED luminoso, allarme CO, guasto, batteria scarica, volume allarme 85 dB (entro 3 m), soglie di reazione allarme 50 ppm 60~90 min/100 ppm: 10~40 min/300 ppm: <3 min, batteria non sostituibile <20 mA durata 10 anni
Datasheet
Documentazione
Manuali
Disegni
| Collection Type | Carbon Monoxide (CO) |
| Sensor Type | Electrochemical |
| Alarm | |
| Alarm Type | CO alarm, fault warning, low battery warning |
| Alarm Volume | Over 85dB (A) at 3 m (9.84 ft) |
| Alarm Mode | Visual and audible alarm |
| Silence Function | Support |
| Silence Duration | About 9 minutes 50 ppm: 60 min–90 min |
| Alarm Response Threshold | 100 ppm: 10 min–40 min 300 ppm: < 3 min www.wisualarm.com |
| Operating Environment | Indoor use only |
| Operating Temperature | –10°C to +40°C (+14°F to +104°F) |
| Operating Humidity | ≤95% RH (non condensing) |
| Temperature Accuracy | ±0.1°C typical |
| Humidity Accuracy | ±1.5%RH typical |
| Color | White |
| Material | PC + ABS 133.5 mm × 63.5 mm × 28.9mm (5.26” × |
| Dimensions | 2.50” × 1.14”) |
| Weight | 123 g (0.28lb) |
| Installation | Wall mount/Free standing |
| Certifications | |
| Compliance Standard | EN 50291-1:2018 and BS EN 50291-1:2018 |
| Ordering Information | |
| Type | Part Number Description Standalone Carbon Monoxide |
| Carbon Monoxide | DHI-HY-GC30A |
