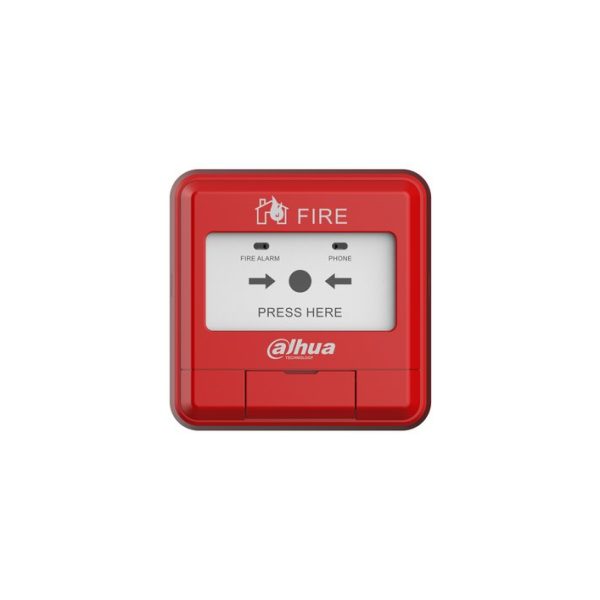

Pulsante di allarme indirizzabile (senza base), 24 Vdc, conforme alla norma EN 54-11
| Electrical | |
| Working Voltage | DC24V |
| Current | Monitoring current: ≤ 350μA Alarm current: ≤ 400μA |
| Contacts Capacity | DC30V/100mA Fire Alarm Red indicator flashes slowly during polling, flashes quickly |
| Indicator | during malfunction and remains lit during alarm Phone Red indicator flashes during polling and communication |
| Wiring | Two-wire, polarity-free |
| Addressing Method | Electrical encoder |
| Address Range | 1–254 |
| Communication | 1500 m (4921.26 ft) |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | –20°C to +65°C (–4°F to +149°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Construction | |
| Color | Red |
| Dimensions | 90 mm × 90 mm × 44 mm (3.54" × 3.54" × 1.73") (with base) |
| Weight | 136 g (0.30 lb) |
| Compliance Standard | EN54-11 |
| Ordering Information | |
| Type | Model Description |
| ddressable Manual | Addressable Manual Call DHI-HY-1200 |
| Call Point | Point |
