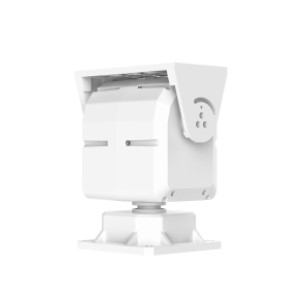

Staffa Pan Tilt in lega di alluminio IP55, RS485, 12 Vdc <20 W 224x170x294 mm
| Model | |
| Model | DH-PFA170 |
| Pan And Tilt | |
| Network Protocol | PELCO-D |
| Baud Rate | 9600 Pan: –30° to 30° |
| Pan/Tilt Range | Tilt: –70° to +20° Pan: 0.1°/s–20°/s |
| Manual Control Speed | Tilt: 5°/s |
| Port | |
| RS-485 | 1 (controls rotation angle and speed) |
| Power | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | 20 W |
| Environment | |
| Protection | IP55 |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | < 90% (RH) |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | 10%–90% (RH) |
| Structure | |
| Material | Aluminum alloy 224.0 mm × 170.0 mm × 294.3 mm (8.82" × 6.69" × |
| Dimensions | 11.59") (L × W × H) |
| Color | White |
| Net Weight | 7.0kg (15.43 lb) |
| Gross Weight | 8.0 kg (17.64 lb) |
| Load bearing | 5.0 kg (11.02 lb) 368.0 mm x 278.0 mm x 233.0 mm (14.48" × 10.94" × |
| Product Dimensions | 9.17") (L × W × H) 575.0mm x 380.0 mm x 500.0 mm (22.64" × 14.96" × |
| Packaging Dimensions | 19.68") (L × W × H) |
| Packaging Method | 4 pcs in each carton |
| Applicable Camera | Please see "Accessory Selection" |
| Ordering Information | |
| Type | Part Number Description DH-PFA170 Pan and Tilt Camera Bracket |
| Camera | |
| Mount | DH-PFA150 Pole Mount Bracket |
| Package Information | |
| Type | Quantities 1 |
| gang box plate | 1 |
| M8 nut | 4 |
| M8 × 25 screw | 4 |
| Φ8 flat washers | 4 |
| M6 × 10 screw | 5 |
| M6 × 10 screw | 2 |
| Motorized Bracket | 1 |
| Legal and Regulatory | 1 |
| Information | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
