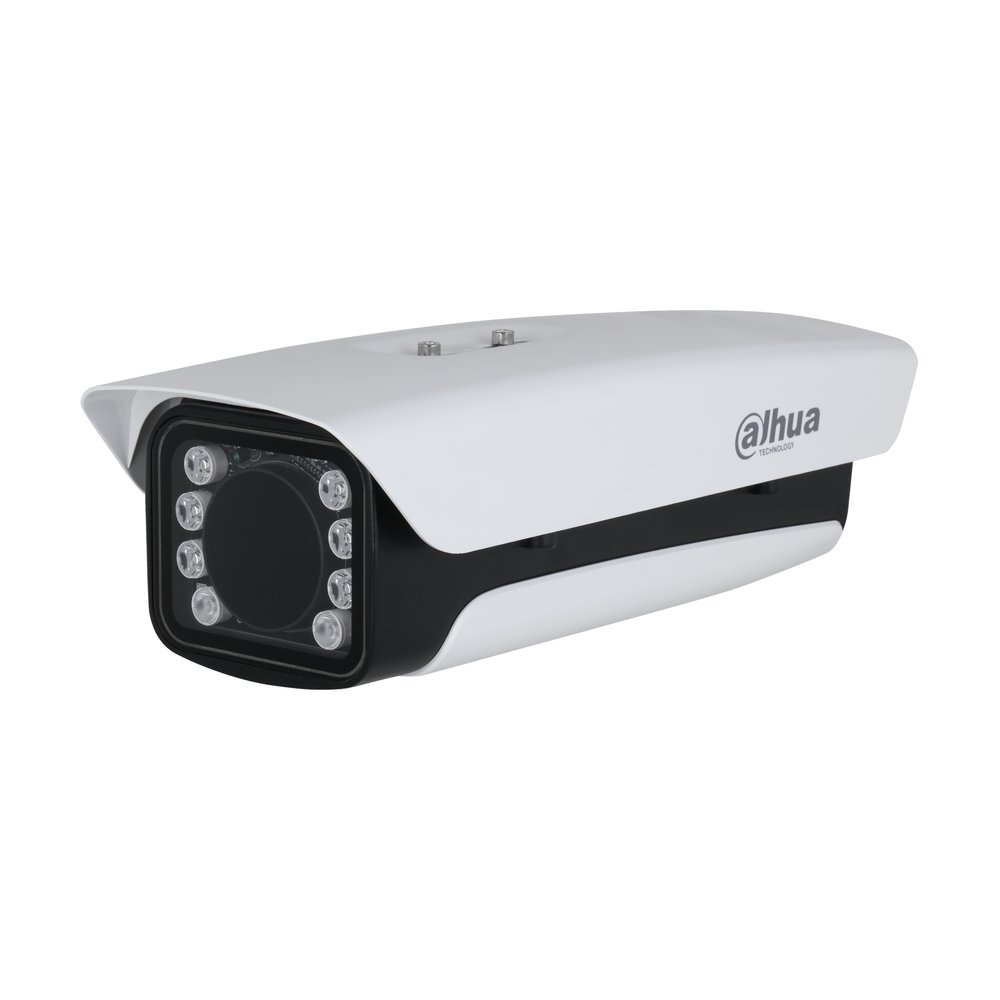

Custodia IP67 IK10 NEMA 4X IR
Custodia in alluminio IP66 antivandalo IK10 anticorrosione, portata IR 100 m, 1 porta RS485, 2 ingressi e 2 uscite allarme, DIP switch, temperatura di esercizio -40°~+60°C, alimentazione 24 Vac/Vdc/36 Vdc <35 W (senza telecamera)
Datasheet
| Function | |
| Auto Temperature Control | Cooling mode: ON: 37 °C ± 5 °C (98.6 °F ± 41 °F)/OFF: 20 °C ± 5 °C (68 °F ± 41 °F) |
| IR Light | 0 m –100 m (0 ft–328.08 ft) |
| Vandal-proof Rating | IK10 |
| Protection | IP66 |
| Anti-corrosion | Yes Common mode: 4 KV |
| Surge Protection Grade | Different mode: 2 KV |
| Screw Thread Type | G1/2 |
| Power | |
| Power Consumption | 35 W (without camera); Heater: 10.9 W; Fan: 0.2 W 24 VDC, 24 VAC, 36 VDC (the device requires an |
| Power Supply | external power supply) 12 VDC (12 VDC port that outputs power and |
| Power Supply for Camera | provides power for the internal camera) |
| Appearance Color | White top cover and black housing |
| Window Dimensions | Φ59.4 mm (Φ2.34") 280 mm ×115 mm × 85 mm (11.02" × 4.53" × 3.35") |
| Internal Usable Space | (L × W × H) |
| Net Weight | 2.6 kg (5.73 lb) |
| Gross Weight | 2.9 kg (6.39 lb) |
| Installation | Wall mount, ceiling mount, plane mount, pole mount |
| Screw Thread Type | G1/2 |
| Applicable Model | Please see "Camera Accessories Selection" Housing, Installation guide, Waterproof joint × 2, |
| Packing List | Wrench × 1, Ribbon cable, 1/4-20 × 9UNC screw × 2 437.0 mm × 190.0 mm × 166.0 mm (17.20" × 7.48" × |
| Packaging Dimensions | 6.54") (L × W × H) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <90% (RH) |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10%–90% (RH) |
| Anti-corrosion Level | Moderate Protection |
| Ordering Information | |
| Type | Model Description DH-PFH610A-IR 14" corrosion-proof housing PFH610A-IR 14" corrosion-proof housing PFB604WA Wall-mount Bracket (Anti-corrosion) PFA6400SA Power Box (Anti-corrosion) |
| Accessories | |
| (Optional) | PFA155A Pole Mount Bracket (Anti-corrosion) Corner Mount Bracket (Anti- PFA151A corrosion) |
| Optional: | |
| PFB604WA | PFA155A Power Box |
| Wall-mount | Pole Mount (Anti-corrosion) |
| Bracket | Bracket |
| (Anti-corrosion) | (Anti-corrosion) |
| (Anti-corrosion) | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Mm [Inch | |
| 131.8 [5.19] | Φ59.4 [Φ2.34] |
