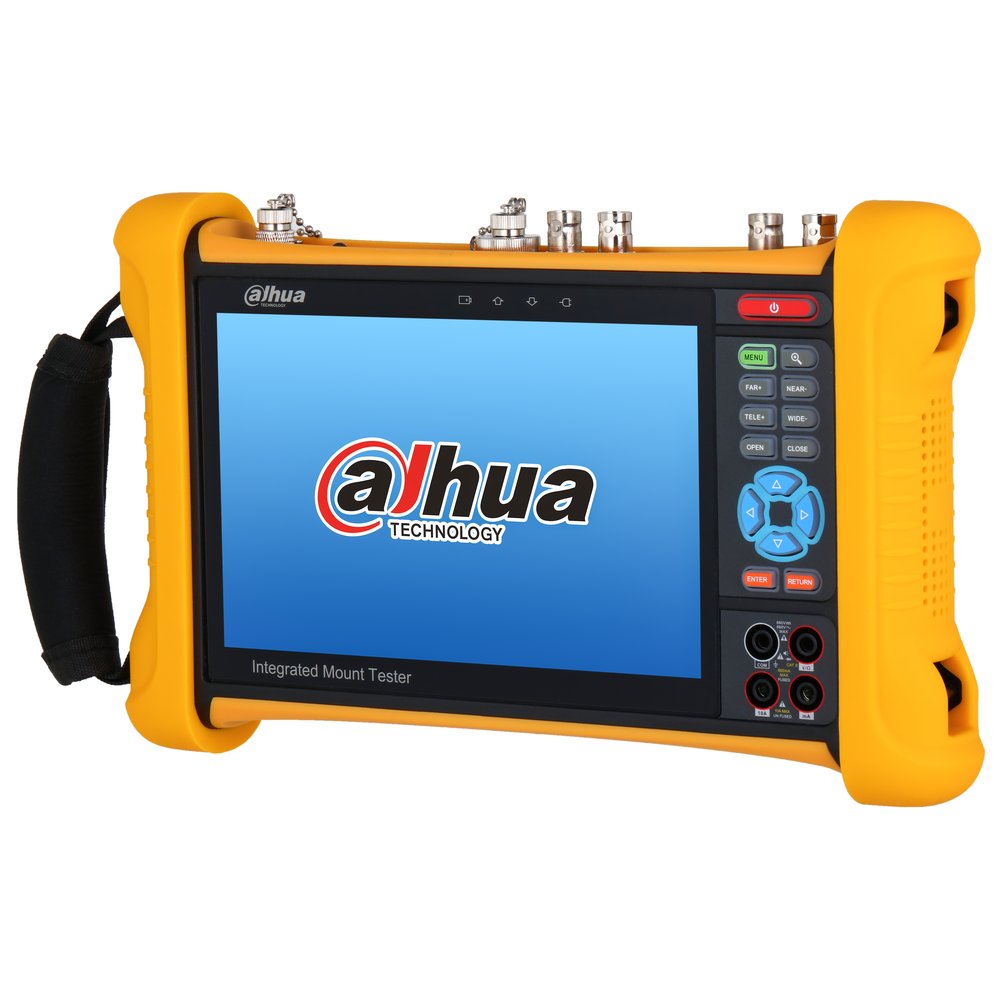

Tester 7" Wi-Fi/IP/analog Android
Tester multifunzione Wi-Fi 2.4/5 G a base Android, display 7" IPS 1920x1080p, test per telecamere IP, HDCVI, TVI, AHD, CVBS, SDI, controllo RS485, wireless, cablaggio, HDMI, audio, voltaggio, alimentazione, rete, alimentazione 12 Vdc/batteria
Datasheet
| System | |
| Operating System | Android |
| Language | 13 languages including Chinese and English |
| Operation mode | Physical buttons and touch screen Supports setting automatic standby and automatic |
| Auto Standby/Power Off | shutdown. |
| Keyboard Sound | On/Off 7-in 1920 × 1080p HD full-angle retina capacitive IPS |
| Display Screen | touchscreen. Keypad: 14 keys; |
| Button | Others: Power and on–off button |
| LED | 1 × 35 lm 5mm LED |
| Update | Supports online and local update |
| Ipc Test | |
| Camera Access | ONVIF and Dahua private protocol 1 MP; 1.3 MP; 2 MP; 3 MP; 4 MP; 5 MP; 6 MP; 8 MP; 12 |
| Resolution | MP |
| Initialization | Yes |
| Resolution | HDTVI: 2 MP@25/30 fps, 4 MP@25/30 fps AHD: 2 MP@25 fps/30 fps, 4 MP@25 fps/30 fps CVBS: NTSC, PAL |
| Function Control | OSD menu; PTZ control |
| Image | Live view, snapshot and recording, zoom |
| Video Signal Generator | PAL; NTSC video test signal |
| Sdi Test | |
| Resolution | 720p@60 fps; 1080p@60 fps; 1080i@60 fps |
| Rs-485 Control | |
| Communication protocol | Panasonic, Lilin, and Yaan 150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 |
| Baud Rate | bps, 9600 bps, 19200 bps, 38400 bps, 115200 bps |
| Wireless | |
| Wi-Fi Hotspot | Yes |
| Network | |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac |
| Frequency Range | 2.4–2.4835GHz and 5.15–5.85GHz |
| Transmitter Power (EIRP) | FCC output power: ≤30 dBm@2400 MHz–2483.5 MHz; ≤24 dBm@5150 MHz–5250 MHz: ≤24 dBm@5250 MHz–5350 MHz:≤24 dBm@5470 MHz– 5725 MHz; ≤30 dBm@5725 MHz–5850 MHz |
| Cable Test | |
| Network Cable Test | sequence, short circuits, the opening and closing of the network cables, and other parameters, and then generates reports with the information from the tests. Measures the location of a disconnection or the short– |
| Break and Short Circuit Test | circuit of BNC cables, network cables, telephone cables, and more. |
| Cable Tracing | Yes |
| Others | |
| HDMI Test | 1-ch HDMI video output 1-ch HDMI video input; |
| Audio Test | 1-ch HDMI video output |
| Power Supply for Camera | 12 VDC 2 A Features IP address scanning, PING test, bandwidth test, |
| Network Test | port flashing, link scan and other functions. |
| Voltage Test | Displays the size of PoE/PSE voltage and line connection Emits a visible red light to detect various types of faults |
| Visible Red Light Source | in the optical fiber line such as breaks, cracks and bends. Built–in serial port tool, can receive and display RS485 |
| Protocol Code Acquisition | protocol code data sent by control device, and can also send hexadecimal codes. |
| UTC | Yes |
| Dmm | |
| DC Voltage | Accuracy: For 0.01 mV to 600 V, the accuracy is ± (0.6%+4). For 600 V to 1,000 V, the accuracy is ± (0.8%+10). Limit: 60 mV, 600 mV, 6 V, 60 V or 600 V Reading range: –6,000 to +6,000 Min Resolution: 0.01 mV |
| AC Voltage | Accuracy: For 0.01 mV to 600 V, the accuracy is ± (1.2%+4). For 600 V to 750 V, the accuracy is ± (1.2%+10). Limit: 60 mA, 600 mA or 10 A Reading range: –6,000 to +6,000 |
| DC Current | Min Resolution: 10 μA Accuracy: ± (1.2%+10) Limit: 60 mA, 600 mA or 10 A Reading range: –6,000 to +6,000 |
| AC Current | Min Resolution: 10 μA Accuracy: ± (1.2%+10) |
| Resistance Test | Accuracy: For 0.1 Ω to 6 MΩ, the accuracy is ± (0.8%+10). For 6 MΩ to 60 MΩ, the accuracy is ± (2.5%+4). Limit: 6 nF, 60 nF, 600 nF, 6 μF, 60 μF, 600 μF, 6 mF or 60 mF Reading range: 0–6,000 |
| Capacitance Test | Min Resolution: 1 pF Accuracy: For 1 nF to 6,000 μF, the accuracy is ± (3.5%+20). For 6,000 μF to 60,000 μF, the accuracy is ± (5%+4). Limit: 3 V Reading range: 0–3,000 |
| Diode Voltage Drop | Min Resolution: 1 mV Accuracy: ± (1.2%+20) Limit: 50 Ω Reading range: 0–500 |
| Continuity Test | Min Resolution: 0.1 Ω Accuracy: ± (1.2%+20) Limit: 6 Hz, 60 Hz, 600 Hz, 6 kHz, 60 kHz, 600 kHz or 6 MHz |
| Frequency Test | Reading range: 0–6,000 Min Resolution: 0.001 Hz Accuracy: For 1 Hz to 6 MHz, the accuracy is ± (0.1%+3). |
| Neutral and Live Wire | Yes |
| Optical Power Meter | |
| Detector Type | InGaAs |
| Calibrated Wavelength | 1625/1550/1490/1310/1300/850 nm |
| Power Test Range | –70 dBm to +10 dBm <±3% dB (–10 dBm, +22 °C/+71.6 °F) |
| Measuring Accuracy | （ ） <±5% dB FS, +22 °C/+71.6 °F |
| Screen Resolution | Linear: 0.1%, logarithmic: 0.01 dBm |
| Connector | FC/PC |
| Power | |
| Audio Port | 1 × audio output port |
| USB | 1 × type–A port 2 × RJ45 10/100/1,000 Mbps network ports (one port supports PoE and the other supports PSE IN) |
| Network Port | 1 × UTP/SCAN port 1 × TDR port 1 × micro SD card slot, and it supports memory |
| SD Card Slot | expansion up to 32 GB,and FAT32 and NTFS formats. 1 × HDMI input port; |
| HDMI | 1 × HDMI output port |
| RS-485 | 1 |
| VLS | 1 |
| OPM | 1 |
| Multimeter | 4 |
| BNC | 4 |
| Power Supply | |
| Power Supply | 12 VDC 2 A Replaceable polymer lithium battery with a capacity of |
| Battery | 37 Wh, and a working time of about 8 hours |
| Protection | |
| Surge Protection Grade | Differential mode: ±1 kV Air discharge: 8 kV; |
| Statics Protection | Contact discharge: 6 kV |
| Structure | |
| Appearance Color | Yellow 270.0 mm × 160.0 mm × 46.0 mm (10.63" × 6.30" × |
| Product Dimensions | 1.81") (L × W × H) 313.0 mm × 286.0 mm × 96.0 mm (12.32" × 11.26" × |
| Packaging Dimensions | 3.78") (L × W × H) |
| Net Weight | 0.95 kg (2.09 lb) |
| Gross Weight | 2.1 kg (4.63 lb) |
| Environment | |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 30%–90% (RH) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity | 30%–90% (RH) |
| Ordering Information | |
| Type | Model Description |
| Integrated Mount Tester | DH-PFM906-E Integrated Mount Tester |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
