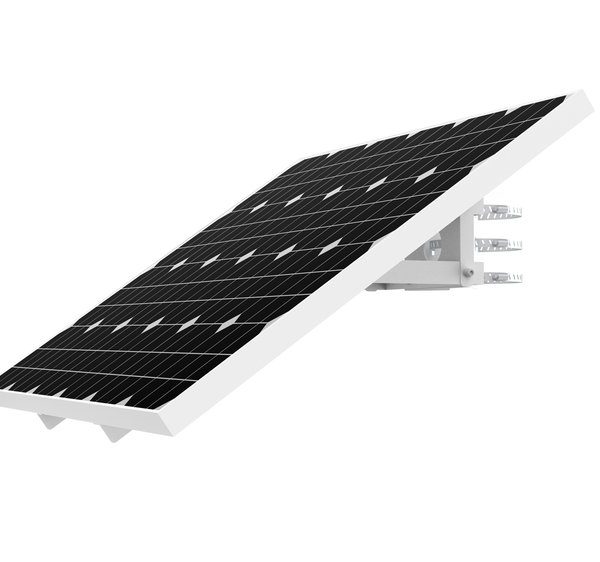

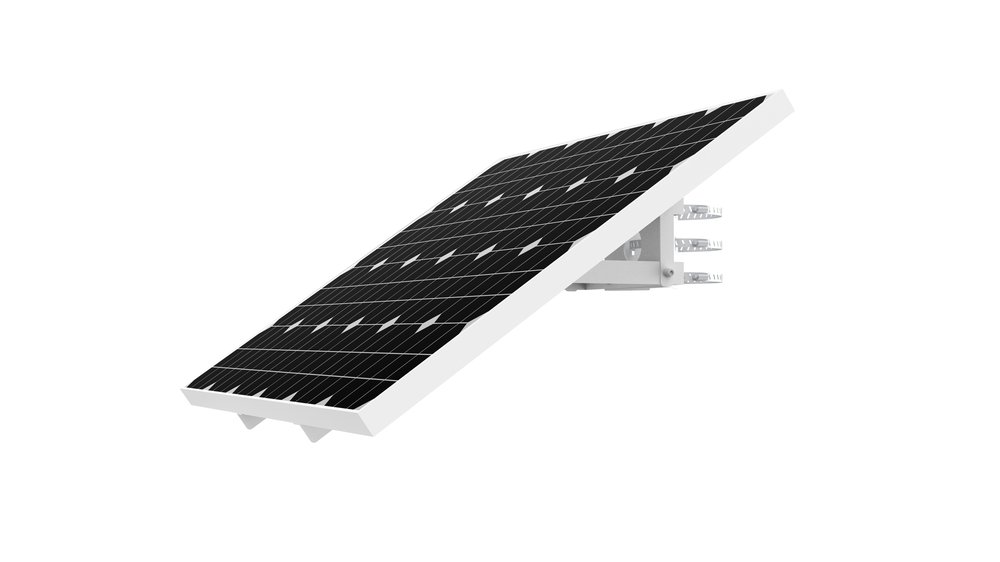

Pannello solare monocristallino <100 W con batteria 40 Ah integrata, installazione a palo (telecamera compatibile 1x SD49425DB-HNY-GQ-EAU o 1x IPC-HFW3441DG-AS-4G-EAU-B)
Datasheet
Documentazione
Manuali
Disegni
| System | |
| Output Voltage | 11.1 VDC (9 V–12.6 V) |
| Output Current | 10 A |
| Power Consumption In Idle | <50 uA |
| Type | Monocrystalline silicon |
| Max. Power | 100 Wp |
| Efficiency | 0.19 |
| Type | Ternary lithium |
| Nominal Capacity (20°C/68°F, | 40 AH |
| Low Temperature Discharge | ≥70% nominal capacity (–20 °C [–4 °F], 5 hr) |
| Normal Temperature | ≥99% nominal capacity (25 °C [77 °F], 5hr) |
| High Temperature Discharge | ≥90% nominal capacity (55°C [131 °F], 5hr) |
| Upper Limit of Charging | 12.6 VDC |
| Max. Charging Current | 10 A |
| Charge and Discharge Cycle | >500 times |
| Protection | IP66 Protection against overheating overcharging, |
| Port | |
| Power Output Port | × 0.47”) |
| RS-485 | 1 Photovoltaic panel frame: aluminum alloy |
| Main Body Material | Battery compartment: PC and ASA Bracket: Q235 |
| Installation | Column–shaped vertical pole (Φ80 mm–180 mm) 765 mm × 674 mm × 417 mm (30.12" × 26.54“ × |
| Product Dimensions | 16.42”) 825 mm × 690 mm × 100 mm (32.48" × 27.17" × |
| Packaging Dimensions | 3.94“) |
| Net Weight | 12.5 kg (27.56 lb) |
| Gross Weight | 14.9 kg (32.85 lb) |
| Operating Altitude | ≤3,000 m (9,842.52 ft) The device needs to be exposed to direct sunlight for |
| Applicable Area | at least 3.5 hours under standard lighting intensity to ensure it operates normally. Charging: –20 °C to + 50 °C (–4 °F to +122 °F); the |
| Operating Temperature | device self-heats when the battery reaches 0 °C Discharging: –20 °C to + 55 °C (–4 °F to 131 °F) |
| Operating Humidity | 10%–90% (RH) –35 °C to +65 °C (–31 °F to +149 °F); the storage time is less than 3 months. |
| Storage Temperature | –10 °C to +25 °C (+14 °F to +77 °F); the storage time is less than 12 months. |
| Storage Humidity | 65 ± 20% (RH) |
| Anti-corrosion Level | Basic Protection |
| Ordering Information | |
| Type | Model Description |
