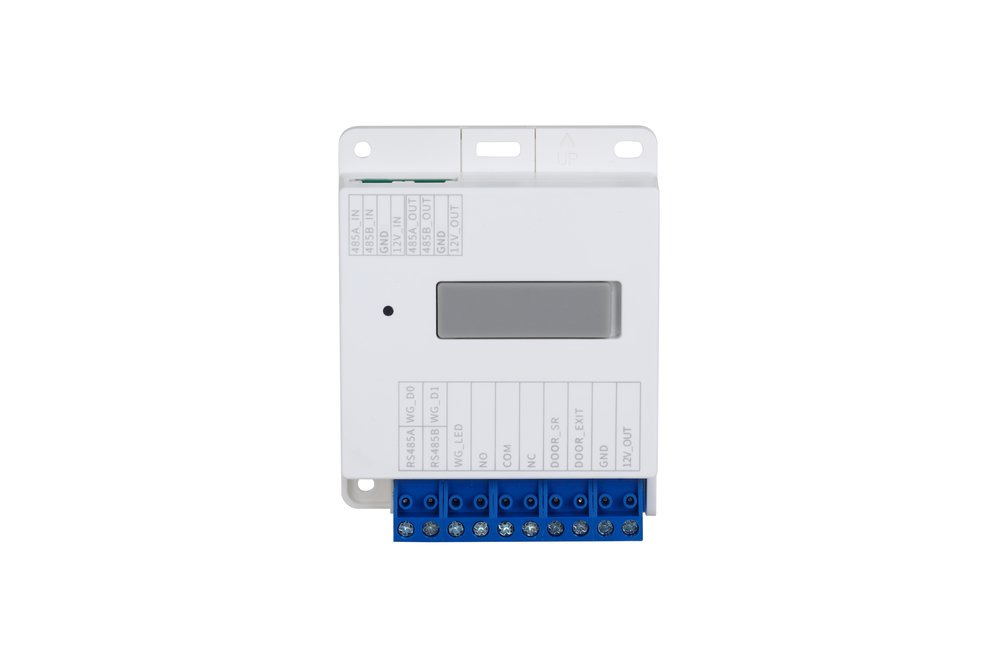

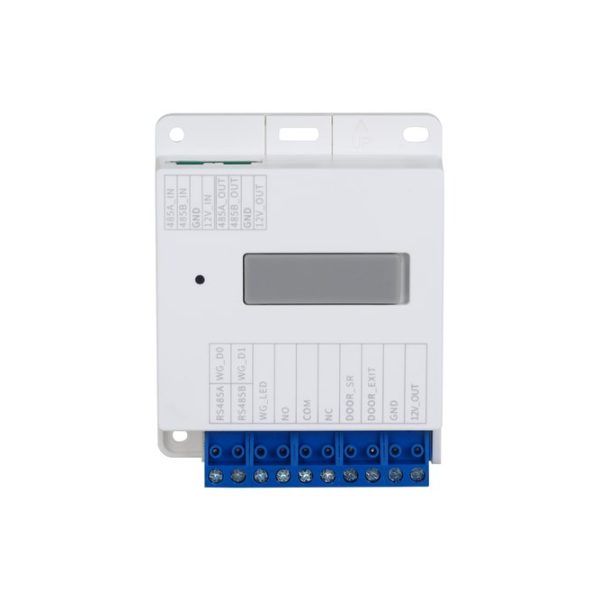

Modulo relè aggiuntivo su RS485 indirizzabile
Modulo relè aggiuntivo su RS485 indirizzabile, 2 porte RS485 per collegamento in cascata + 1 porta RS485/Wiegand per collegamento lettore, 1 relè per controllo carico fino a 230V, opzione di installazione su barra DIN, alimentazione 12 Vdc <1 W fornita dal VTO
Datasheet
| Performance | |
| Casing Material | PC + ABS |
| Port | |
| RS-485 | toggling the 1-bit switch. If you toggle the 1-bit switch on the right to 0, RS-485 mode will be enabled. 1 port, which can be changed to RS-485 mode by |
| Wiegand | toggling the 1-bit switch. If you toggle the 1-bit switch on the right to 1, Wiegand mode will be enabled. |
| Power Output | 1 port (12 V, 500 mA) |
| Exit Button | 1 channel |
| Door Status Detection | 1 channel |
| Lock Control | 1 channel |
| General | |
| Appearance Color | White |
| Power Supply | 12 V, 1 A |
| Power Adapter | Optional |
| Installation | Surface Mount;Guide Rail Mount |
| Certifications | |
| Product Dimensions | 82.6 mm × 65.0 mm × 25 mm (3.25" × 2.56" × 0.98") |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Environment | Outdoor |
| Operating Altitude | 0 m–3,000 m (0 ft–9,842.52 ft) ≤0.4 W (standby), ≤1.0 W (working, 12 V output with no |
| Power Consumption | load) |
| Gross Weight | 0.15 kg (0.33 lb) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30%–75% (RH) |
| Ordering Information | |
| Type | Model Description |
| Access Control Extension | DHI-DEE111R RS-485 Extension Module |
| Dimensions (Mm[Inch]) | |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
