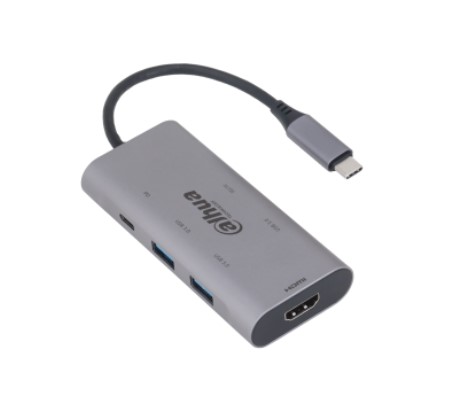

Docking station USB 3.1, 1 Type-C plug, 7 output: 3 USB 3.0, 1 HDMI (fino a 4K@30 Hz), 1 SD, 1 TF, 1 PD, case in lega di alluminio, 20 Vdc <100 W, compatibile anche con device Apple
Datasheet
Manuali
| Docking Station | |
| Number of Ports | 8 Input: USB 3.1 Type-C Plug Output: 3 * USB 3.0 |
| Port Type | 1 * HDMI 1 * SD 1 * TF 1 * PD |
| HDMI | Supports 4K@30 Hz 3 × USB 3.0-A, supports USB 3.0 GEN1 speed read and |
| USB 3.0 | write, and is compatible with USB 2.0. Supports charging devices with 100 W and data |
| Type-C Plug | transmission. |
| SD/TF Card | Fast speed transmission |
| Operating Voltage | 20 VDC |
| Current | 5 A |
| Power Consumption | 100 W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Net Weight | 60 g (0.13 lb) |
| Gross Weight | 105 g (0.23 lb) 98.2 mm × 45.0 mm × 17.0 mm |
| Product Dimensions | (3.87" × 1.77" × 0.67") (L × W × H) 210.0 mm × 125.0 mm × 30.0 mm |
| Packaging Dimensions | (8.27" × 4.92" × 1.18" ) (L × W × H) |
| DC Charging | Yes |
| 4K Output to External | Yes |
| Compatibility | Game console, phone, laptop and tablet. |
| Casing Material | Aluminum Alloy |
| Ordering Information | |
| Type | Model Description |
| Adapter | DH-TC31 USB 3.0 Type-C to RJ45 Adapter |
| Adapter | DH-TC31H USB 3.1 Type-C to HDMI Adapter |
| Adapter | DH-TC32 USB 3.1 Type-C to HDMI + VGA Adapter |
| Docking | 5 in 1 USB 3.1 Type-C to HDMI + USB 3.0 + DH-TC35 |
| Station | PD Docking Station |
| Docking | 7 in 1 USB 3.1 Type-C to USB 3.0 + HDMI + DH-TC37 |
| Station | SD/TF + PD Docking Station |
| Docking | 8 in 1 USB 3.1 Type-C to USB 3.0 + HDMI + DH-TC38 |
| Station | RJ45 + SD/TF + PD Docking Station |
| Docking | 9 in 1 USB 3.1 Type-C to USB 3.0 + HDMI + DH-TC39 |
| Station | RJ45 + VGA + SD/TF +PD Docking Station The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Dimensions (Mm[Inch]) | |
| 254.9 [10.03] | 17.0 [0.67] 42.5 [1.67] |
| 98.2 [3.86] | 45.0 [1.77] 17.0 [0.67] |
