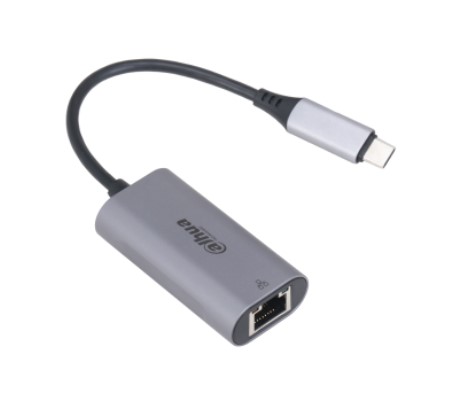

Docking station USB 3.0, 1 Type-C plug, 1 porta RJ45 (10/100/1000 Mbps), case in lega di alluminio, 5.25 Vdc <1.05 W, compatibile anche con device Apple
Datasheet
Manuali
| Docking Station | |
| Number of Ports | 2 Input: USB 3.0 Type-C Plug |
| Port Type | Output: 1 * RJ45 |
| RJ45 | 1 × RJ-45, supports 10/100/1000 Mbps |
| Operating Voltage | 5.25 VDC |
| Current | 200 mA |
| Power Consumption | 1.05 W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Net Weight | 25 g (0.055 lb) |
| Gross Weight | 60 g (0.13 lb) 58.0 mm × 30.0 mm × 15.5 mm |
| Product Dimensions | (2.28" × 1.18" × 0.61") (L × W × H) 175.0 mm × 96.0 mm × 25.5 mm |
| Packaging Dimensions | (6.89" × 3.78" × 1.00" ) (L × W × H) |
| Compatibility | Game console, phone, laptop and tablet. |
| Casing Material | Aluminum Alloy |
| Ordering Information | |
| Type | Model Description |
| Adapter | DH-TC31 USB 3.0 Type-C to RJ45 Adapter |
| Adapter | DH-TC31H USB 3.1 Type-C to HDMI Adapter |
| Adapter | DH-TC32 USB 3.1 Type-C to HDMI + VGA Adapter |
| Docking | 5 in 1 USB 3.1 Type-C to HDMI + USB 3.0 + DH-TC35 |
| Station | PD Docking Station |
| Docking | 7 in 1 USB 3.1 Type-C to USB 3.0 + HDMI + DH-TC37 |
| Station | SD/TF + PD Docking Station |
| Docking | 8 in 1 USB 3.1 Type-C to USB 3.0 + HDMI + DH-TC38 |
| Station | RJ45 + SD/TF + PD Docking Station |
| Docking | 9 in 1 USB 3.1 Type-C to USB 3.0 + HDMI + DH-TC39 |
| Station | RJ45 + VGA + SD/TF +PD Docking Station The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Dimensions (Mm[Inch]) | |
| 6.2 [0.24] | 25.0 [0.98] 6.2 [0.24] 46.2 [1.82] |
| 150.0 [5.90] | 214.7 [8.45] 4.0 [0.16] |
| 58.0 [2.28] | 28.8 [1.13] 15.5 [0.61] 30.0 [1.18] |
