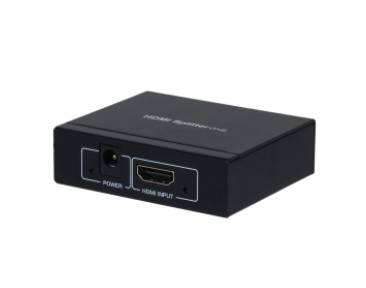

Distributore segnale video con 1 ingresso e 2 uscite HDMI fino a 4K
Datasheet
Disegni
| Function | |
| Transmission Channel | 1 in 2 out 640*480@60Hz 1280*720@60Hz |
| Resolution | 1920*1080@60Hz 4096*2160@24/30/60Hz |
| Video Format | Compatible with HDMI 1.4b and HDCP 1.4 |
| Transmission Signal | HDMI |
| Transmission Media | HDMI cable |
| Power | |
| HDMI | 2 |
| Power | |
| Power Supply | 5 VDC |
| Power Consumption | 5 W |
| Protection | |
| Protection | IP54 Air discharge: ±6 kV |
| Electrostatic Discharge | Contact discharge: ±8 kV |
| Surge Protection Grade | Differential mode: ±1 kV |
| Product Dimensions | 60 mm × 70 mm × 20 mm (2.36" × 2.76" × 0.79") |
| Packaging Dimensions | 107 mm × 119 mm × 68 mm (4.21" × 4.69" × 2.68") |
| Packaging Method | 30 pcs in each carton |
| Net Weight | 128 g (0.28 lb) |
| Gross Weight | 246 g (0.54 lb) |
| Environment | |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | ≤90% |
| Storage Temperature | –20 °C to +80 °C (–4 °F to +176 °F) |
| Storage Humidity | ≤90% |
| Ordering Information | |
| Type | Part Number Description HDMI splitter(1X2)_Neutral,European |
| HDMI splitter | PFM701-4K standard |
