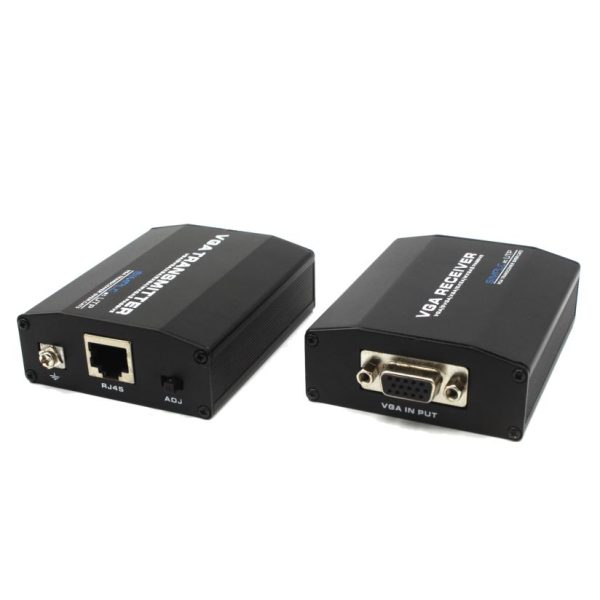

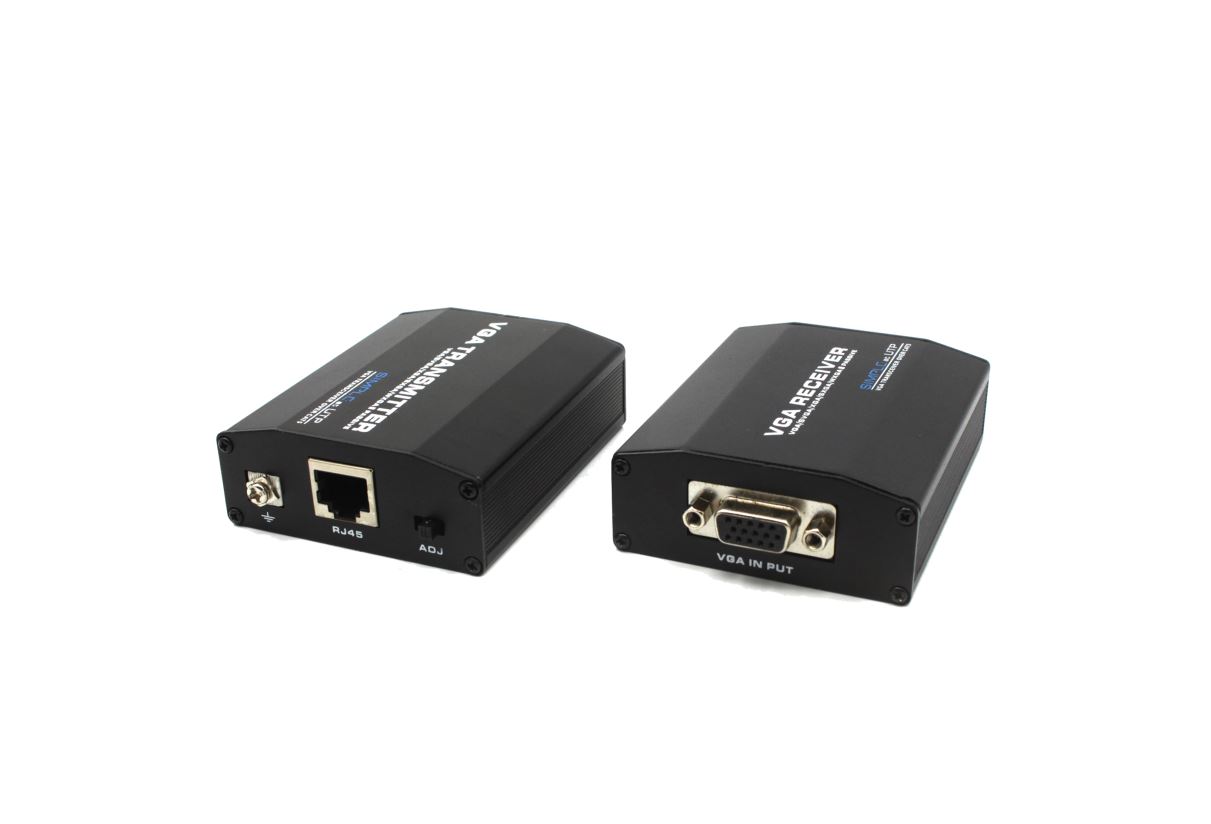

Coppia extender passivi 1 canale su UTP per segnale video VGA, risoluzione fino a 1080p, portata 35 m
Datasheet
| Model | DH-PFM710 |
| Transmission Signal | 1 channel |
| High-definition Transmission Distance | Max. 35m (114.83ft) @1080P |
| Video Signal Input Interface | Female 15, VGA port |
| Video Input Interface | Female 15, VGA port |
| Resolution | 640*480/800*600/1600*1050/1600*1200/1920*1200/1920*1080 |
| Twisted-pair Video Transmission Port | RJ45 port |
| Video Signal Processing Bandwidth | <120MHz(-3db) |
| Synchronous Signal Bandwidth | 1k-200kHz |
| Transmitter | 2 modes |
| Receiver | 3 modes |
| ESD | 1a contact discharge electricity level 3 |
| Anti-thunder | 1KV |
| MTBF | >5000H |
| Dimension(L*W*H) | Transmitter: 85mmx64mmx28mm (3.35"x2.52"x1.1") (port length included) Receiver: 85mmx64mmx28mm (3.35"x2.52"x1.1") |
| Shell | Aluminum |
| Color | Black |
| N.W. | Transmitter: 111g (0.24lb) Receiver: 110g (0.24lb) |
| Working Temperature | 0 ℃ ~ +55 ℃ ( +32 ℉ ~+ 131 ℉ ) |
| Storage Temperature | -20 ℃ ~+80 ℃ ( -4 ℉ ~+ 176 ℉ ) |
| Humidity | 0~95%(non-condensing) |
| certification | CE (EN55022, EN55024) FCC (47 CFR PART 15 & ANSI C63.4 ) |
