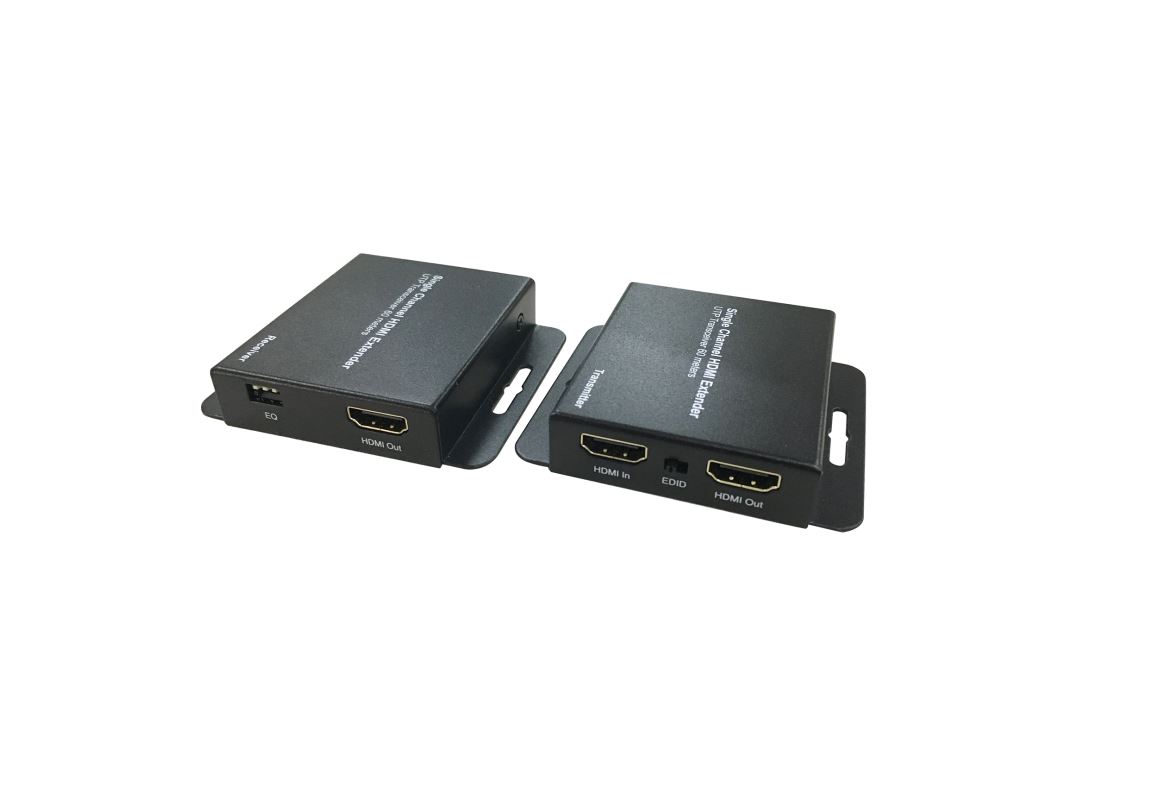

Coppia extender attivi 1 canale su UTP per segnale video HDMI, risoluzione max 1080p, portata 50 m
Datasheet
| Model | PFM700-E |
| Transmission Signal | 1channel HDMI |
| Transmission Distance | 50m (max.164ft), with CAT6 of pure copper cable (DC impedance is less than 9.5 ohm for every 100 meters (328ft)). |
| Video Signal Input Interface | HDMI interface |
| Video Input Port | HDMI interface |
| Twisted-pair Video Transmission Port | RJ45 port |
| Input Voltage | DC5V |
| Power | TX<3W, RX<3W |
| HDCP Version | Support HDCP1.2 |
| HDMI Version | Support 1.3 and lower version |
| Resolution | 1080P/1080I/720P/576P/576I/480P/480I |
| Output Voltage | 0.5~1.5Vp-p |
| ESD | ±6KV(contact discharge) |
| Anti-thunder | ±2KV(common mode), ±1KV(differential mode) |
| MTBF | >5000h |
| Dimension(L*W*H) | Transmitter: 79.5mmx68mmx16.5mm(port length included) (3.13”x2.68”x0.65”) Receiver: 79.5mmx68mmx16.5mm(3.13”x2.68”x0.65”) |
| Shell | Iron |
| Color | Black |
| N.W. | Transmitter: 133g(0.29lb) Receiver: 133g(0.29lb) |
| Working Temperature | -10℃~55℃(14℉~131℉) |
| Storage Temperature | -20℃~80℃(-4℉~176℉) |
| Humidity | 0~95%(non-condensing) |
| Certification | CE/FCC |
