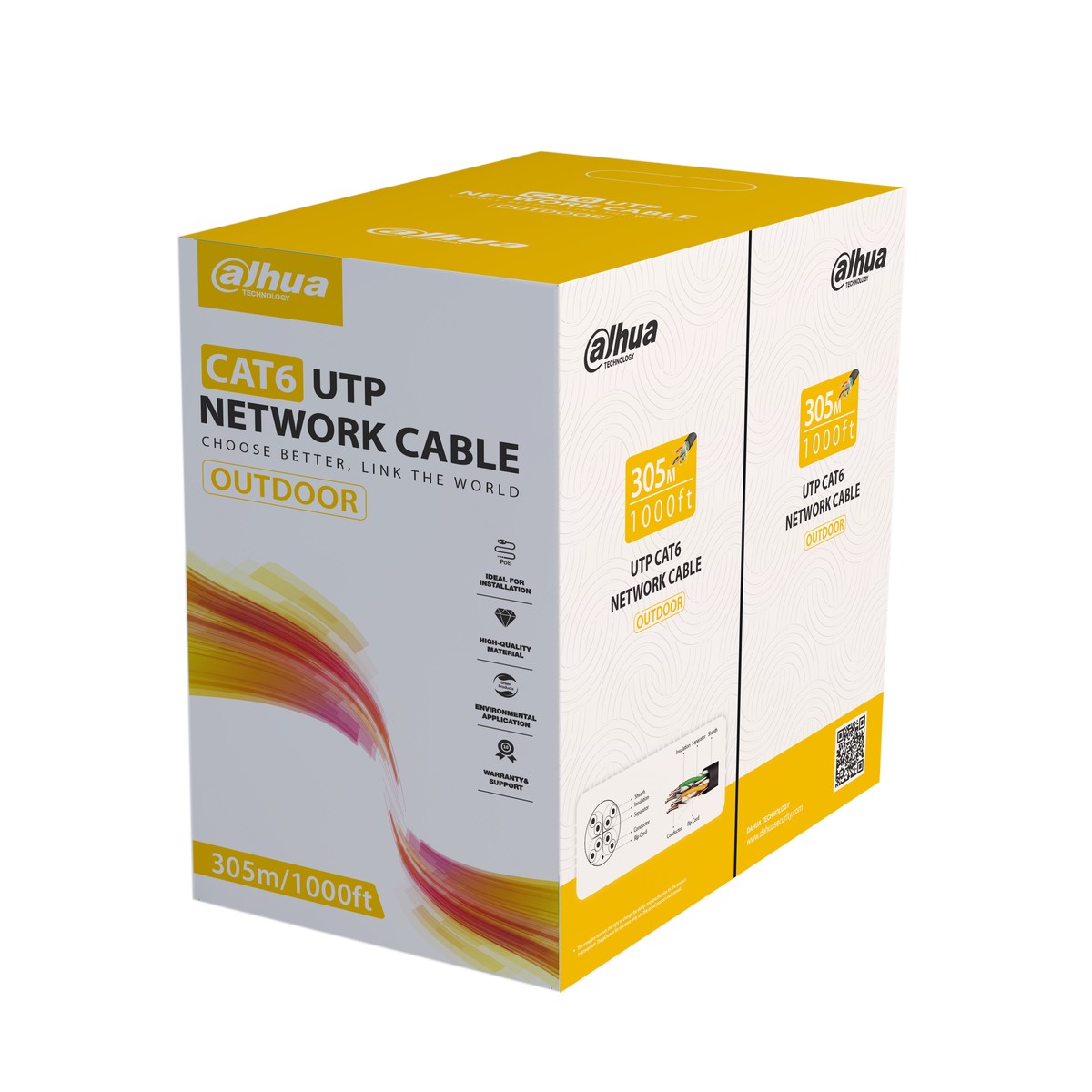

Cavo di rete U/UTP CAT6 da esterno nero in matassa da 305 m, conduttori in rame puro privo di ossigeno (OFC), guaina esterna in PE con un certo grado di impermeabilità, materiali conformi RoHS, dati e alimentazione PoE su un unico cavo, resistenza DC max 9.5 Ω/100 m, impedenza 100 Ω ±15 Ω, NEXT ≥39.3 dB/100 m a 250 MHz, attenuazione max 34.8 dB/100 m a 250 MHz, return loss ≥17.3 dB/100 m, prova di propagazione della fiamma IEC 60332-1-2, raggio di curvatura >8 volte il diametro, temperatura di esercizio -20~+60 °C, peso netto 13.5 kg
| Electrical | |
| Max. DC Resistance of a | 9.5 Ω@100 m (328.08 ft) |
| Min. Insulation Resistance | 5000 MΩ·km |
| Max. DC Resistance | 2% (pair intra), 4% (pairs inter) |
| Dielectric Strength | No breakdown with 1kV DC for 1 min |
| Transmission | |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| Near-end Crosstalk | ≥39.30 dB/100 m@250 MHz |
| Max. Attenuation | 34.8 dB/100 m@250 MHz |
| Return Loss | ≥17.3 dB/100 m@250 MHz |
| Mechanical | |
| Tensile Strength | Sheath≥13.5 MPa, insulation≥16 Mpa |
| Elongation at Break | Sheath≥150%, insulation≥300% |
| Installation Bending Radius | >8 times of outer cable diameter |
| Conductor Elongation at | ≥10% |
| Environmental | |
| Shrinkage of Insulation | ≤5% |
| Color Migration Resistance | No migration |
| Elongation at Break after | ≥12.5 MPa, ≥100% |
| Low Temperature Bending | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Storage Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Storage Humidity | <60% (RH) |
| Security | |
| Vertical Flame Test | Comply with IEC 60332-1-2 |
| Packaging | |
| Cable Length | 305.0 m± 2 m (1,000.66 ft ± 6.56 ft) 305 m (1,000 ft) a carton, one carton with 2 inner |
| Packaging Method | cartons 433 mm × 433 mm × 230mm (17.05" × 17.05" ×9.06") (L |
| Packaging Dimensions | × W × H) |
| Transport Package | 495 mm × 457mm × 466mm (19.49" × 17.99" × 18.35") (L × W × H) |
| Net Weight | 13.5 kg ± 0.6 kg (29.76 lb ± 1.32 lb) |
| Gross Weight | 14.5 kg ± 0.6 kg (31.97 lb ± 1.32 lb) |
| Compliance Standard | |
| Compliance Standard | Q/DXJ 067-2024 |
| Ordering Information | |
| Type | Model Description 305m Outdoor U/UTP CAT6 |
| Network Cable | Network Cable (Black, PE DH-PFM920-6UN sheath) |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
