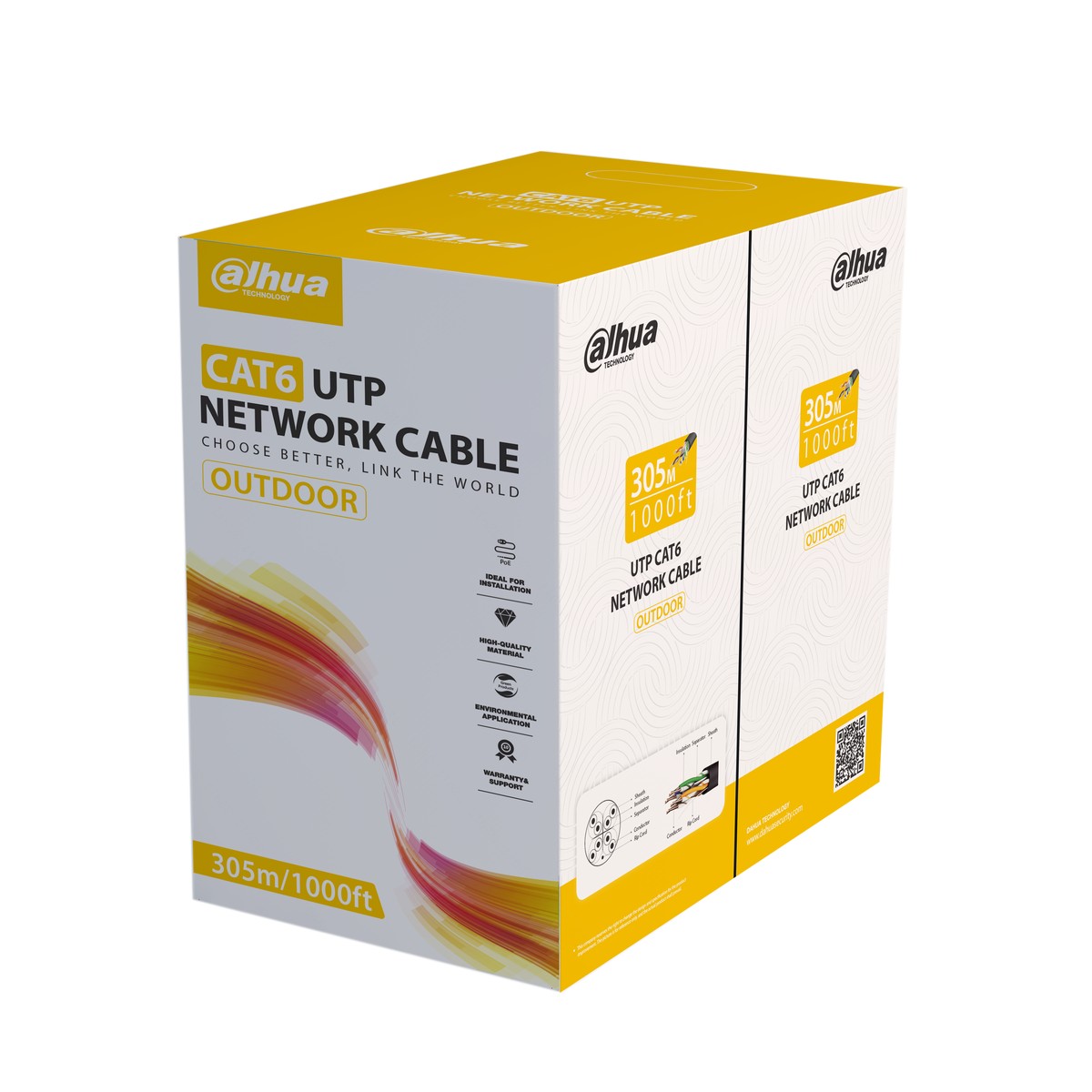

Cavo di rete U/UTP CAT6 da esterno nero in matassa da 305 m, conduttori in rame puro privo di ossigeno (OFC), guaina esterna in MDPE con un certo grado di impermeabilità, materiali conformi RoHS, dati e alimentazione PoE su un unico cavo, resistenza DC max 7.35 Ω/100 m, impedenza 100 Ω ±15 Ω, NEXT ≥39.3 dB/100 m a 250 MHz, attenuazione max 32.8 dB/100 m a 250 MHz, return loss ≥17.3 dB/100 m, raggio di curvatura >15 volte il diametro, temperatura di esercizio -20~+60 °C, standard YD/T 3296.2-2018 e ANSI/TIA 568.2-D, peso netto 11.7 kg
| Electrical | |
| Max. DC Resistance of a | 7.35 Ω@100 m (328.08 ft) |
| Min. Insulation Resistance | 5000 MΩ·km |
| Max. DC Resistance | 2% (pair intra), 4% (pairs inter) |
| Dielectric Strength | No breakdown with 1kV DC for 1 min |
| Transmission | |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| Near-end Crosstalk | ≥39.3 dB/100 m@250 MHz |
| Max. Attenuation | 32.8 dB/100 m@250 MHz |
| Return Loss | ≥17.3 dB/100 m@250 MHz |
| Mechanical | |
| Tensile Strength | Sheath≥13.5 MPa, insulation≥16 Mpa |
| Elongation at Break | Sheath≥150%, insulation≥300% |
| Installation Bending Radius | >15 times of outer cable diameter |
| Conductor Elongation at | ≥15% |
| Environmental | |
| Shrinkage of Insulation | ≤5% |
| Color Migration Resistance | No migration |
| Elongation at Break after | ≥9.6 MPa, rate of change≤20% |
| Low Temperature Bending | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Storage Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Storage Humidity | <60% (RH) |
| Packaging | |
| Cable Length | 305.0 m± 2 m (1,000.66 ft ± 6.56 ft) 305 m (1,000 ft) a carton, one carton with 2 inner |
| Packaging Method | cartons 436 mm × 436 mm × 222 mm (17.17" × 17.17" × 8.74") |
| Packaging Dimensions | (L × W × H) |
| Transport Package | 470 mm × 470 mm × 470 mm (18.50" × 18.50" × 18.50") (L × W × H) |
| Net Weight | 11.7 kg ± 0.6 kg (25.79 lb ± 1.32 lb) |
| Gross Weight | 12.7 kg ± 0.6 kg (28.00 lb ± 1.32 lb) |
| Compliance Standard | |
| Compliance Standard | YD/T 3296.2-2018,NSI/TIA 568.2-D |
| Ordering Information | |
| Type | Model Description 305m Outdoor U/UTP CAT6 |
| Network Cable | Network Cable (Black, PE DH-PFM920-6U sheath) |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
