Cavo di rete U/UTP CAT6 bianco da 50 m, conduttori in CCA (alluminio ramato), guaina esterna in PVC, classe di reazione al fuoco CPR Eca (EN 50575), prova di propagazione della fiamma IEC 60332-2-2, dati e alimentazione PoE su un unico cavo, resistenza a trazione guaina ≥13.5 MPa e isolante ≥16 MPa, raggio di curvatura >8 volte il diametro, temperatura di esercizio -20~+60 °C, temperatura di installazione 0~+50 °C
| Mechanical | |
| Tensile Strength | Sheath ≥13.5 MPa, insulation ≥16 MPa |
| Elongation at Break | Sheath ≥150%, insulation ≥300% |
| Installation Bending Radius | >8 times of outer cable diameter |
| Conductor Elongation at | ≥8% |
| Environmental | |
| Shrinkage of Insulation | ≤5% |
| Color Migration Resistance | No migration |
| Elongation at Break after | ≥12.5 MPa, ≥125% |
| Low Temperature Bending | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Storage Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Storage Humidity | <60% (RH) |
| Security | |
| Vertical Flame Test | IEC 60332-2-2 |
| Packaging | |
| Cable Length | 305 m ± 2 m (1,000.66 ft ± 6.56 ft) 305 m (1,000.66 ft) a carton, one carton with 2 inner |
| Packaging Method | cartons 394 mm × 394 mm × 253 mm (15.51" × 15.51" × 9.96") |
| Packaging Dimensions | (L × W × H) |
| Transport Package | 527 mm × 415 mm × 424 mm (20.75" × 16.34" × |
| Dimensions | 16.69") (L × W × H) |
| Net Weight | 9.5 kg ± 0.5 kg (20.94 lb ± 1.10 lb) |
| Gross Weight | 10.5 kg ± 0.5 kg (23.15 lb ± 1.10 lb) |
| Compliance Standard | |
| Compliance Standard | Q/DXJ 067-2024 |
| Flame-Retardant Standard | |
| Compliance Standard | EN 50575 Eca |
| Ordering Information | |

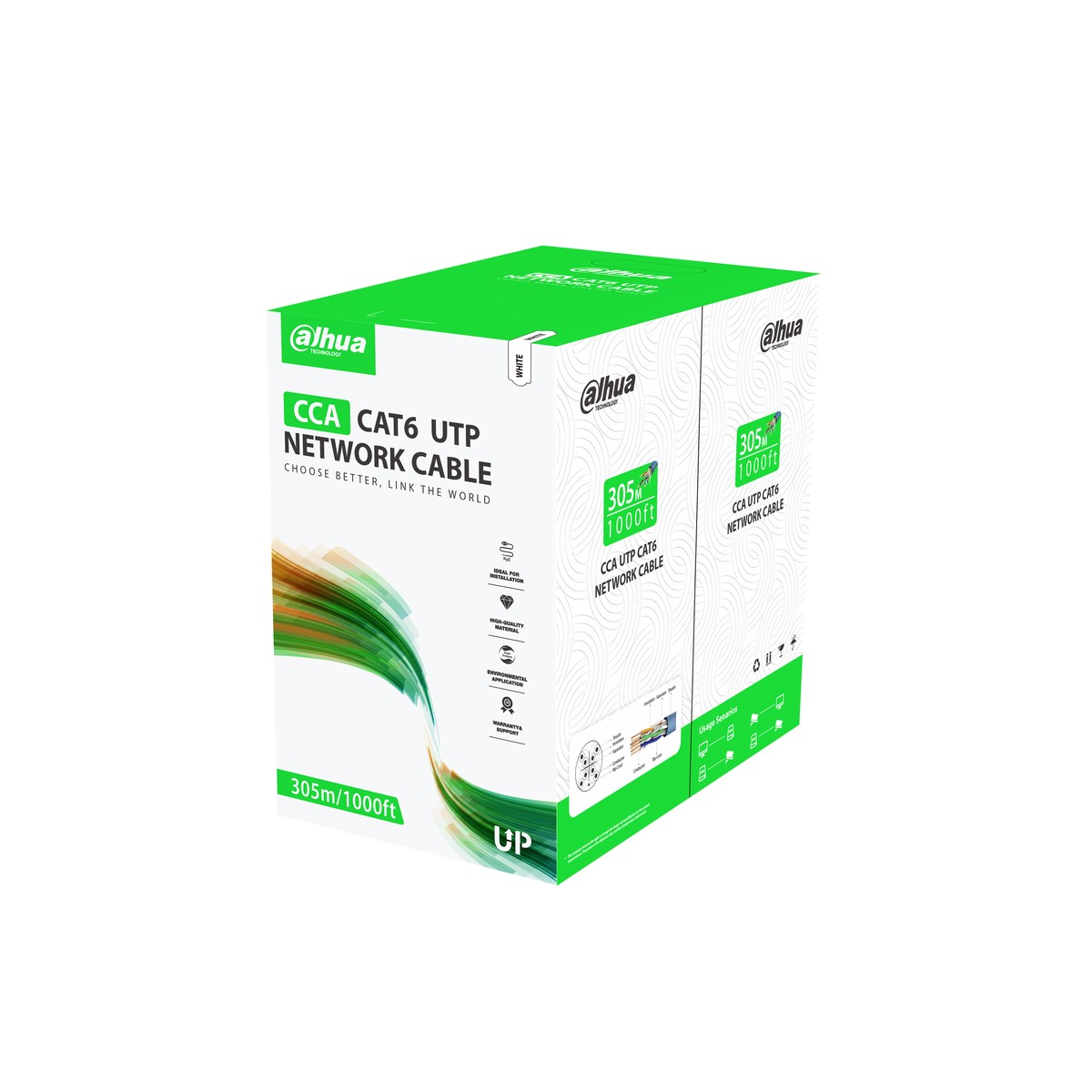

| Type | Model Description 305m U/UTP CAT6 Network |
| Network Cable | DH-PFM922I-6UN-C Cable (White,CCA,CPR Eca) |
