Cavo di rete F/UTP CAT6 bianco in matassa da 305 m, conduttori in rame puro privo di ossigeno (OFC), guaina esterna LSZH (bassa emissione di fumi, zero alogeni), classe di reazione al fuoco CPR Dca, prove EN 50399, EN 60332-1-2, EN 61034-2 ed EN 60754-2, dati e alimentazione PoE su un unico cavo, resistenza DC max 8.7 Ω/100 m, impedenza 100 Ω ±15 Ω, NEXT ≥39.3 dB/100 m a 250 MHz, attenuazione max 34.8 dB/100 m a 250 MHz, return loss ≥17.3 dB/100 m, raggio di curvatura >8 volte il diametro, temperatura di esercizio -20~+60 °C, peso netto 12 kg
Datasheet
Manuali
| Electrical | |
| Max. DC Resistance of a | 8.7 Ω/100 m |
| Min. Insulation Resistance | 5000 MΩ·km |
| Max. DC Resistance | 2% (pair intra), 4% (pairs inter) |
| Dielectric Strength | No breakdown with 1kV DC for 1 min |
| Transmission | |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| Near-end Crosstalk | ≥39.30 dB/100 m@250 MHz |
| Max. Attenuation | 34.8 dB/100 m@250 MHz |
| Return Loss | ≥17.3 dB/100 m@250 MHz |
| Mechanical | |
| Tensile Strength | Sheath≥10 MPa, insulation≥16 Mpa |
| Elongation at Break | Sheath≥125%, insulation≥300% |
| Installation Bending Radius | >8 times of outer cable diameter |
| Conductor Elongation at | ≥10% |
| Environmental | |
| Shrinkage of Insulation | ≤5% |
| Color Migration Resistance | No migration |
| Elongation at Break after | ≥8 MPa, ≥100% |
| Low Temperature Bending | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Storage Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Storage Humidity | <60% (RH) |
| Security | |
| Vertical Flame Test | EN 50399; EN 60332-1-2; EN 61034-2; EN 60754-2 |
| Packaging | |
| Cable Length | 305.0 m± 2 m (1,000.66 ft ± 6.56 ft) |
| Packaging Method | 305 m/box 436 mm × 436 mm × 222 mm (17.17" × 17.17" × 8.74") |
| Packaging Dimensions | (L × W × H) |
| Transport Package | 470 mm × 470 mm × 470 mm (18.5" × 118.5" × 18.5") (L × W × H) |
| Net Weight | 12.00 kg ± 0.50 kg (26.46 lb ± 1.10 lb) |
| Gross Weight | 13.00 kg ± 0.50 kg (28.66 lb ± 1.10 lb) |
| Flame-Retardant Standard | |
| Compliance Standard | EN50575 |
| Ordering Information | |

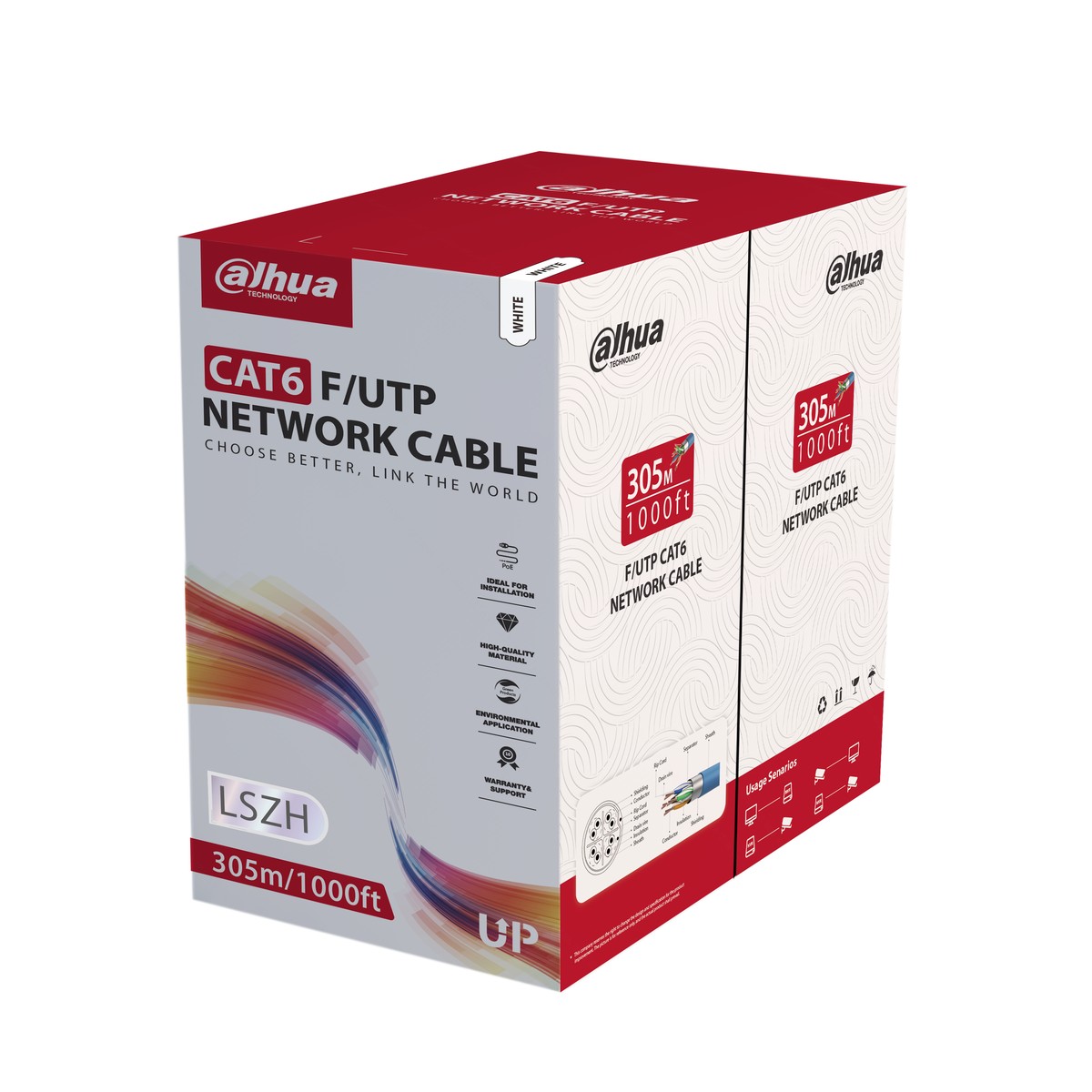

| Type | Model Description 305m F/UTP CAT6 Network |
| Network Cable | DH-PFM923I-6FN-CD Cable (White,LSZH,CPR Dca) |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
