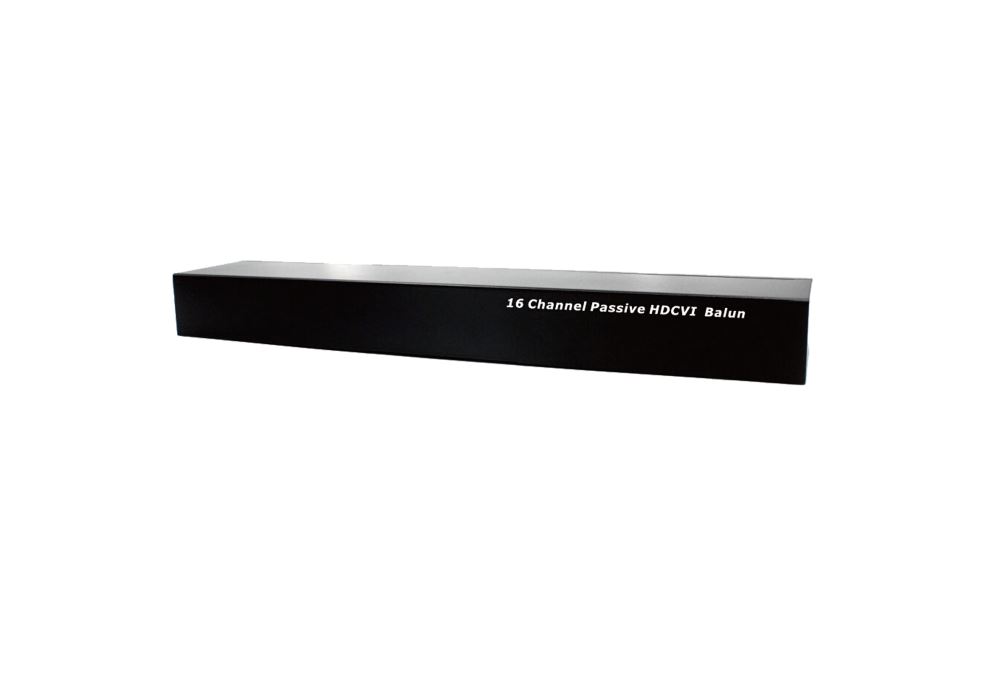

Balun video passivo HDCVI 16 canali su UTP per segnale video HDCVI/AHD/TVI/CVBS, portata 400 m 720P / 250 m 1080P / 200 m a 4 MP
| Function | |
| Transmission Channel | 16 channels HDCVI: 720p: max.400 m (1,312.34 ft) |
| Transmission Distance | 1080p: max.250 m (820.21 ft) 4 MP: max.200 m (656.17 ft) |
| Resolution | 720p/1080p/4 MP |
| Video Format | HDCVI/TVI/AHD/CVBS |
| Anti-interference | >60 dB |
| Transmission Signal | 1-ch HDCVI/TVI/AHD/CVBS |
| Transmission Media | UTP CAT5E/6 Coaxial cable: 75 Ω |
| Impedance | Twisted pair: 100 Ω |
| Port | |
| Video Port | Female BNC |
| Protection | |
| Protection | 3 level 1a Contact discharge: 3 level |
| Electrostatic Discharge | 1b air discharge 3 level Applicable standard: IEC61000-4-2 1 kV (Differentiate mode), 2 kV (Common mode) |
| Surge Protection Grade | Applicable standard: IEC61000-4-5 |
| Structure | |
| Appearance Color | Black |
| Casing Material | Iron |
| Product Dimensions | × W × H) 525 mm × 145 mm × 33 mm (20.67" × 5.71" × 1.3") (L × |
| Packaging Dimensions | W × H) |
| Packaging Method | 1 in one box and 10 boxes in 1 outer carton |
| Net Weight | 1.19 kg (2.62 lb) |
| Gross Weight | 1.62 kg (3.57 lb) |
| Environment | |
| Operating Temperature | –10 °C to +55 °C (–4 °F to +131 °F) |
| Operating Humidity | 0–95% |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity | 0–95% |
| Ordering Information | |
| Type | Model Description 16-Channel Passive HDCVI |
| HDCVI balun | PFM809-4MP Balun |
