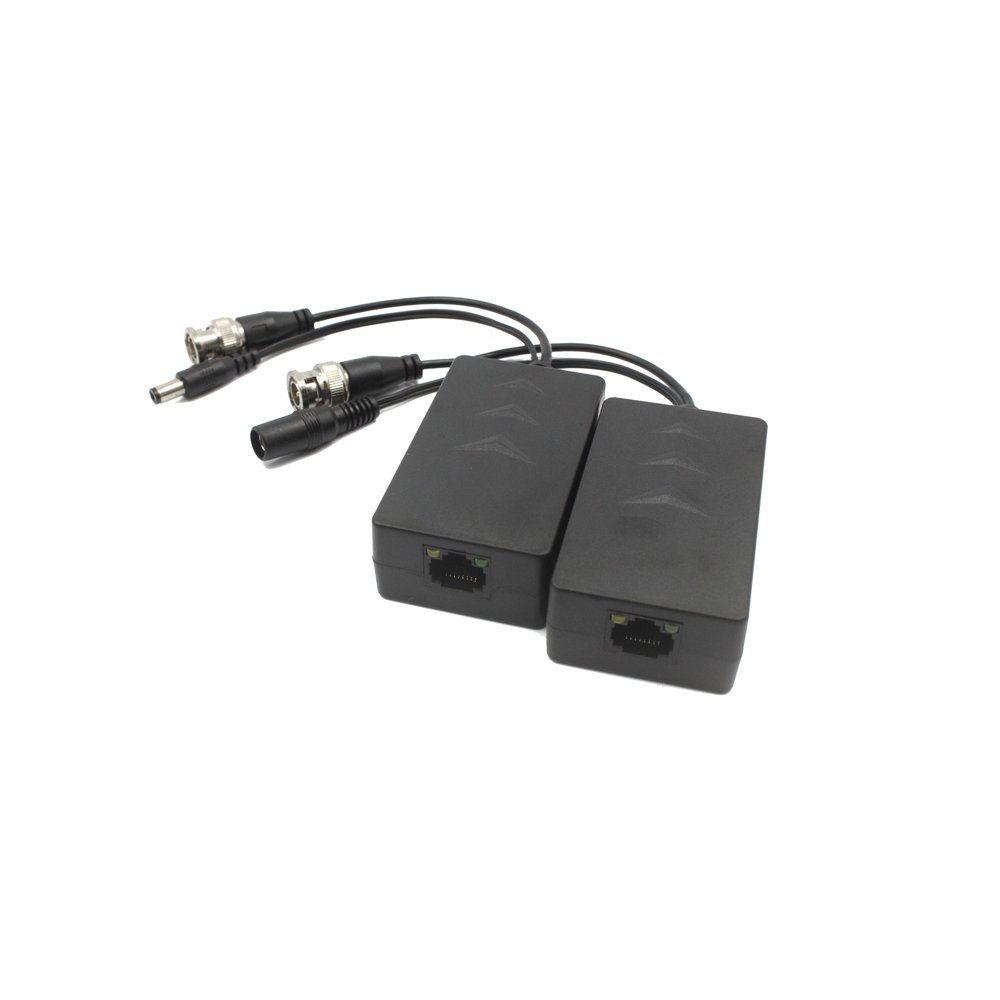

Confezione da 10 coppie balun video passivi HDCVI con alimentazione
| Function | |
| Transmission | 1 channel |
| Channel | HDCVI: 720p: max. 400 m (1,312.34 ft) |
| Transmission | 1080p: max. 200 m (656.17 ft) |
| Distance | HDTVI: 720p/1080p: 200 m (656.17 ft) (max) AHD: 720p, 300 m (984.25 ft); 1080p, 200 m (656.17 ft) |
| Resolution | 720p/1080p |
| Video Format | HDCVI/TVI/AHD |
| Anti- | >60 dB |
| Transmission | 1-ch analog HD video |
| Transmission | UTP CAT5E and CAT6 |
| Media | Coaxial cable: 75 Ω |
| Impedance | Twisted pair: 100 Ω |
| Power | |
| Video Port | RJ-45 |
| Power | |
| Power Supply | ft–984.25 ft), Output Power: 12 VDC, 3 W; Input Voltage: 36 VDC, Distance: 0 m–300 m (0 ft–984.25 ft), Output Power: 12 VDC, 8 W |
| Protection | |
| Protection | Level 3 1a Contact Discharge: Level 3 |
| Electrostatic | 1b Air Discharge: Level 3 |
| Discharge | Compliance Standard: IEC 61000-4-2 |
| Surge Protection | 2 kV (Common mode) |
| Grade | Compliance Standard: IEC 61000-4-2 |
| Structure | |
| Appearance | Black |
| Casing Material | ABS project material |
| Product | 230.0 mm × 42.5 mm × 24.5 mm (9.06" × 1.67" × 0.96") (L × W × H) |
| Packaging | 430 mm × 125 mm × 155 mm (16.93" × 4.92" × 6.10") (L × W × H) |
| Packaging | 10 pcs in 1 carton, and 10 cartons in 1 package |
| Net Weight | 1400 g (3.09 lb) |
| Gross Weight | 1.66 kg (3.66 lb) |
| Ordering Information | |
| Type | Model Descriptions 1-Channel Passive HDCVI Balun |
| HDCVI Balun | PFM801-4MP with Power (10pcs/box) |
| Dimensions (Mm[Inch]) | |
| 42.5 [1.67] | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
