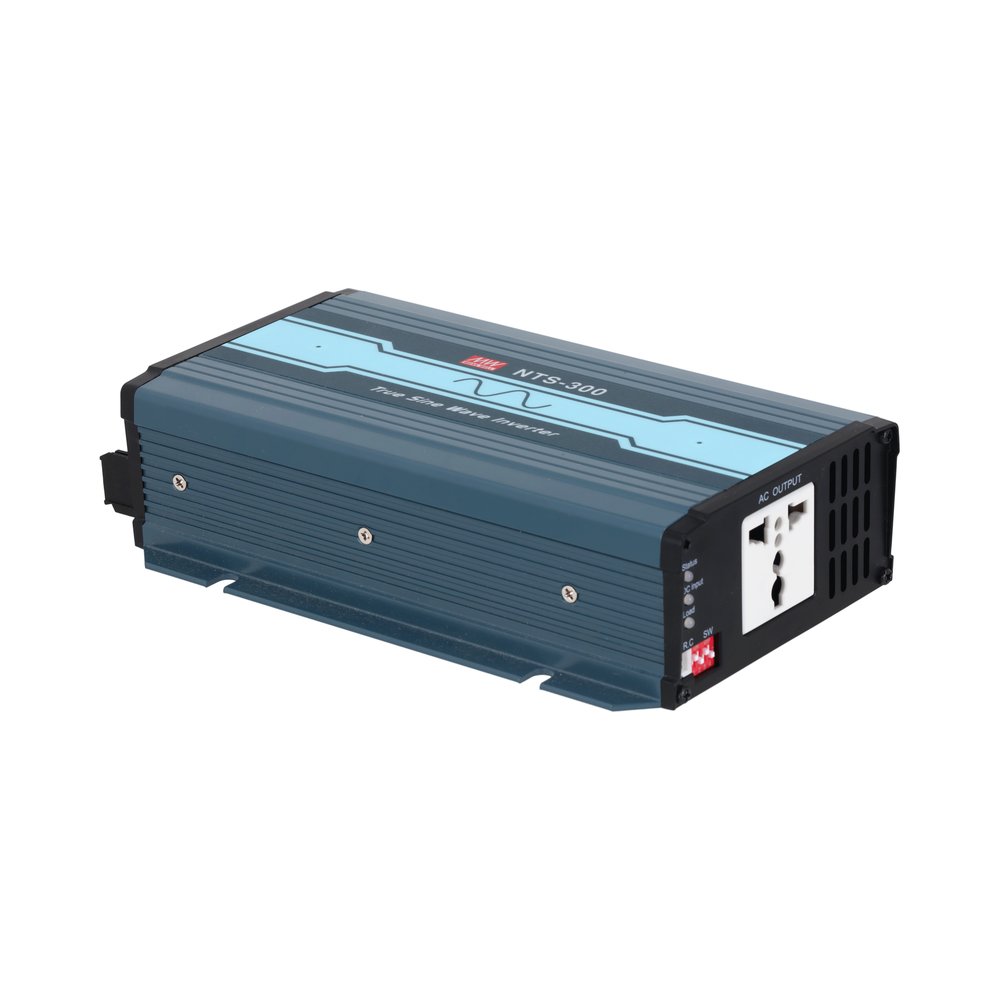

Inverter specifico per sistemi a energia solare, potenza nominale 300 W, intervallo di tensione 10~16.5 Vdc
Datasheet
| AC Output Rated Power | 300 W |
| AC Output Waveform | Pure sine wave |
| AC Output Frequency | 50/60 Hz, can be adjusted by configuring button 200/220/230/240 V, can be adjusted by configuring |
| AC Output Alternating Voltage | button |
| DC Input Direct Voltage | 12 V |
| DC Input Direct Current | 30 A |
| DC Input Frequency | 92% |
| DC Input Battery Type | Lead-acid Battery, Lithium Battery |
| EMC | CLASS A |
| Safety Performance | |
| Battery Low Voltage Alarm | 11 ± 1 VDC |
| Battery Low Voltage Shutdown | 10 ± 1 VDC |
| Battery High Voltage Alarm | 15.5 ± 1 VDC |
| Battery High Voltage Shutdown | 16.5 ± 1 VDC |
| Battery Reverse Polarity | Yes |
| Overtemperature Protection | Yes |
| Output Short Circuit Protection | Yes |
| Output Overvoltage Protection | Yes |
| Packaging Dimensions | 4.33") (L × W × H) |
| Operating Temperature | –25°C to +65°C (–13 °F to +149 °F) |
| Operating Humidity | 20%–90% (RH) (non-condensing) |
| Storage Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Storage Humidity | 10%–95% (RH) (non-condensing) |
| Accessory | 1 × user's manual |
