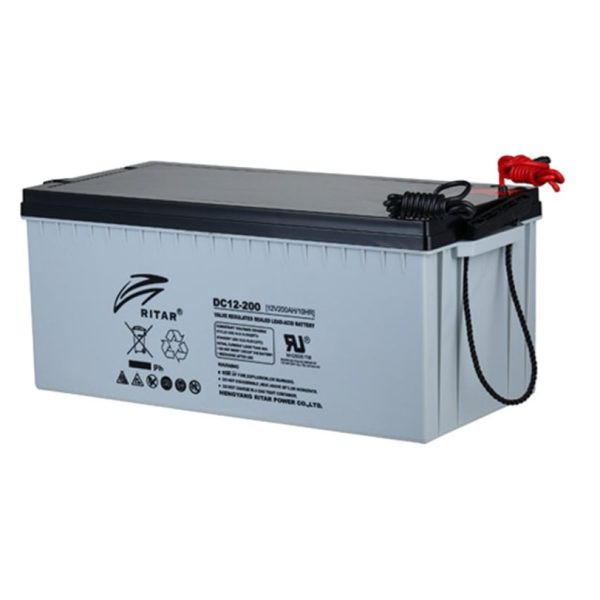

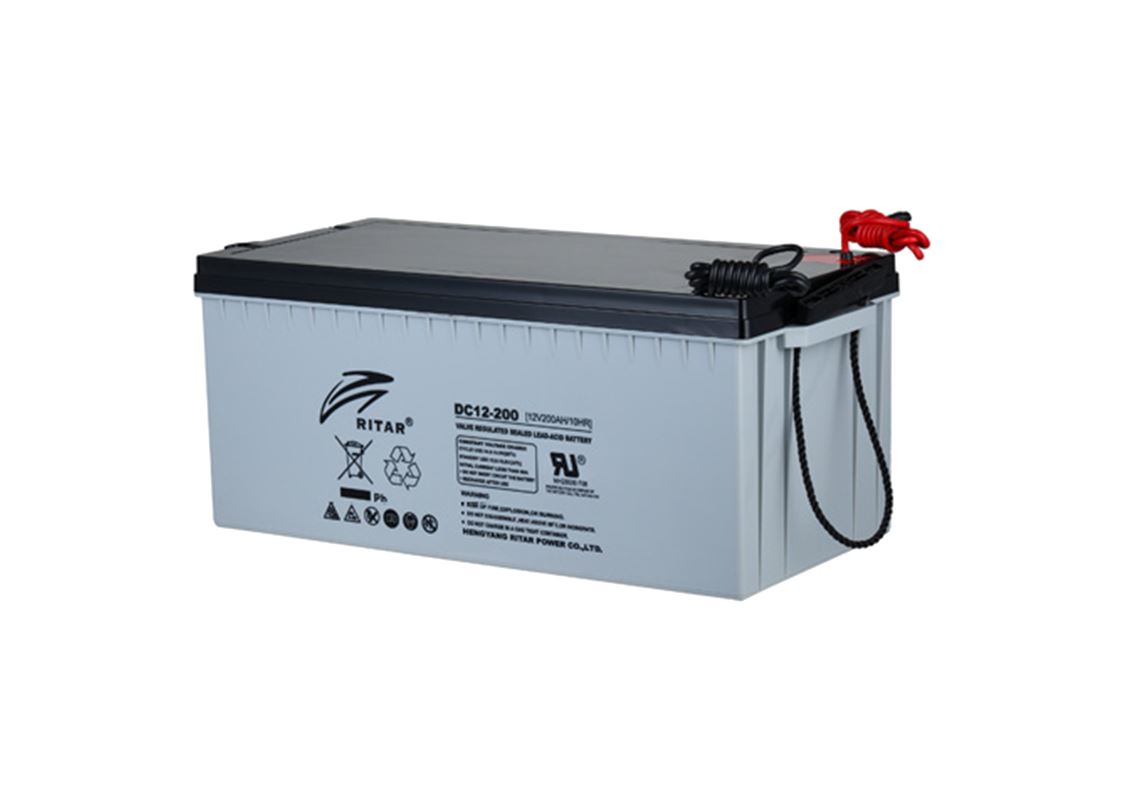

Batteria al gel 200 Ah
Datasheet
| Function | |
| Rated Voltage | 12V DC |
| Capacity (25°C/77°F, 20hr) | 212Ah 200Ah |
| Capacity (25°C/77°F, 5hr) | 174.5Ah |
| Capacity (25°C/77°F, 3hr) | 154.8Ah |
| Float Voltage (25°C/77°F) | 13.6V–13.8V DC 14.6V–14.8V DC |
| Max. Charging Current | 40A (0.2C) |
| Max. Discharging Current | 2000A (5 s) ≤3% discharge per month. It is recommended to |
| Self-discharge (25°C/77°F) | recharge the battery every 3 months. Do not exceed 6 months. |
| Internal Resistance | 4.5mΩ (fully charged at 25°C/77°F) |
| Design Life | 12 years with float charging |
| General | |
| Connection | Lead-out wire (6 mm², 1.0 m each) |
| Gross Weight | 58.4 kg (128.7 lb) |
| Environment | |
| Discharging Temperature | –20°C to +60°C (–40°F to +140°F) |
| Charging Temperature | 0°C to +50°C (+32°F to +122°F) |
| Operating Humidity | <95% (RH) |
| Recommended Storage | 0°C to +40°C (+32°F to +104°F) |
| Storage Temperature | <95% (RH) |
| Package Information | |
| 12V 200Ah lead acid battery | 1 pc |
| Ordering Information | |
| Type | Model Description |
| Lead Acid Battery | DC12-200 Valve-regulated Lead Acid battery 12V 200Ah |
